MTCC plots for Run 2567

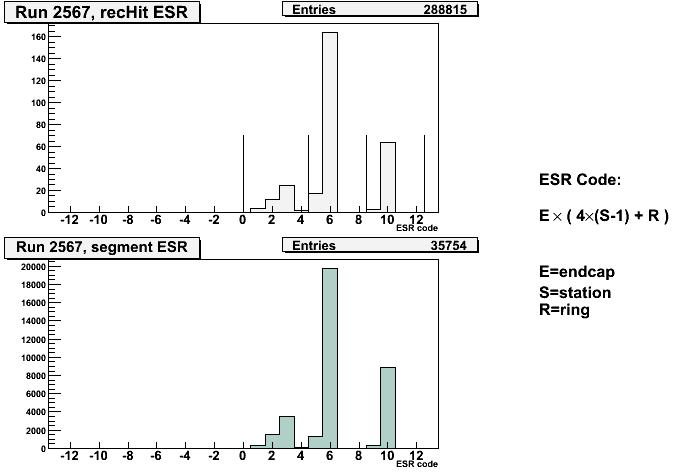

	gif	The ESR code which shows overall occupancies. Why is station 2 much higher than station 1? Trigger bias??

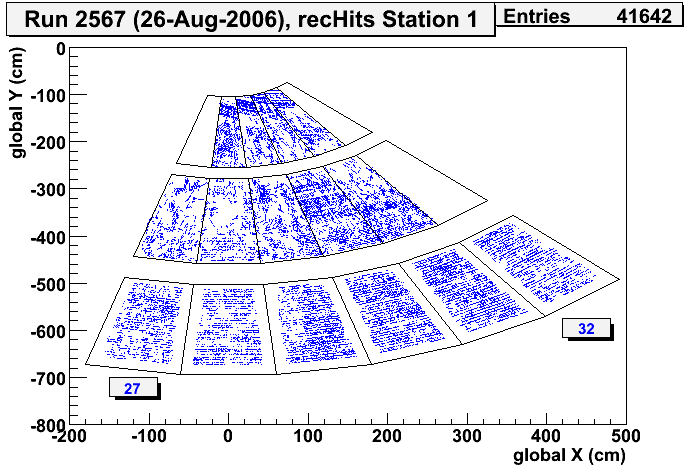

	gif	Station 1 recHits. Rather uneven in rings 1 and 2.
	gif	Station 2 recHits
	gif	Station 3 recHits (Pardon the incorrect drawing of ME3/1 boundaries.) Chambers 14 and 15 rather uneven.

station/ring	links to plots	comments

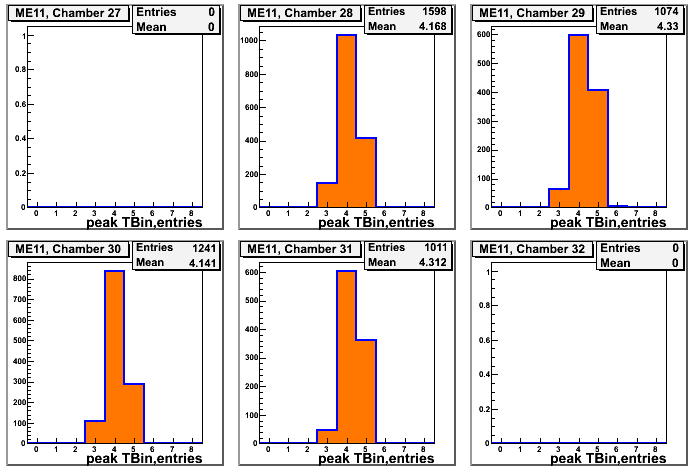

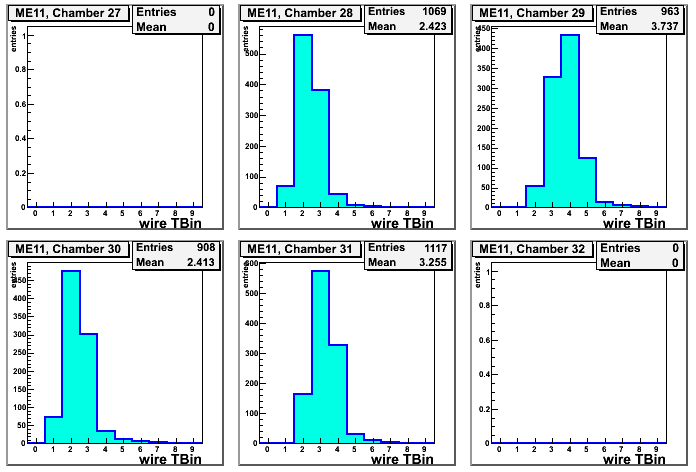

ME11	Wire Time Bins    strips peak Time	(Chambers 27&32 expected to be empty.)

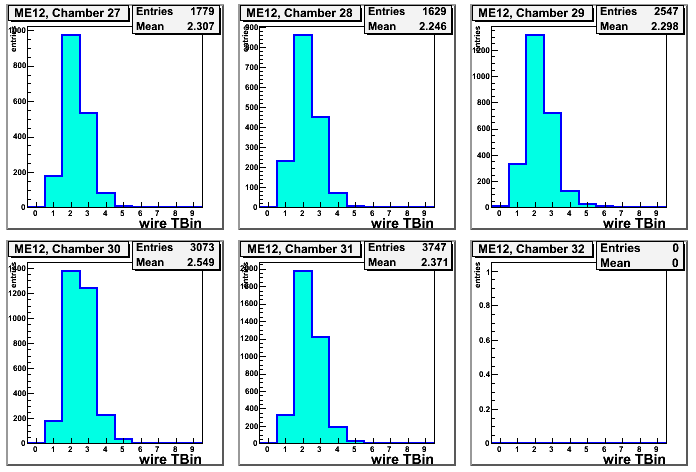

ME12	Wire Time Bins    strips peak Time	(Chamber 32 expected to be empty.)
ME13	Wire Time Bins    strips peak Time	OK

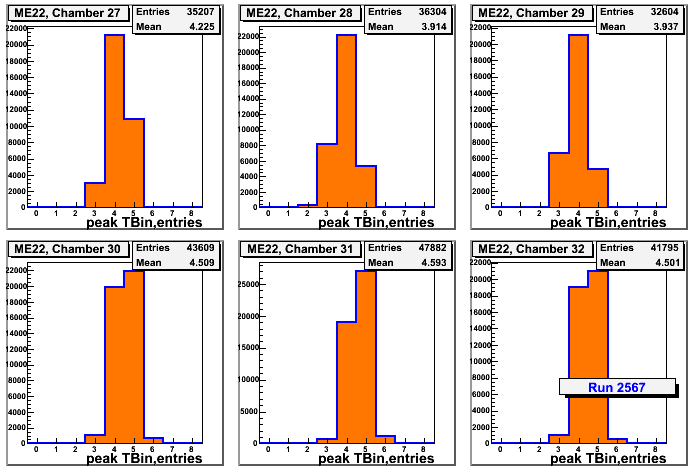

ME22	Wire Time Bins    strips peak Time	An earlier problem with entries in the 7th and 8th time bins is gone.

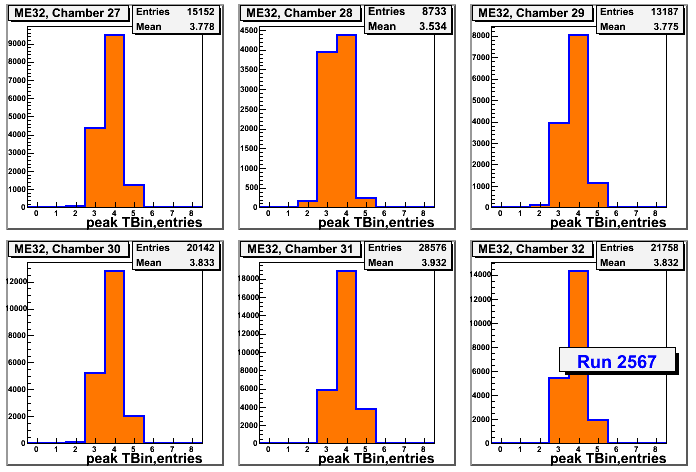

ME32	Wire Time Bins    strips peak Time	OK

chamber	links to plots	comments

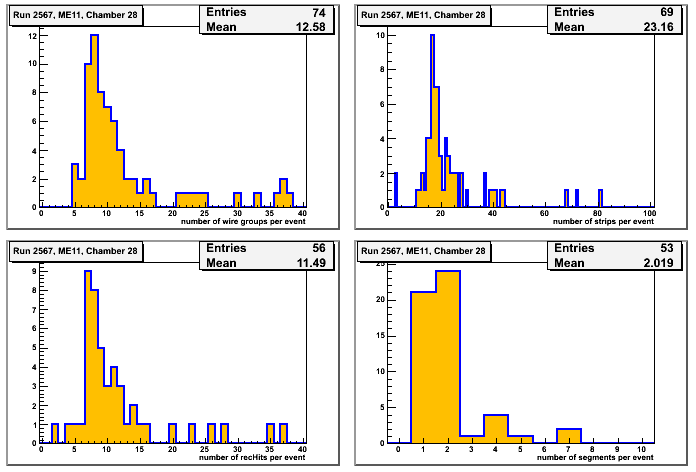

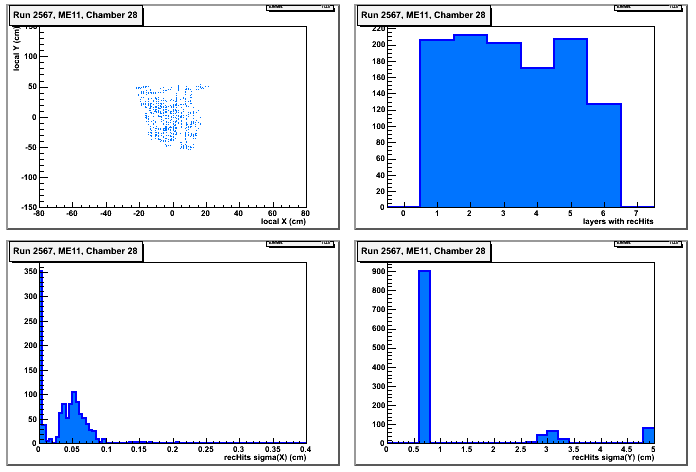

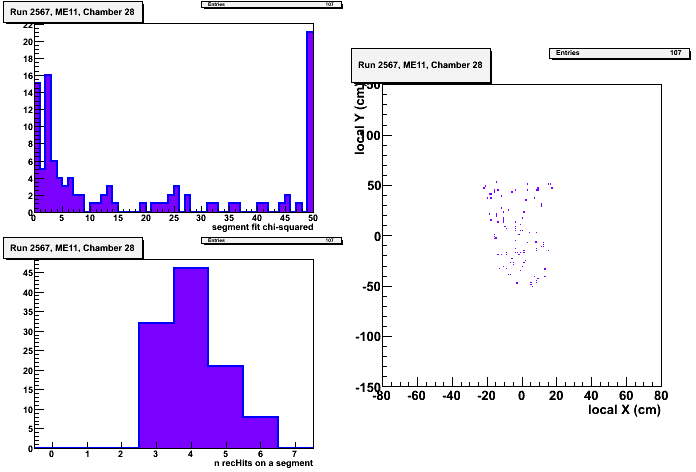

ME11 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

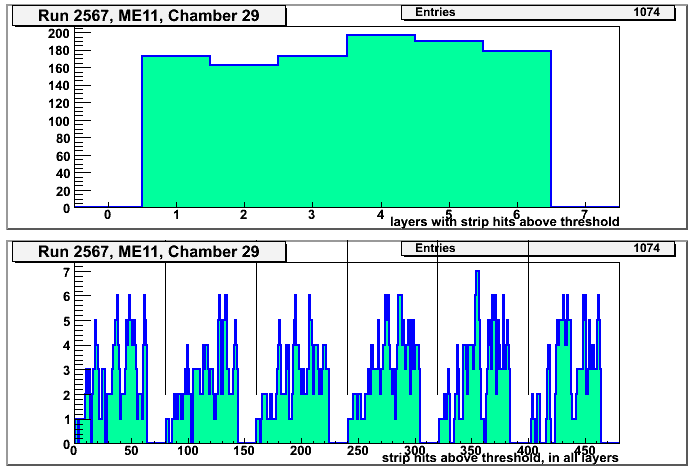

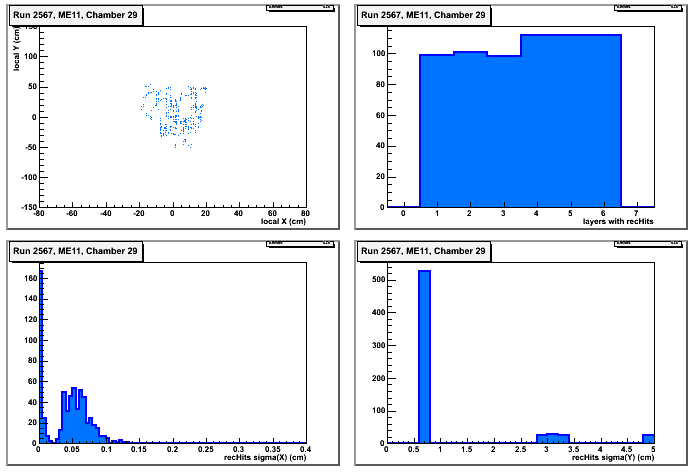

ME11 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

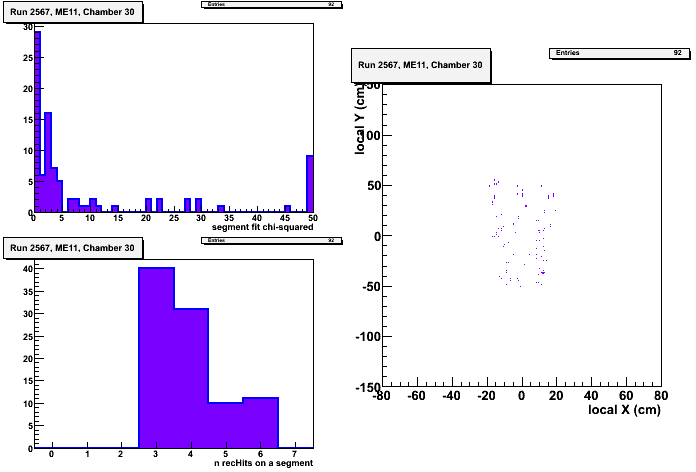

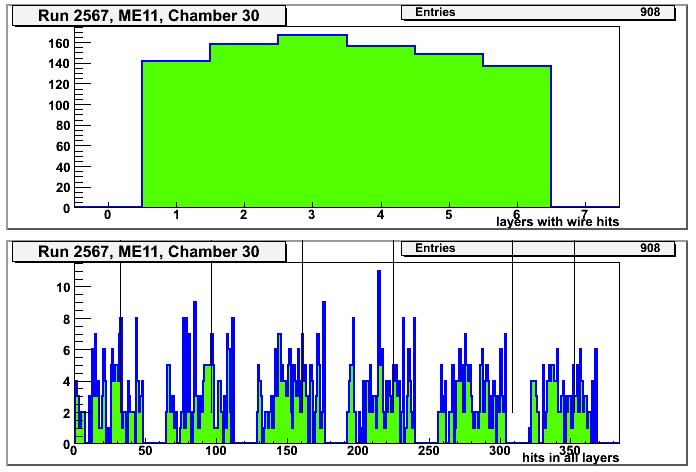

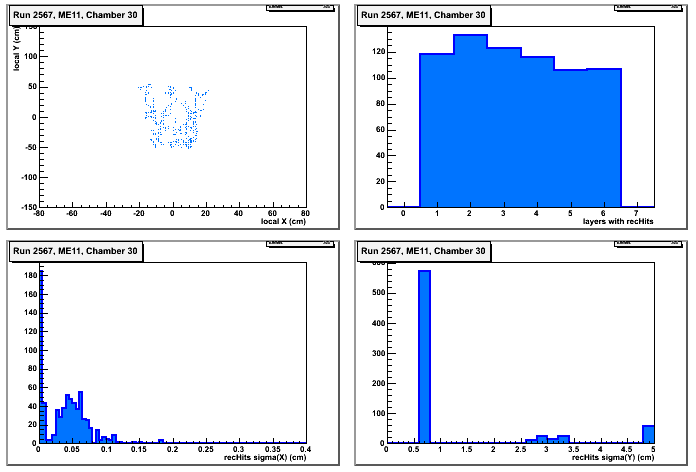

ME11 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

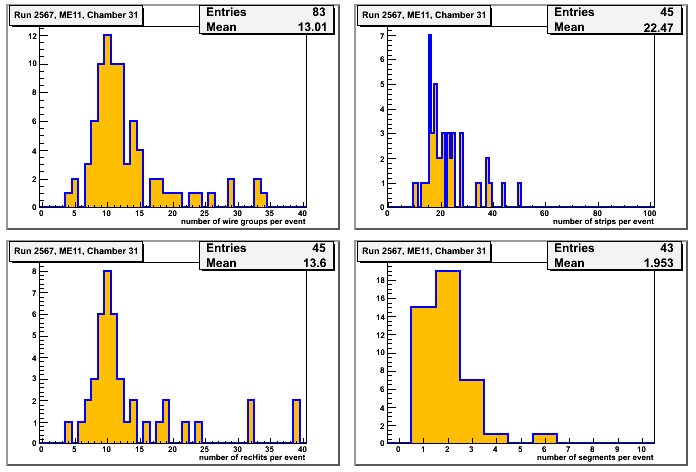

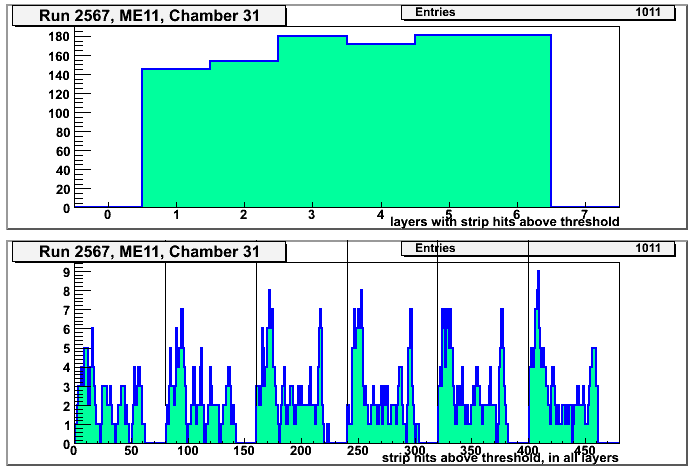

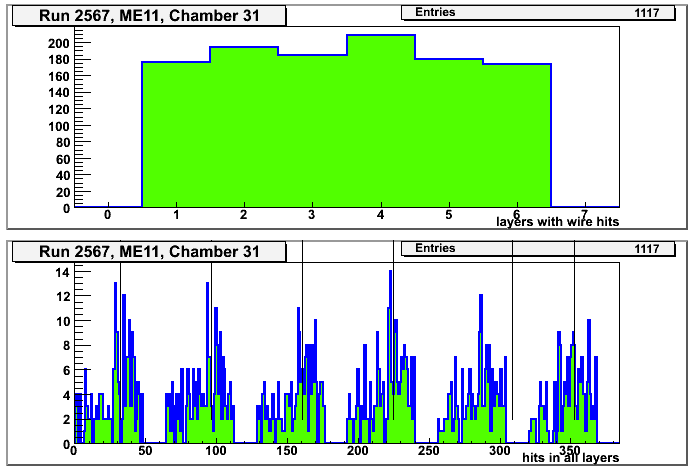

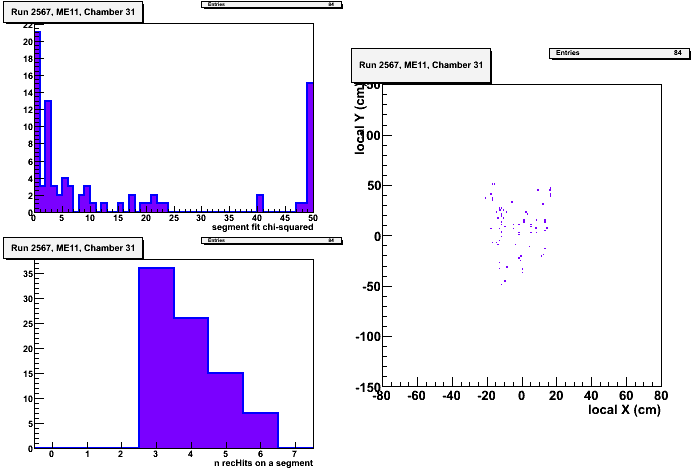

ME11 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

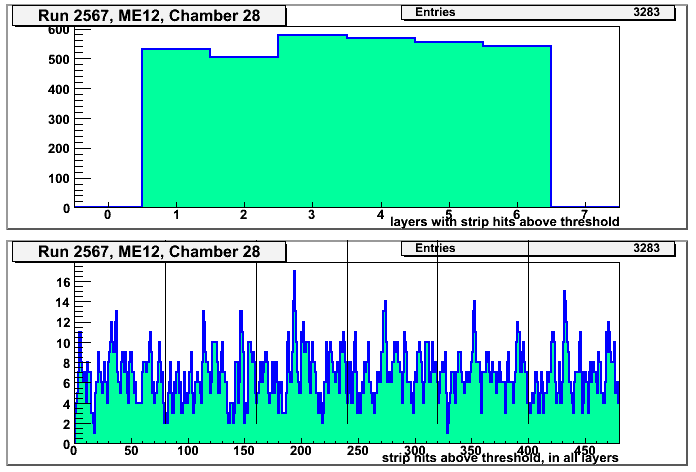

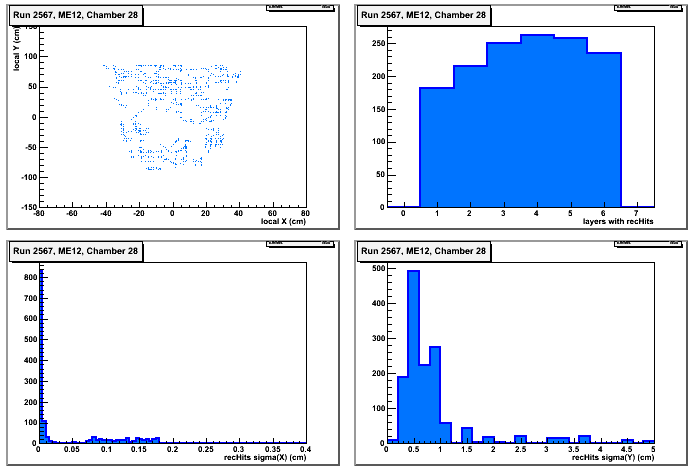

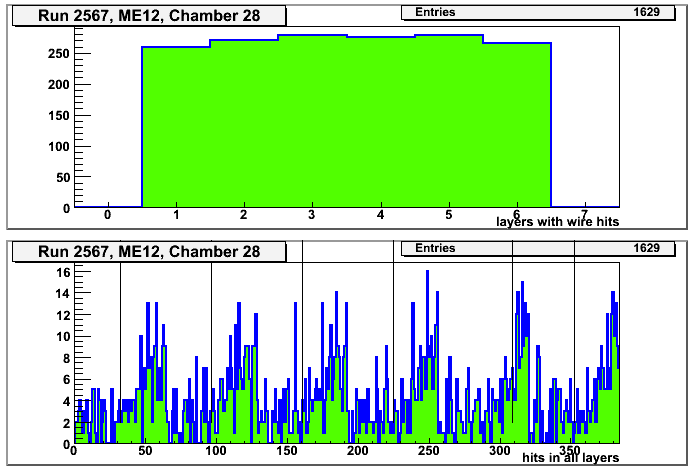

ME12 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

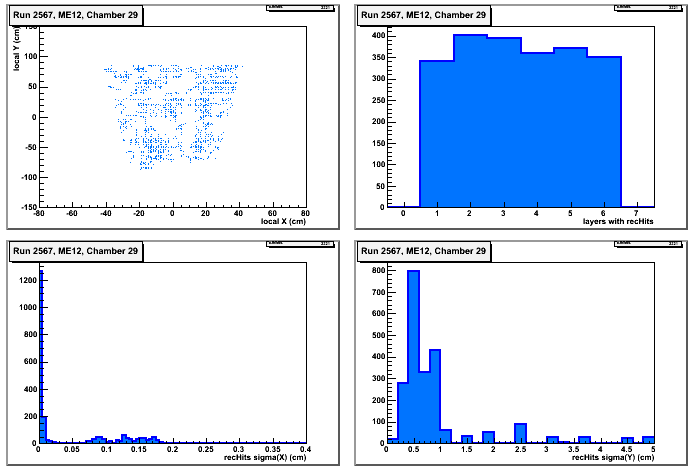

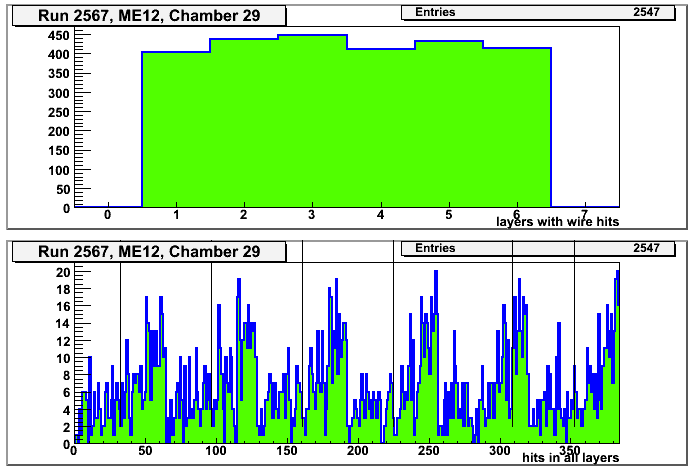

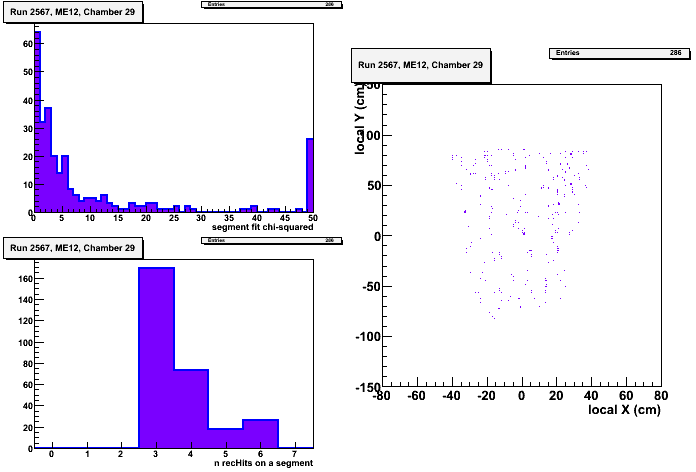

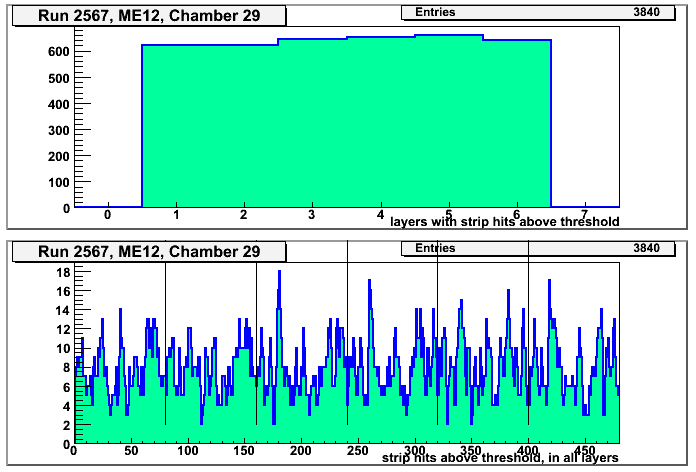

ME12 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

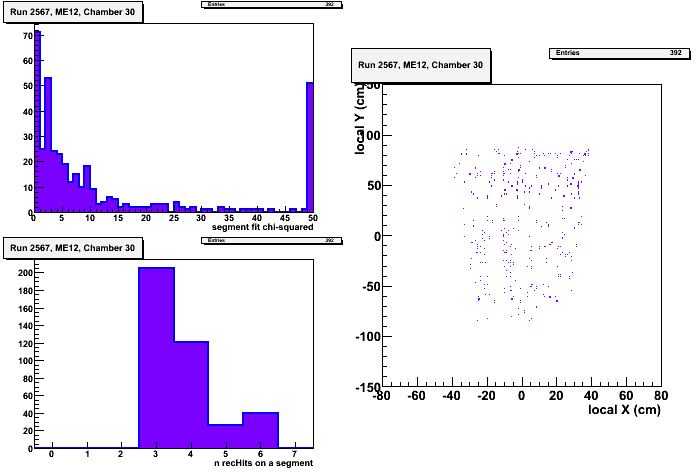

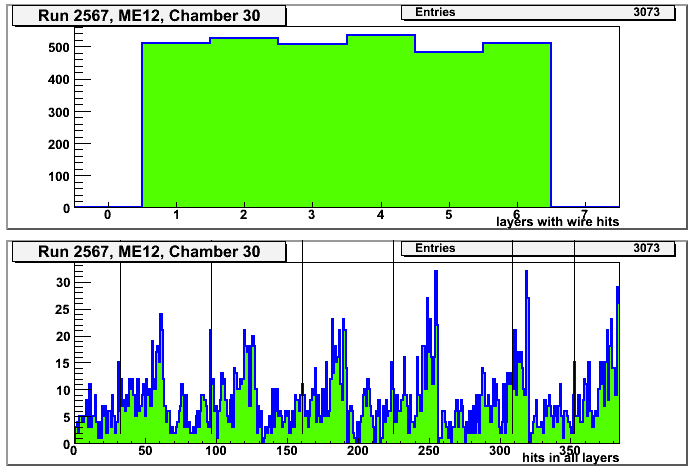

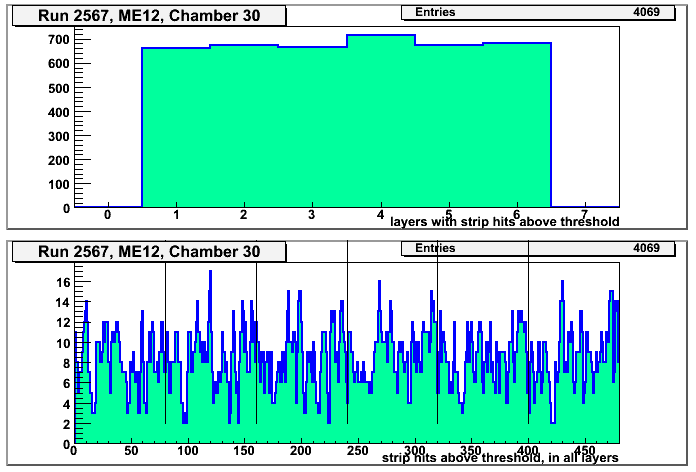

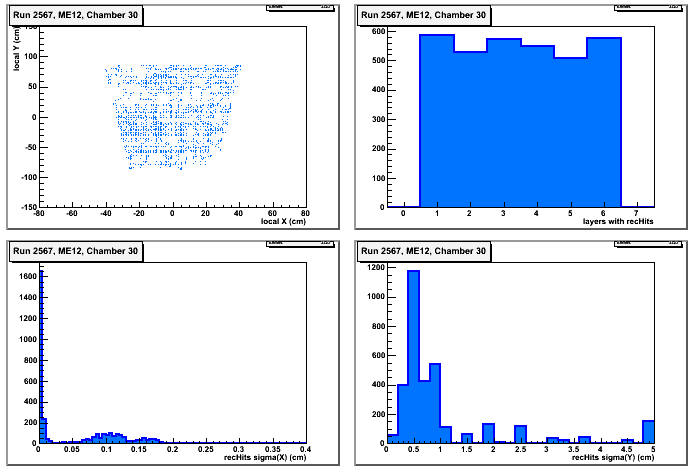

ME12 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

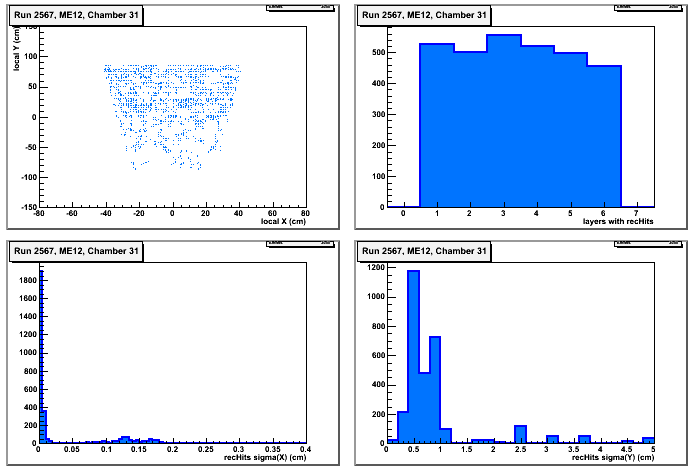

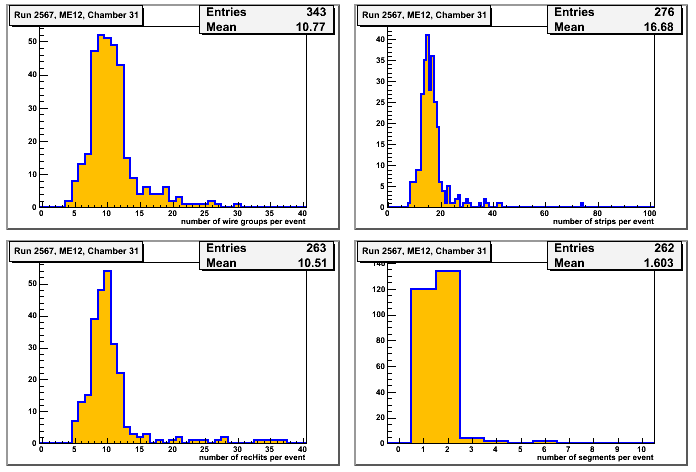

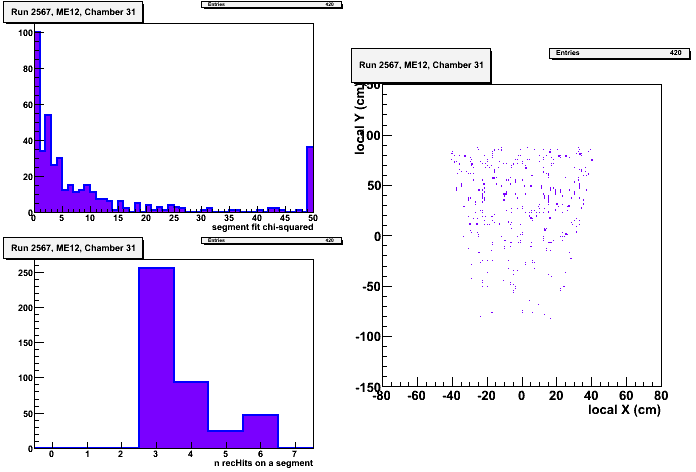

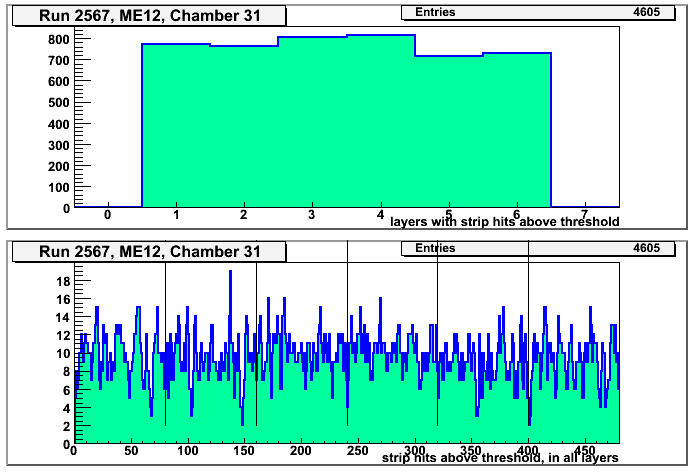

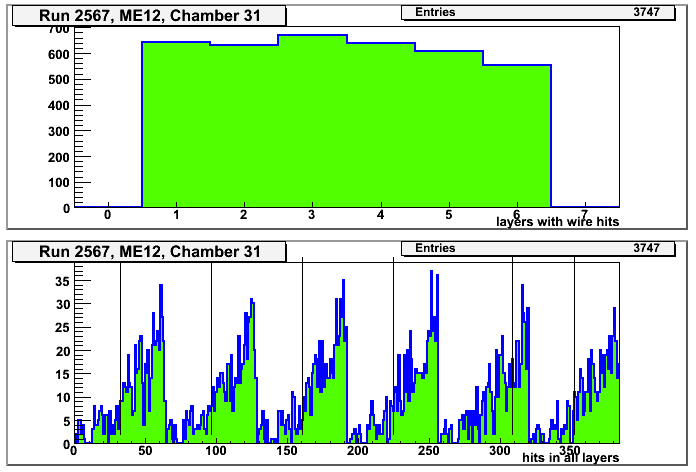

ME12 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

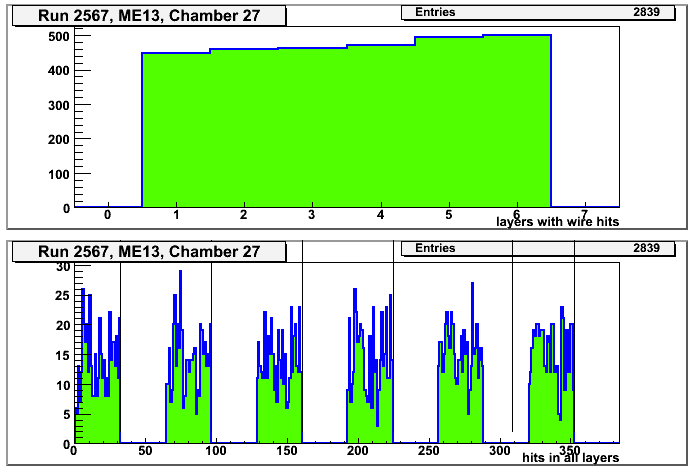

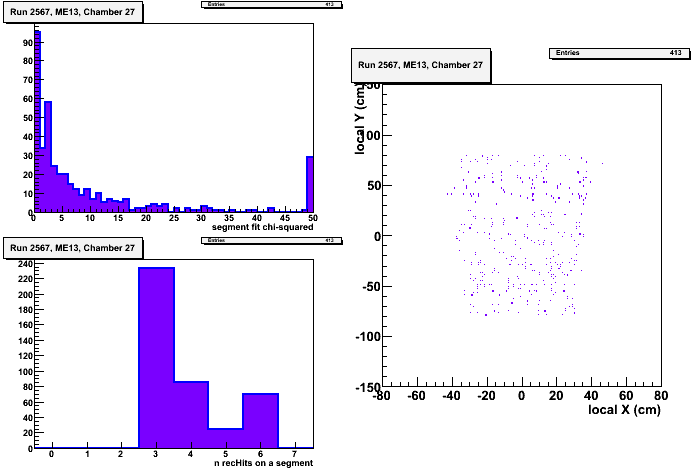

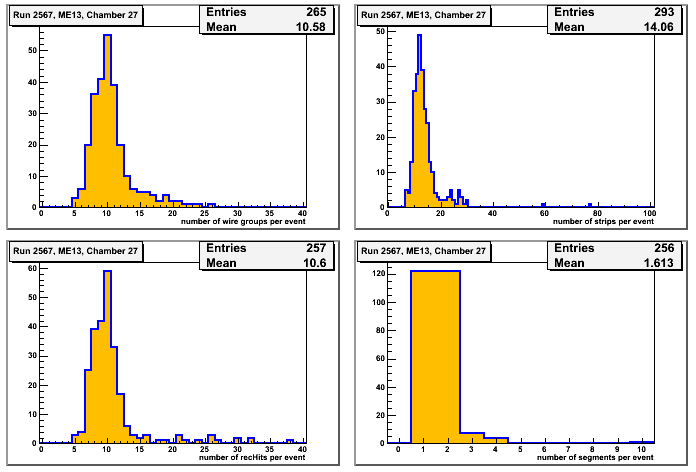

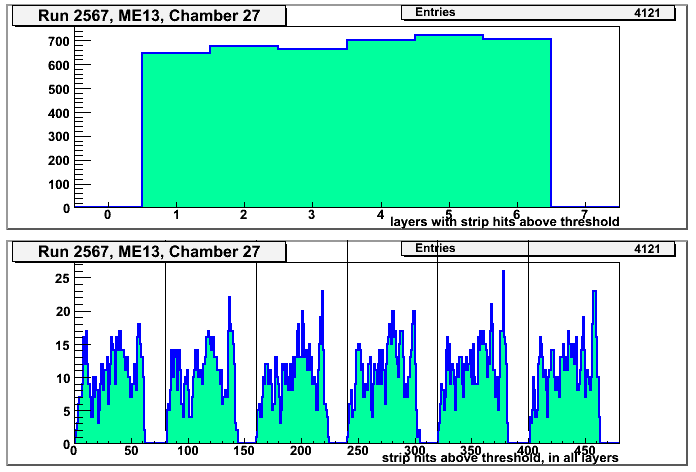

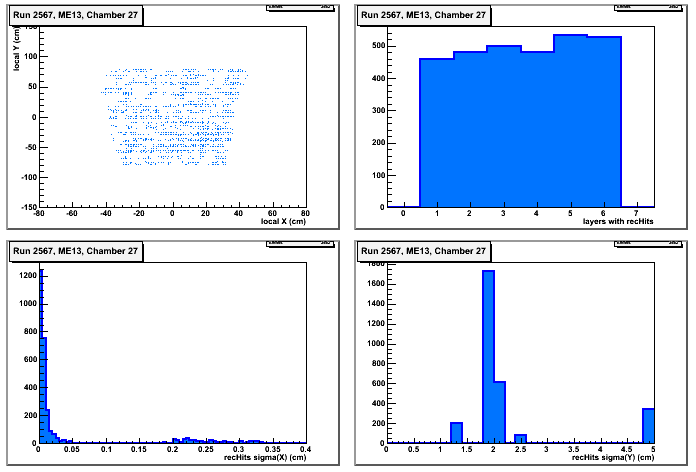

ME13 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

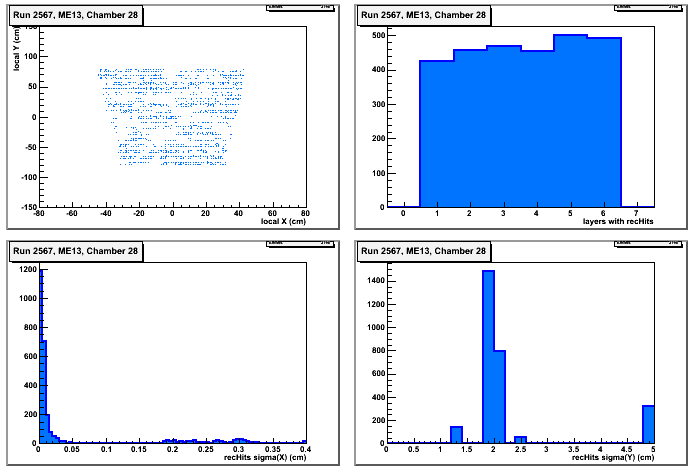

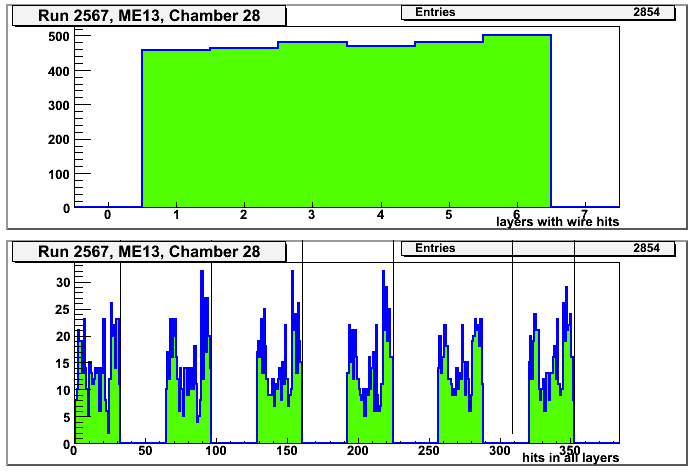

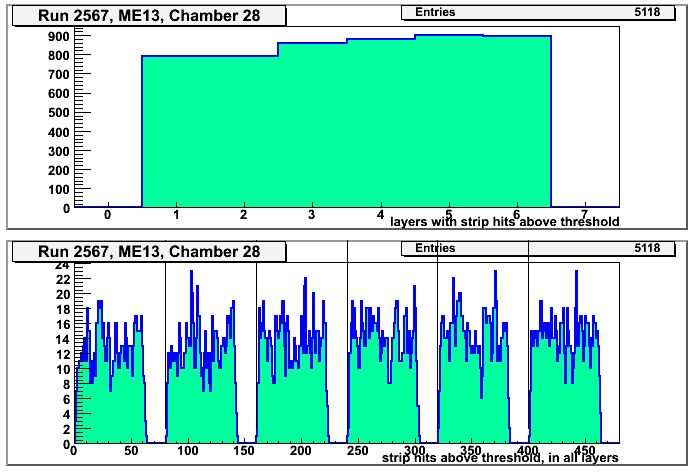

ME13 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

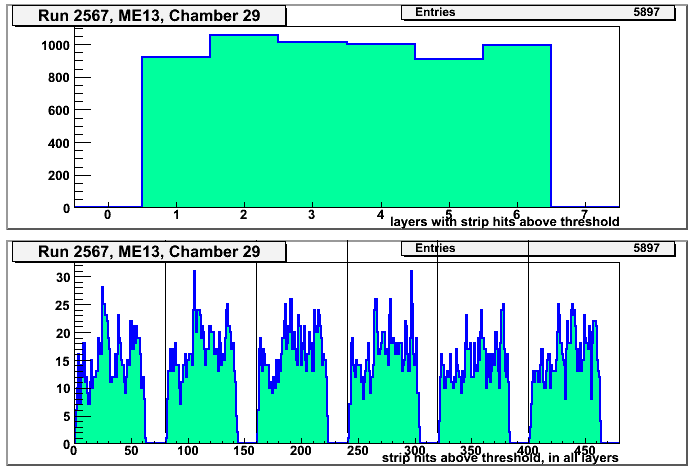

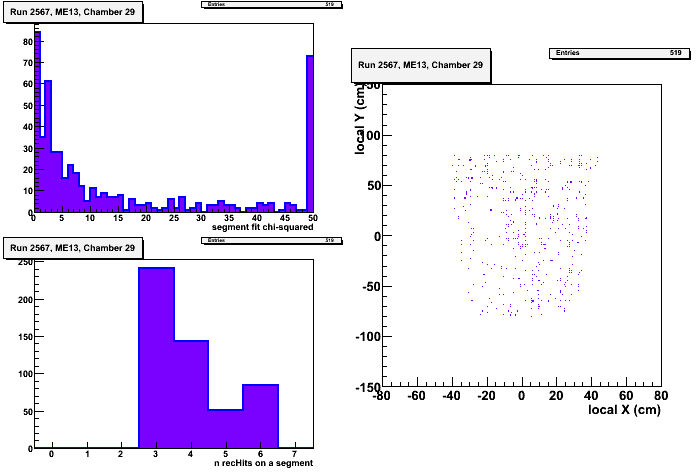

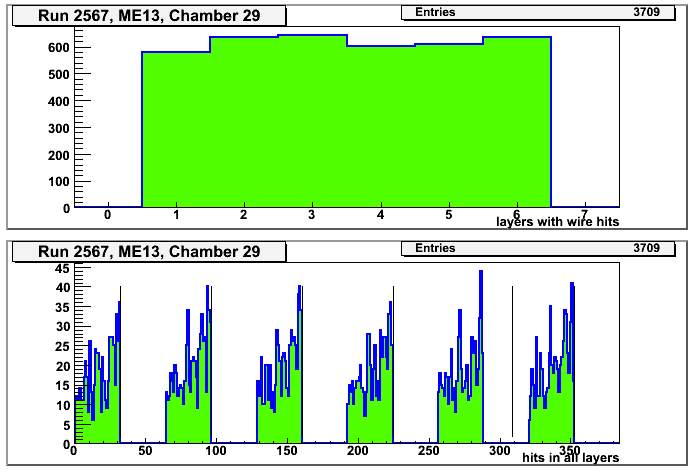

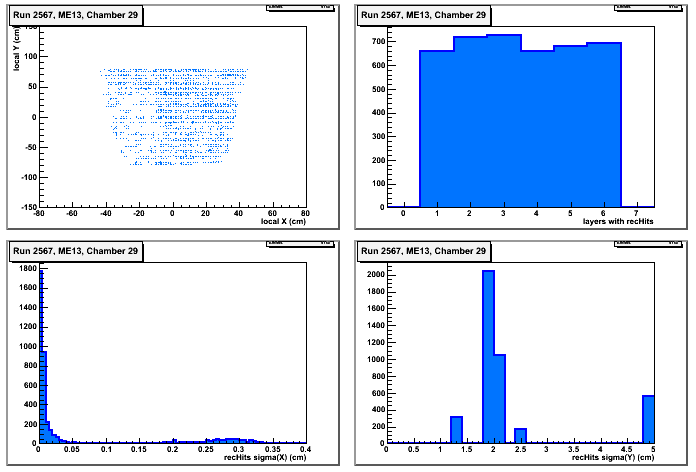

ME13 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

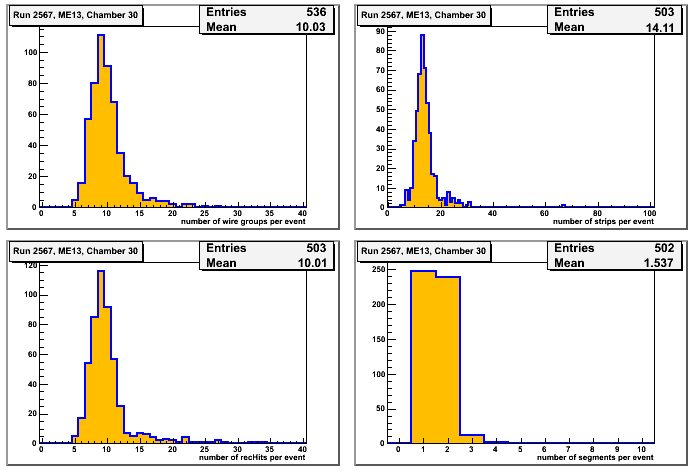

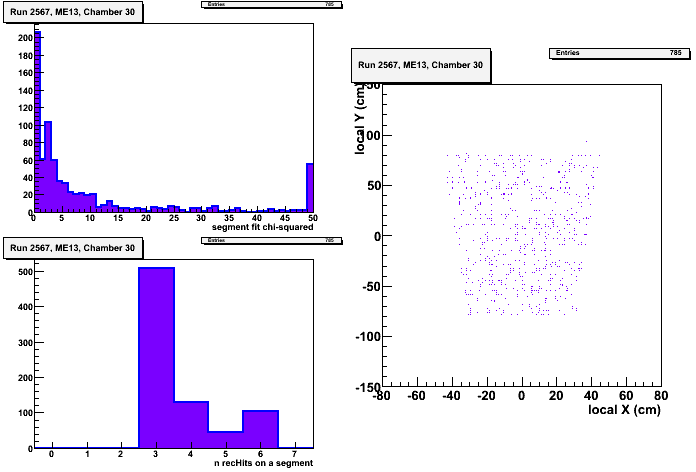

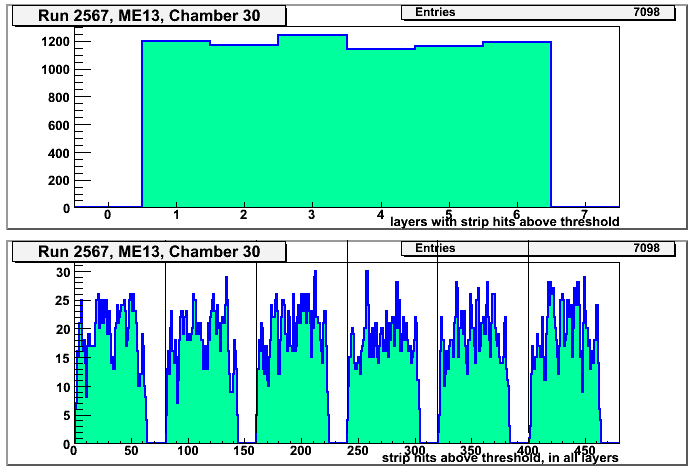

ME13 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

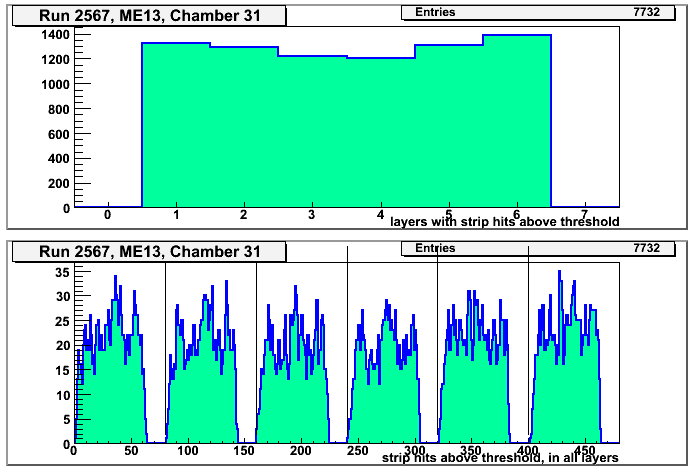

ME13 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

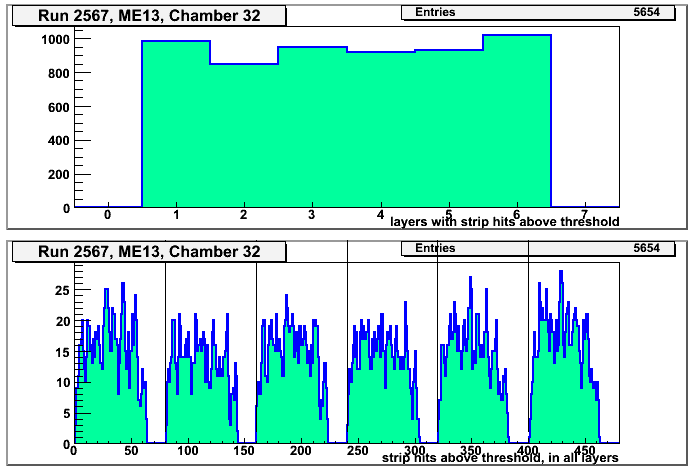

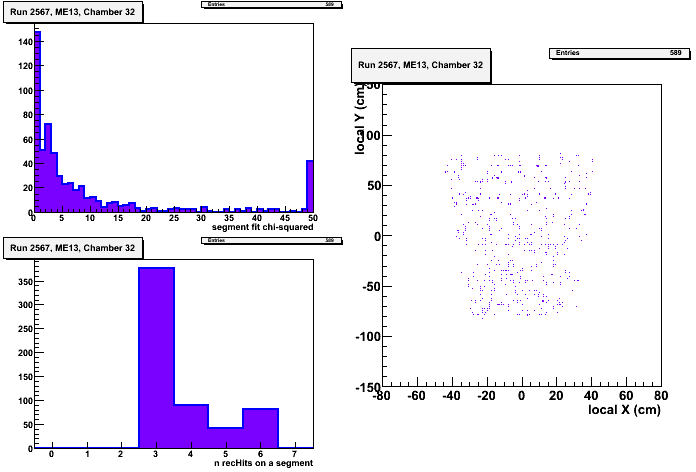

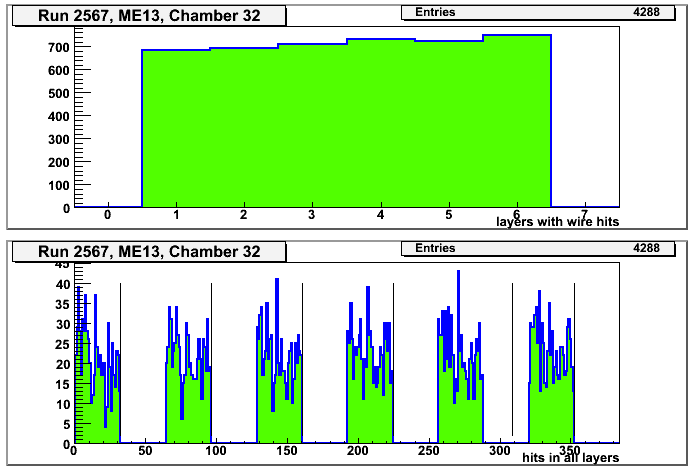

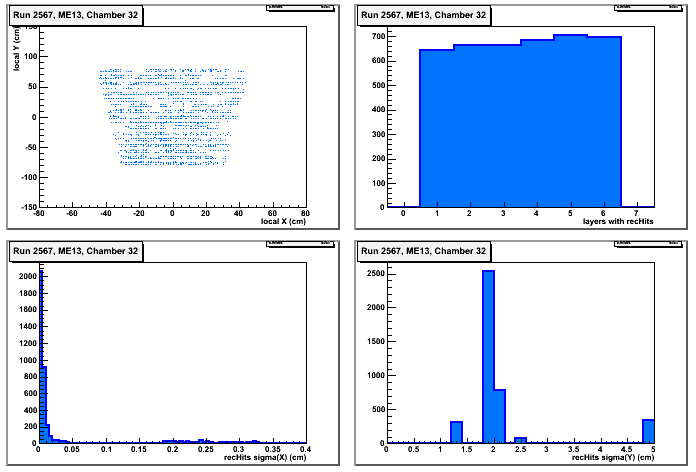

ME13 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

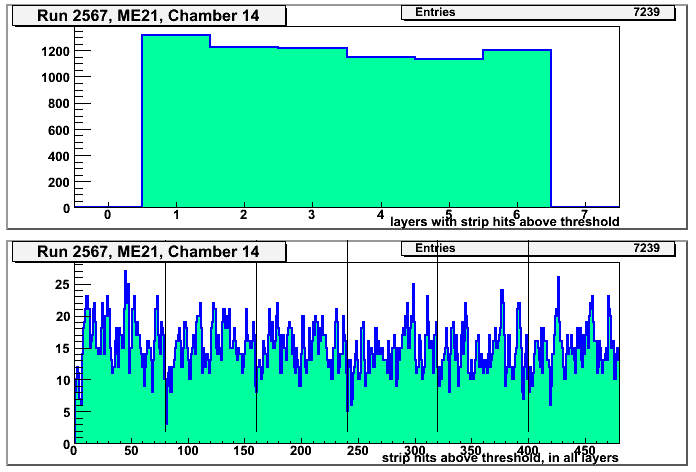

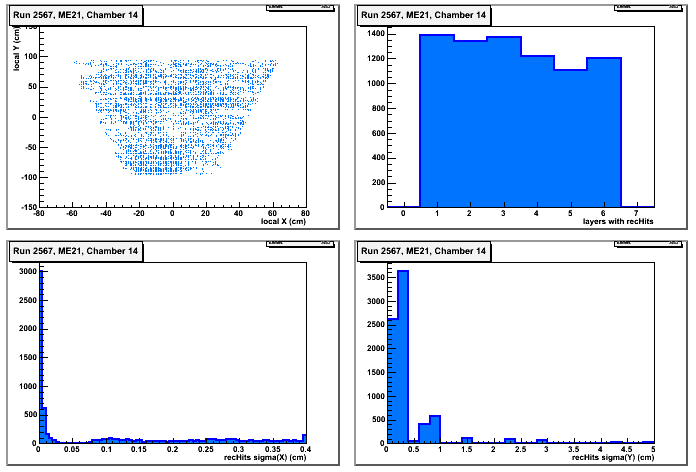

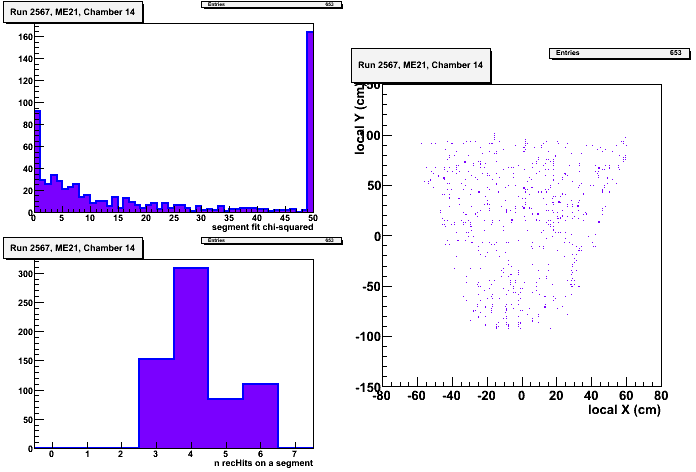

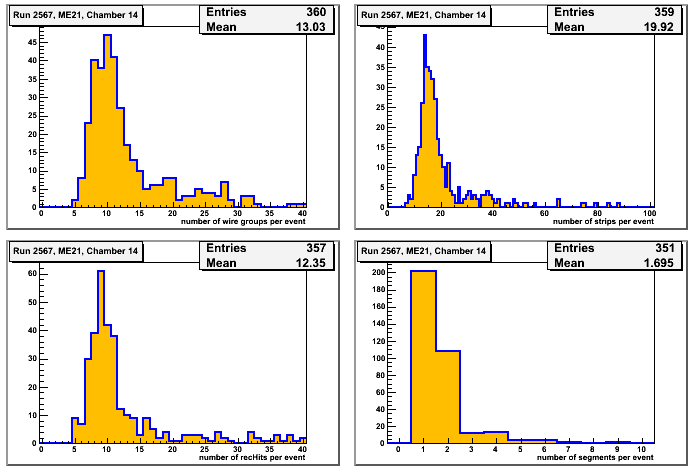

ME21 / 14	multiplicities   wire hits   strip hits   recHits   segments	Wire hit distribution is now more-or-less OK.

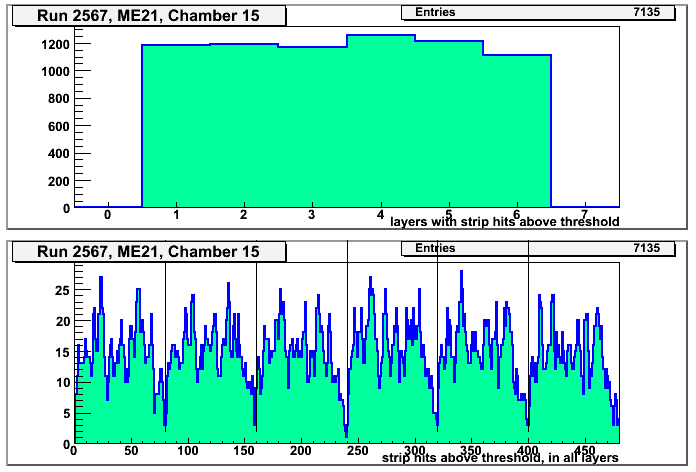

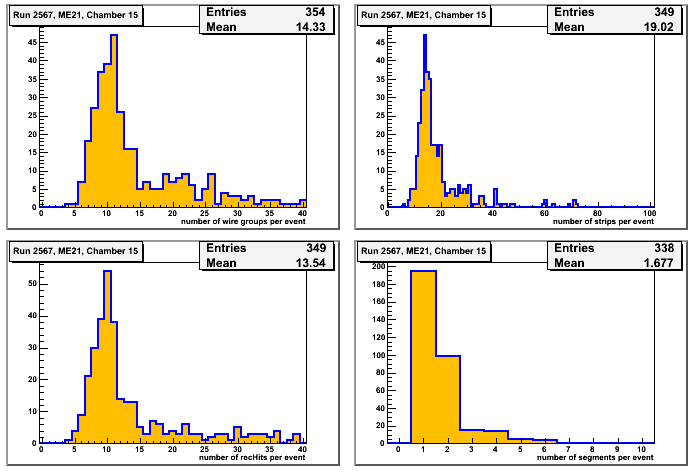

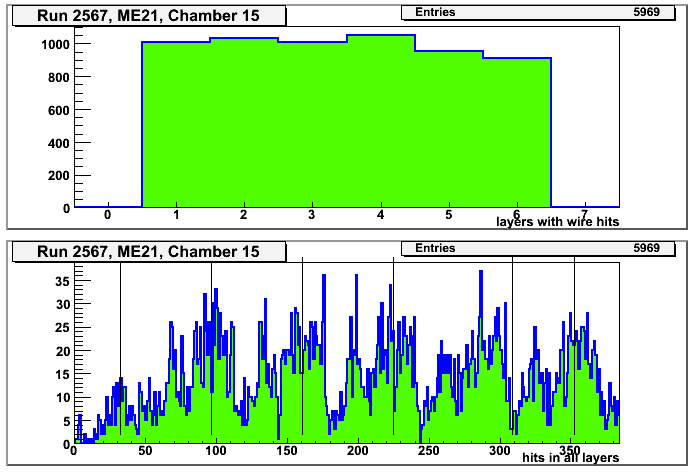

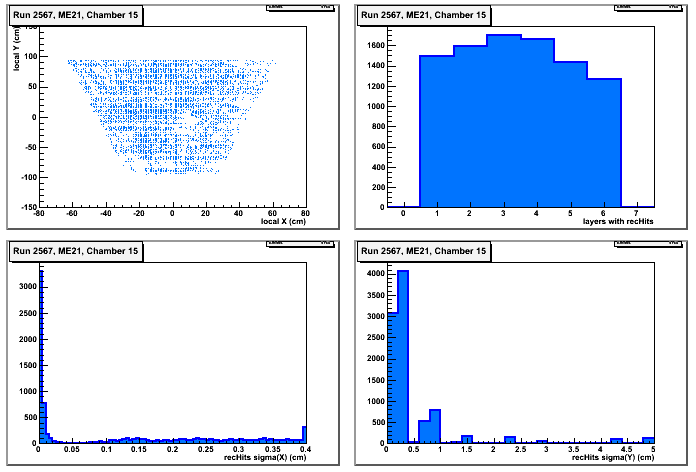

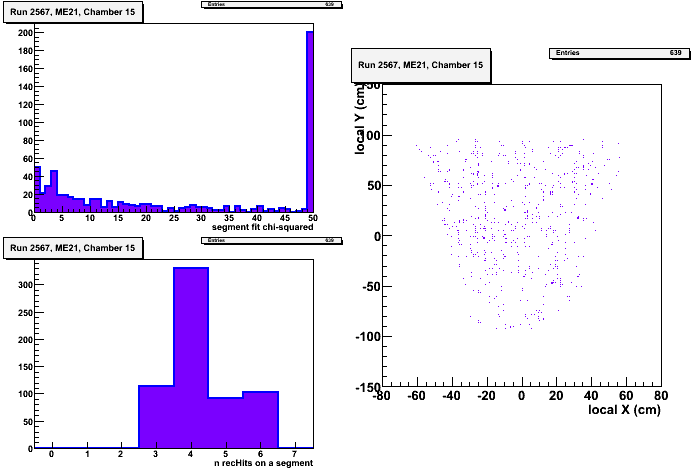

ME21 / 15	multiplicities   wire hits   strip hits   recHits   segments	OK, though chi-squared for segments is not so good.

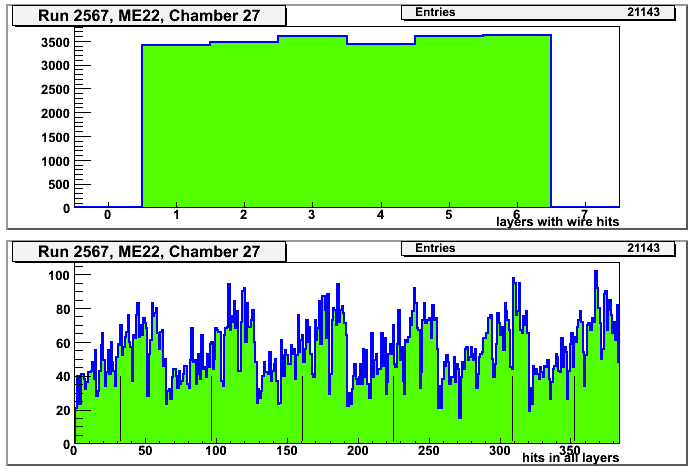

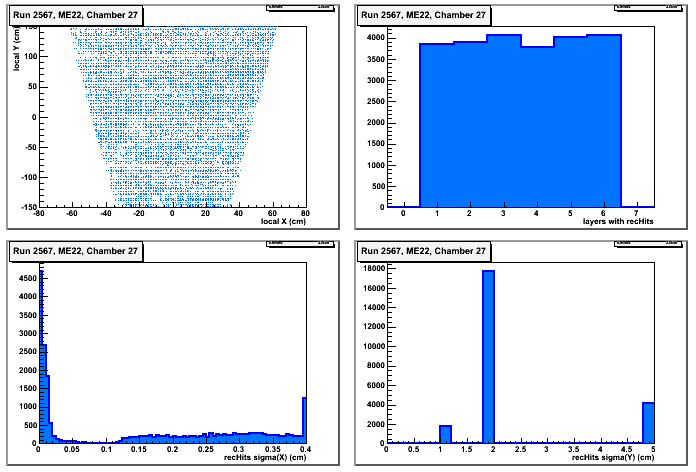

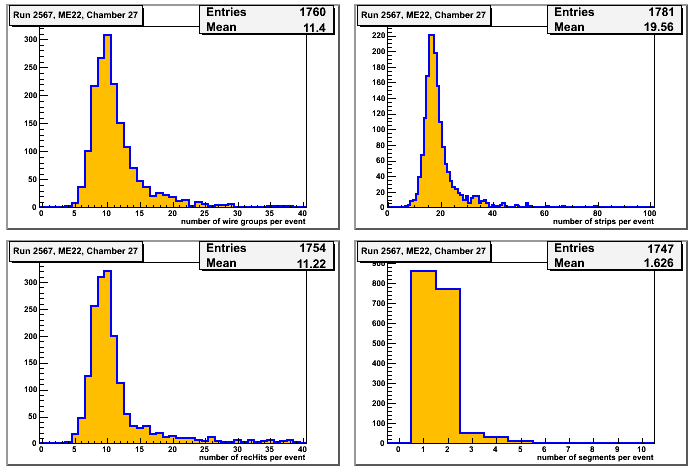

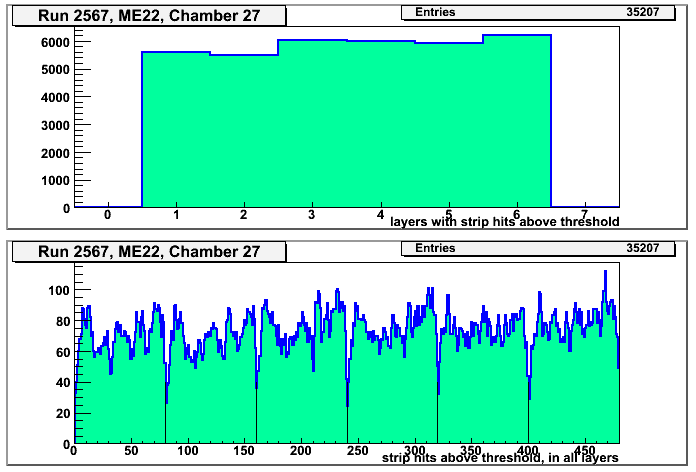

ME22 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

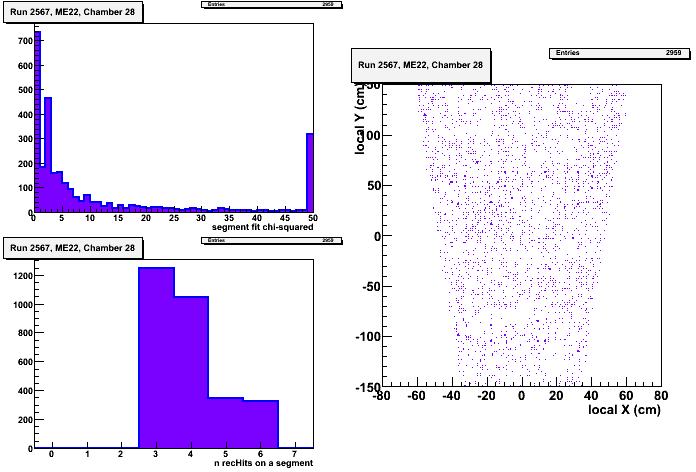

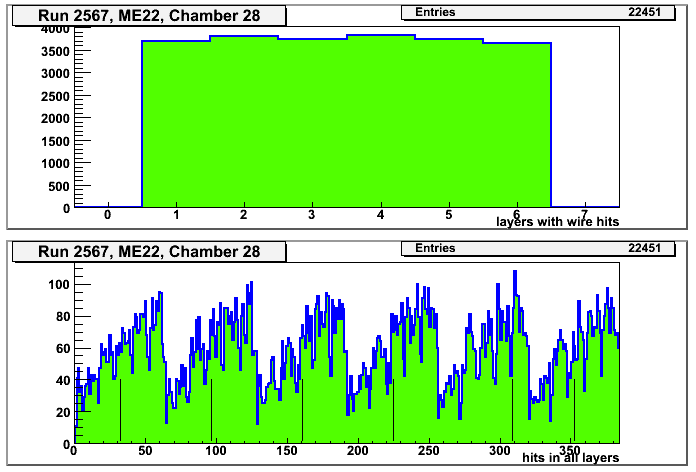

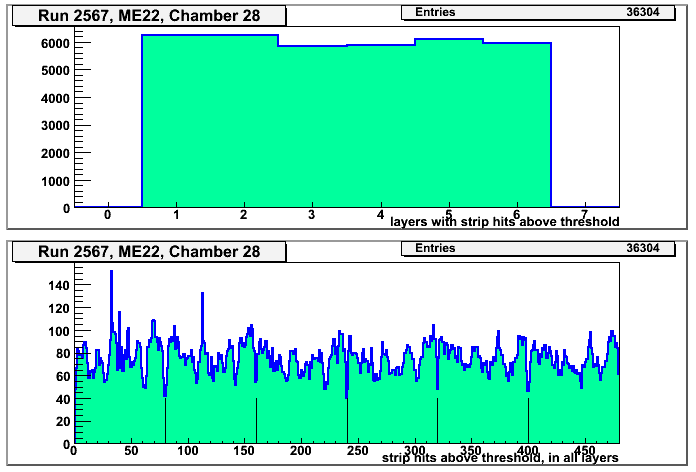

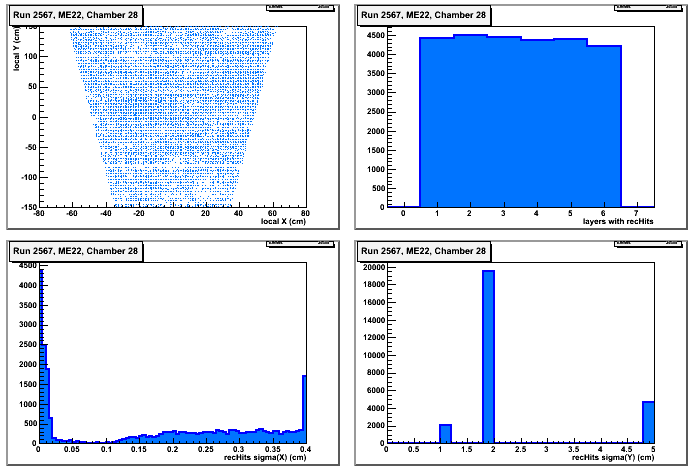

ME22 / 28	multiplicities   wire hits   strip hits   recHits   segments	some noisy strip channels in layers 1&2

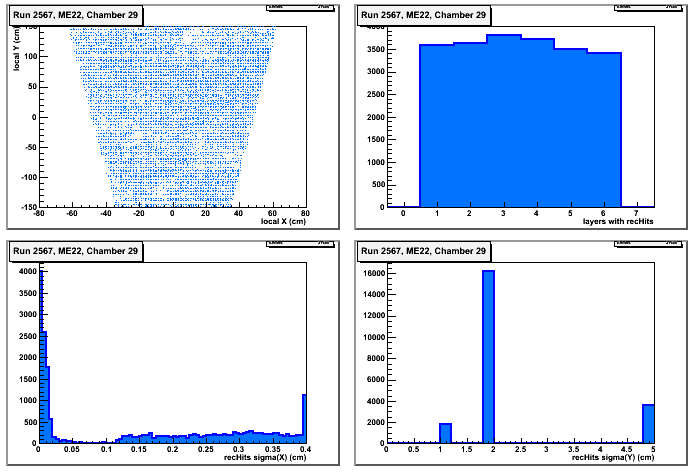

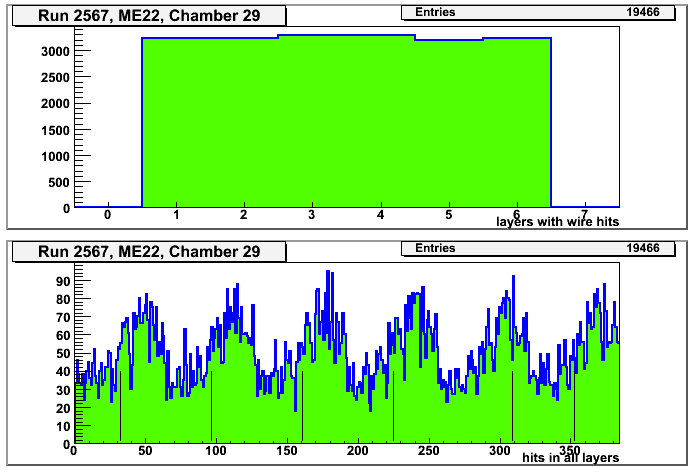

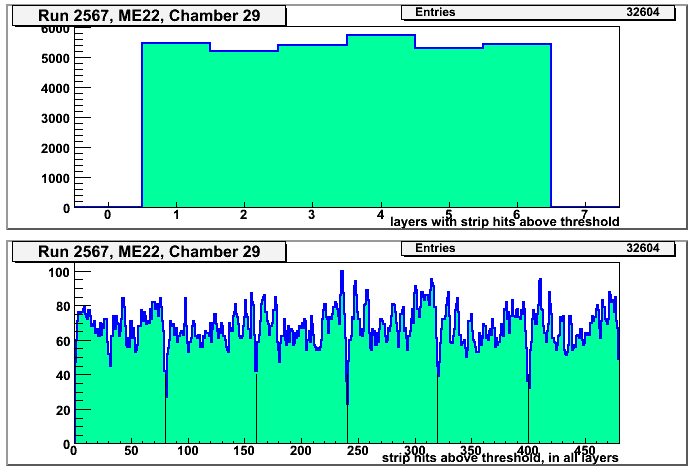

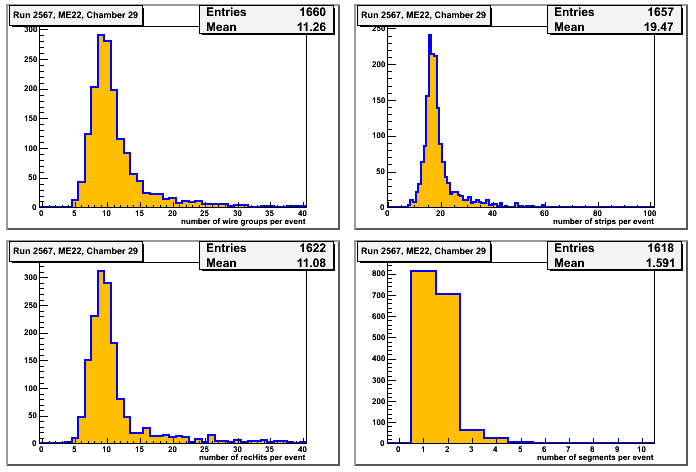

ME22 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

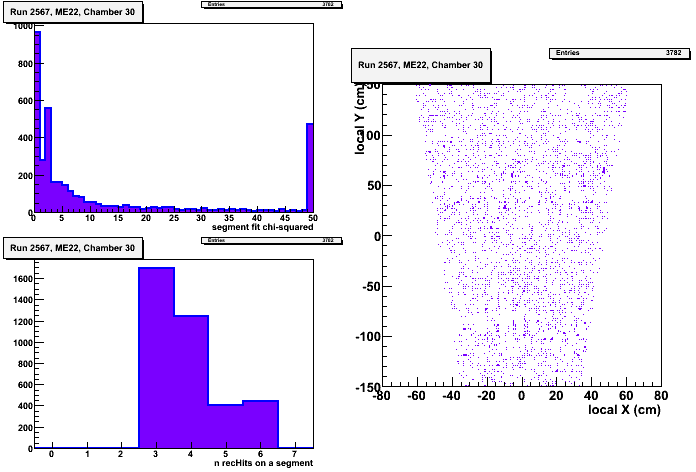

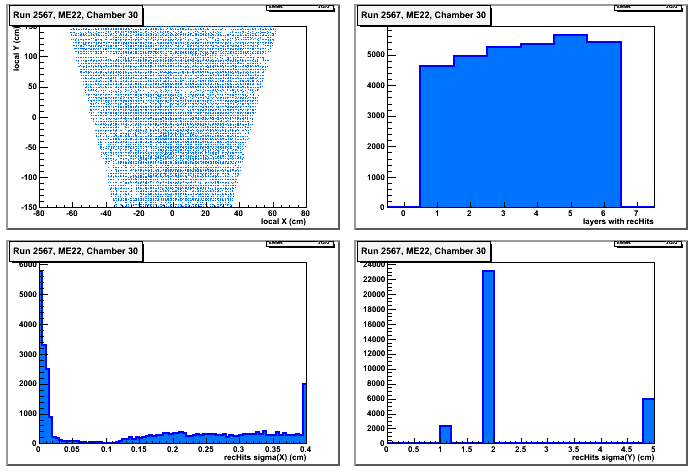

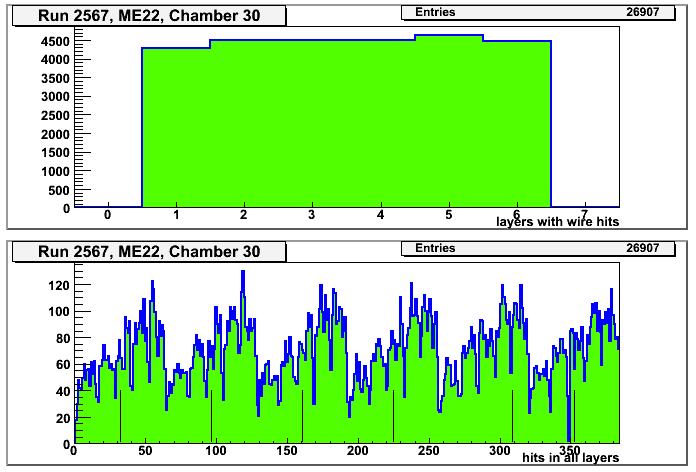

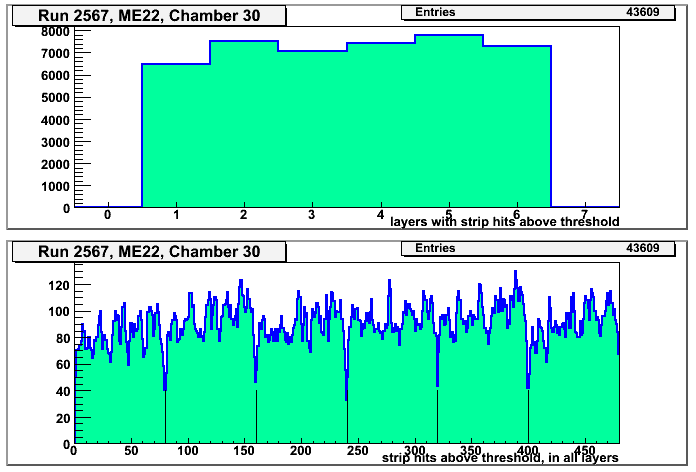

ME22 / 30	multiplicities   wire hits   strip hits   recHits   segments	one dead wire in layer 5

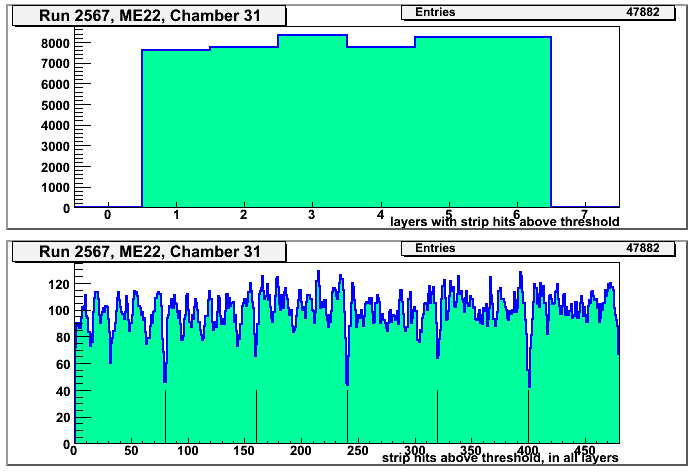

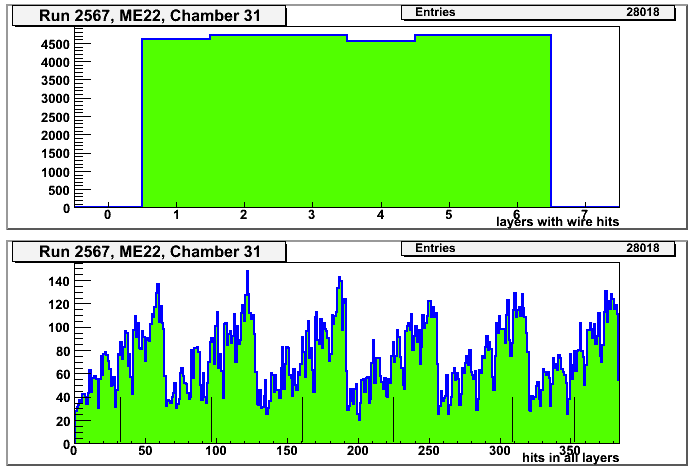

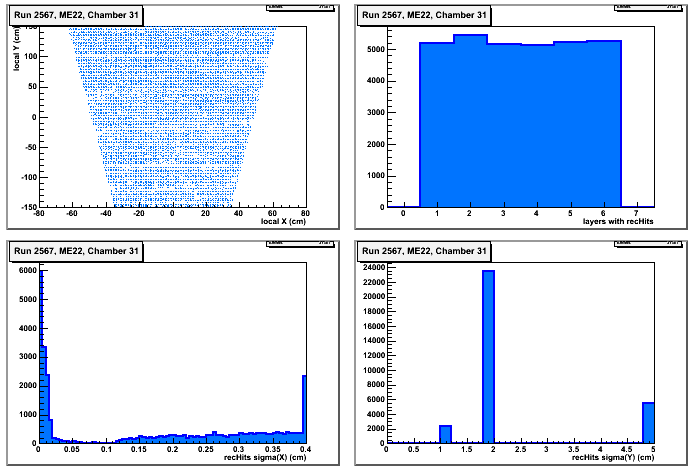

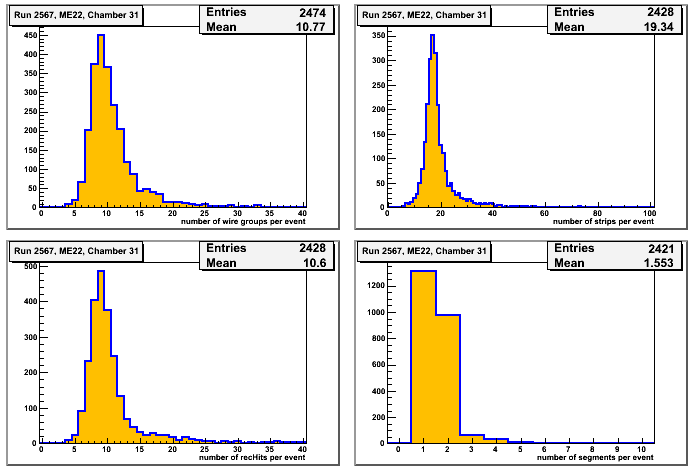

ME22 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

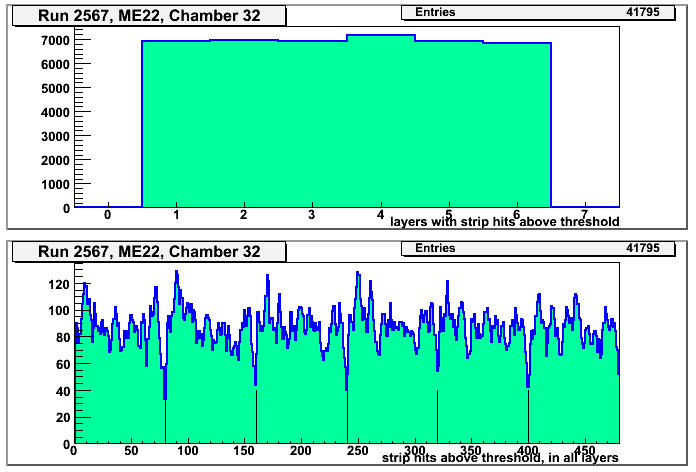

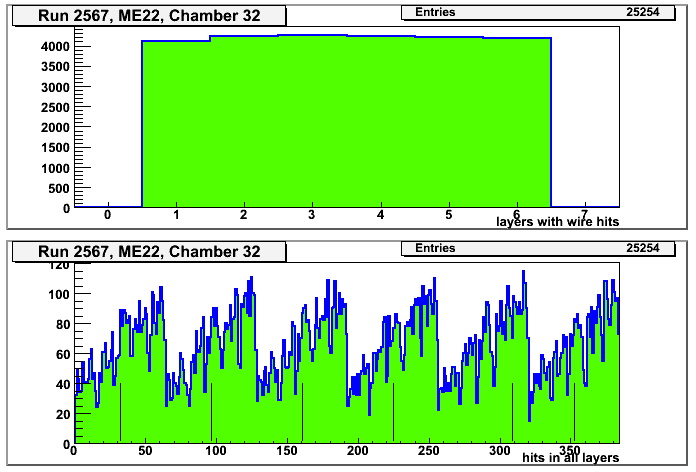

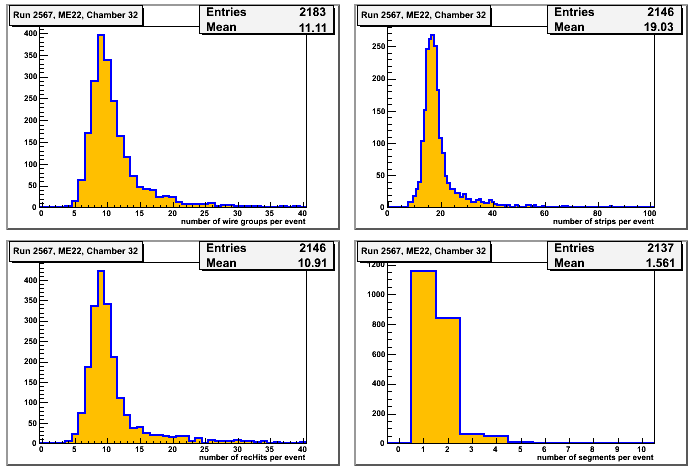

ME22 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

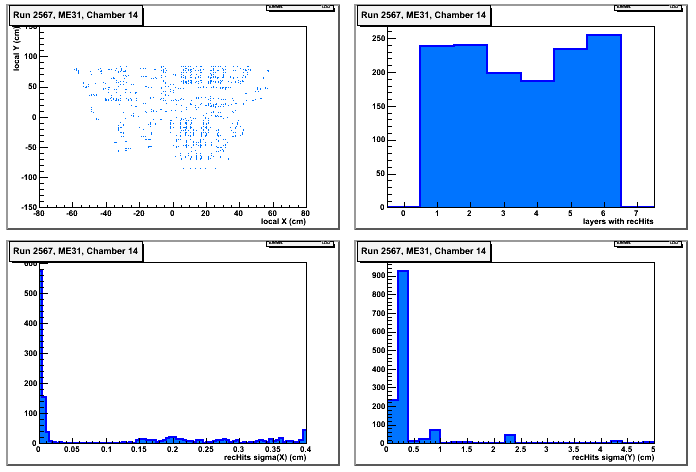

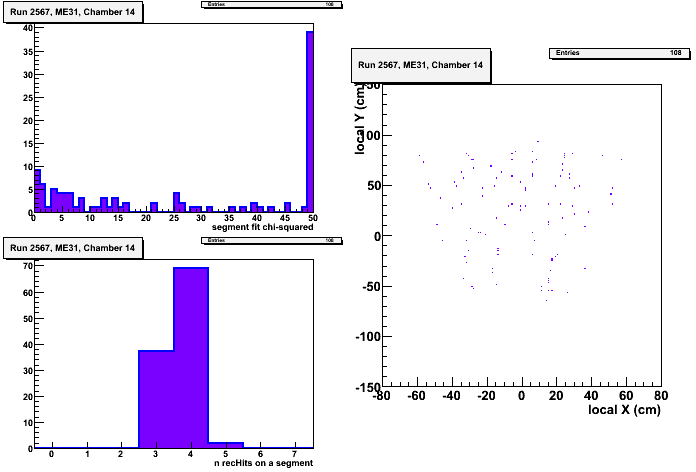

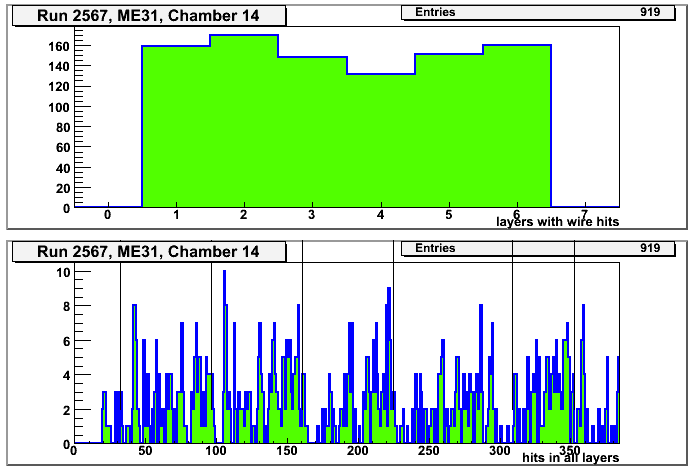

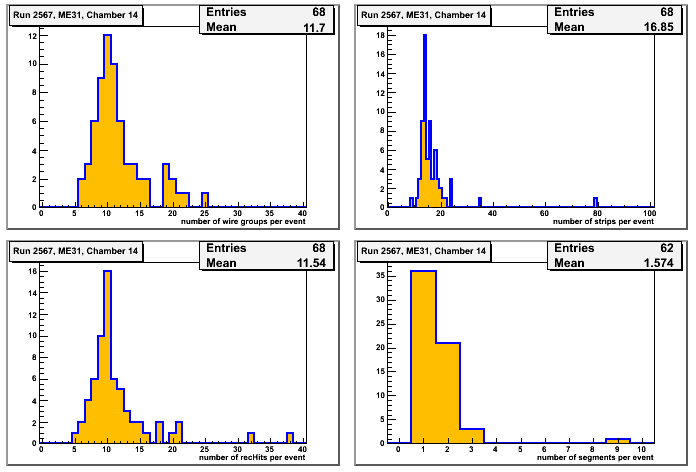

ME31 / 14	multiplicities   wire hits   strip hits   recHits   segments	Poor chi-squared for segments.

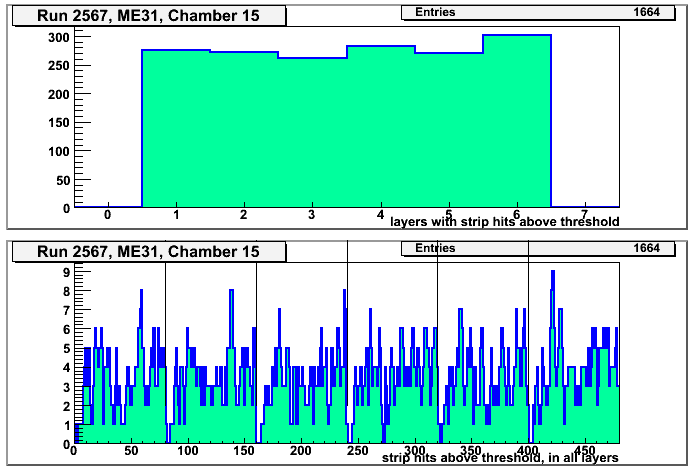

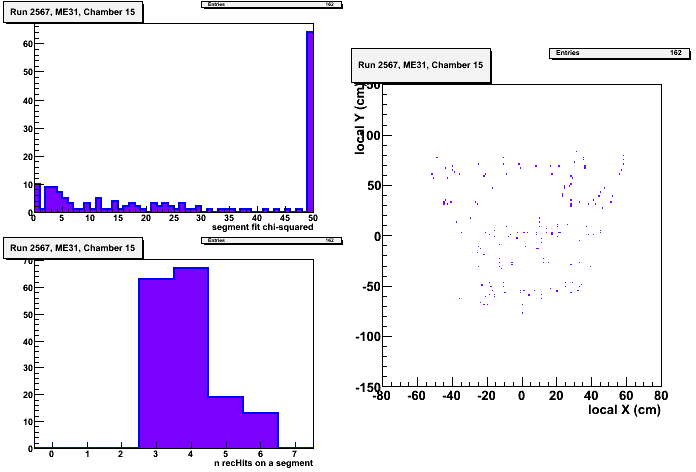

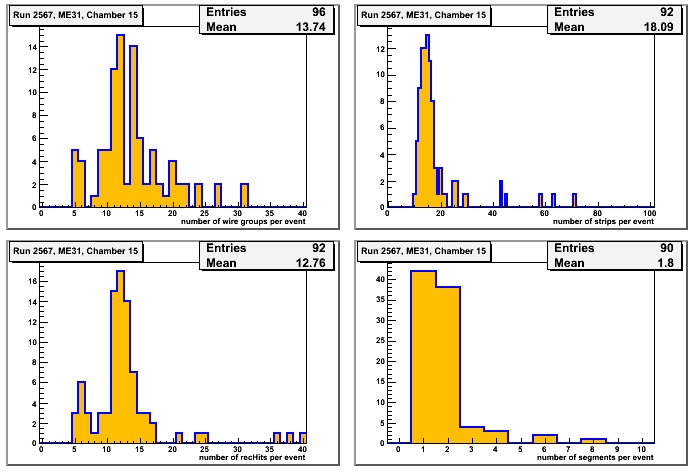

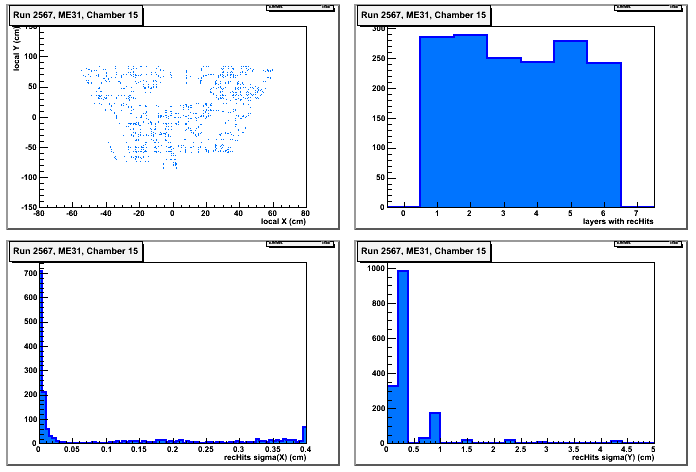

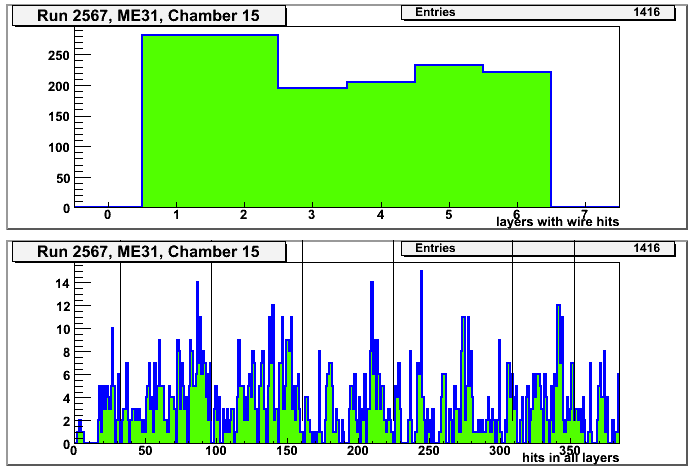

ME31 / 15	multiplicities   wire hits   strip hits   recHits   segments	Odd distribution for N wire groups. Cross-talk?? Poor chi-squared for segments.

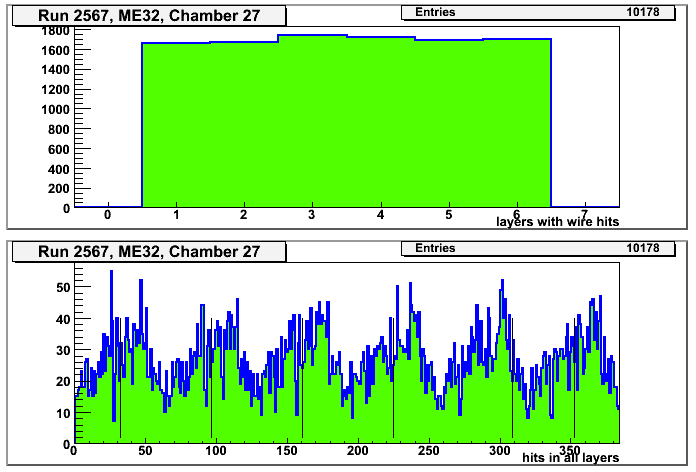

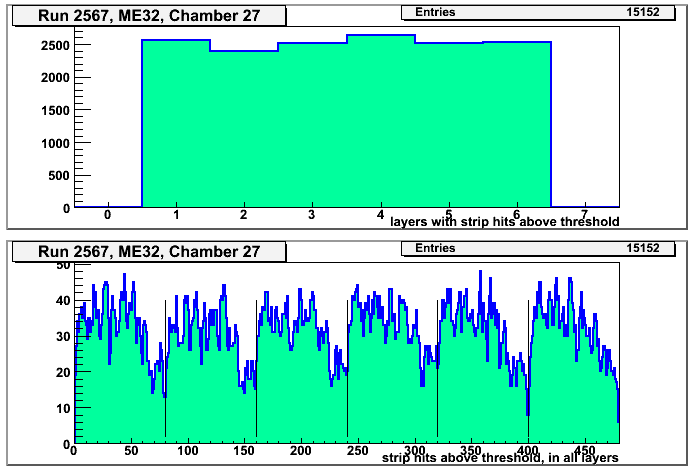

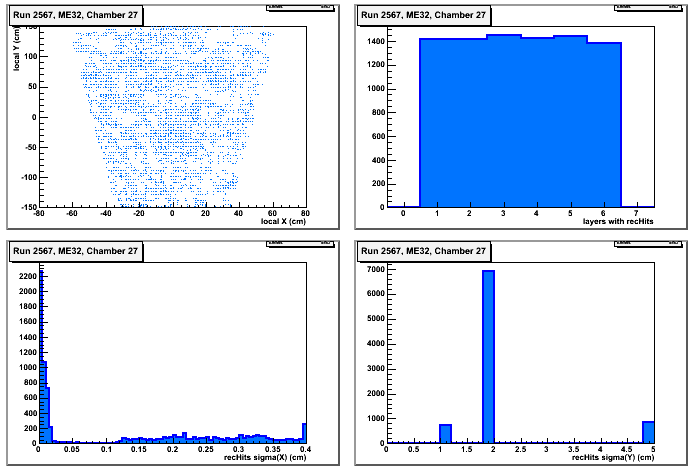

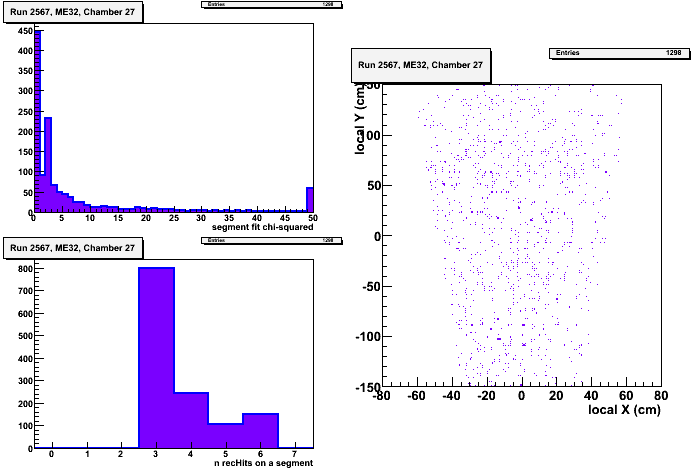

ME32 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

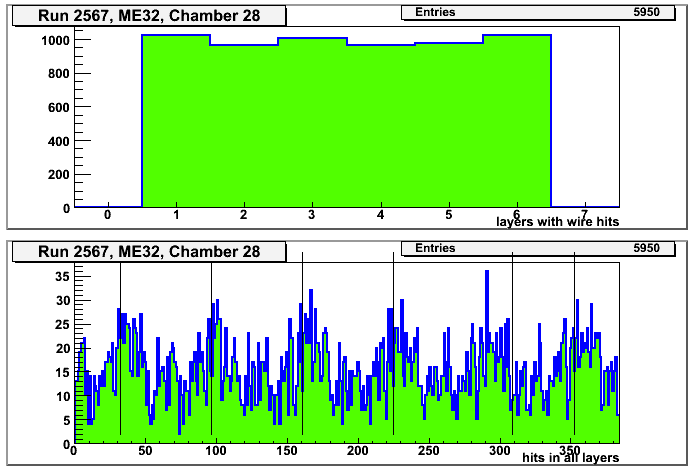

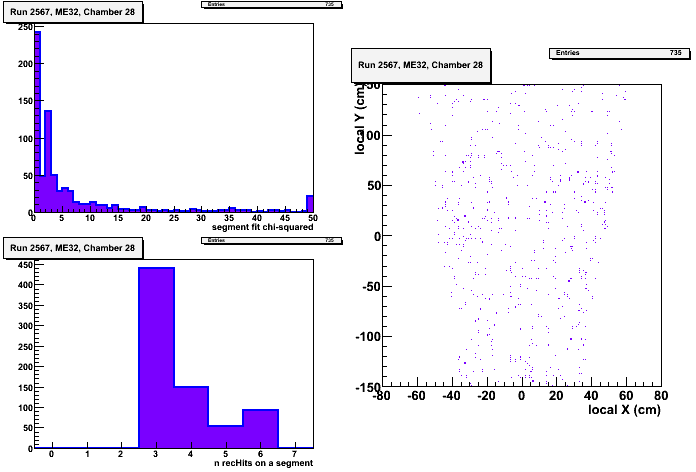

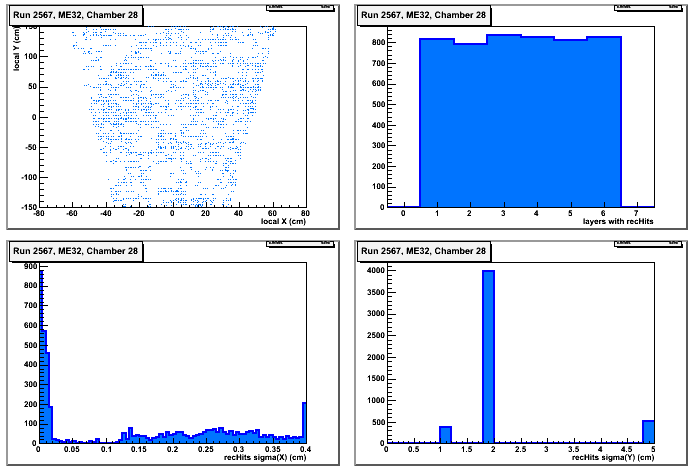

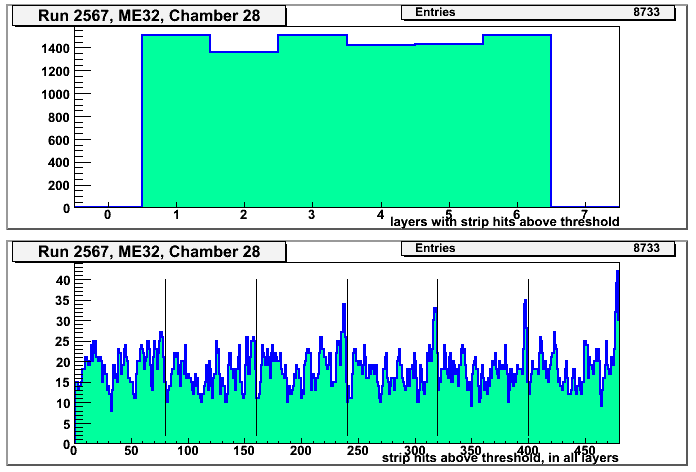

ME32 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

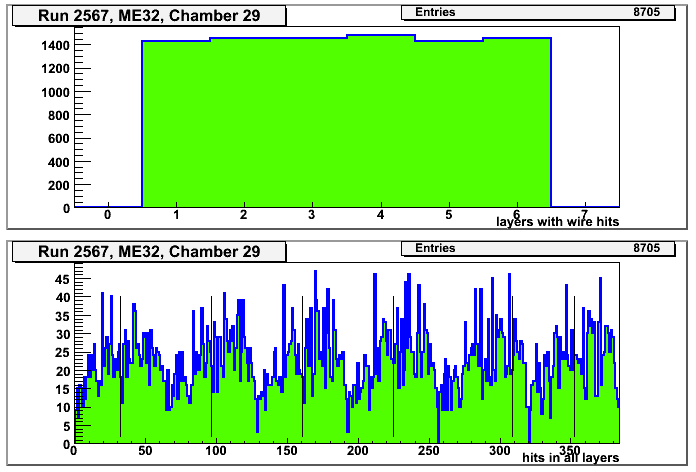

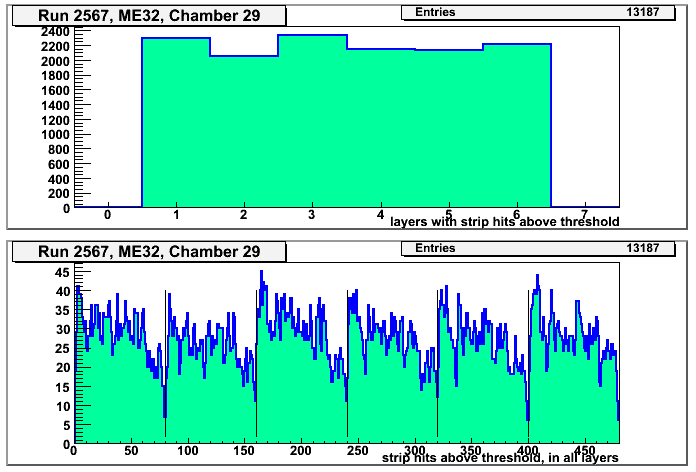

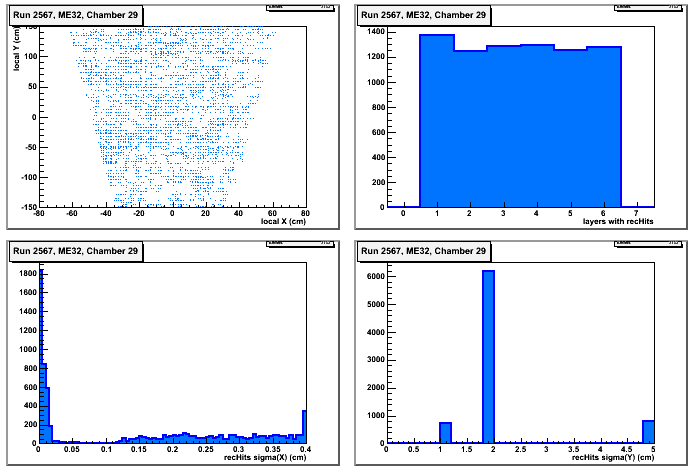

ME32 / 29	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

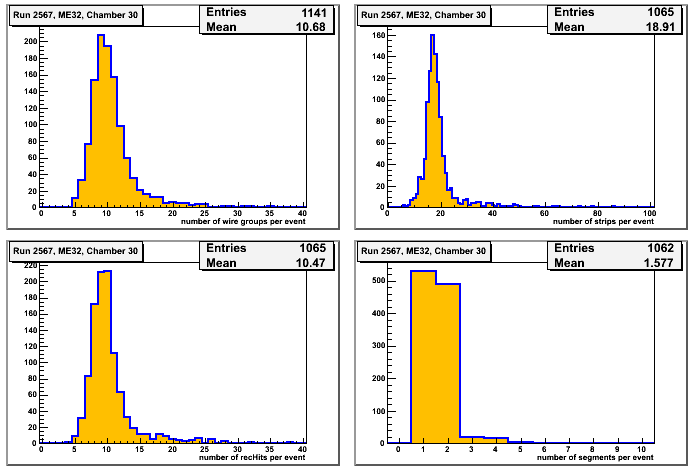

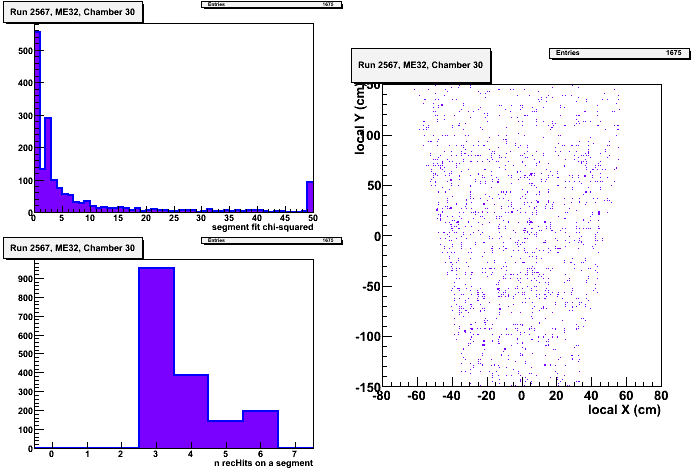

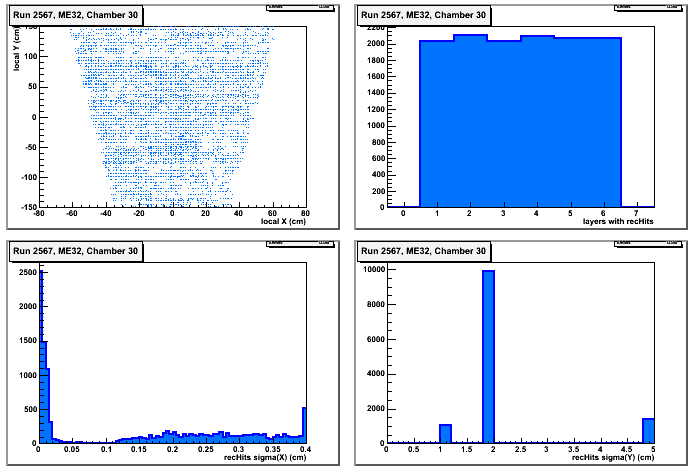

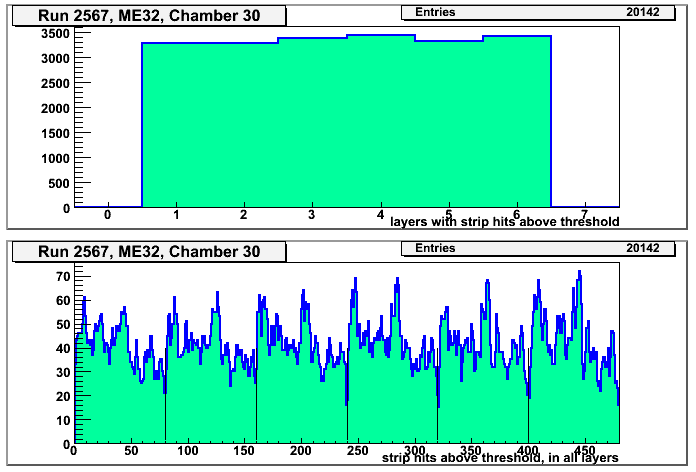

ME32 / 30	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

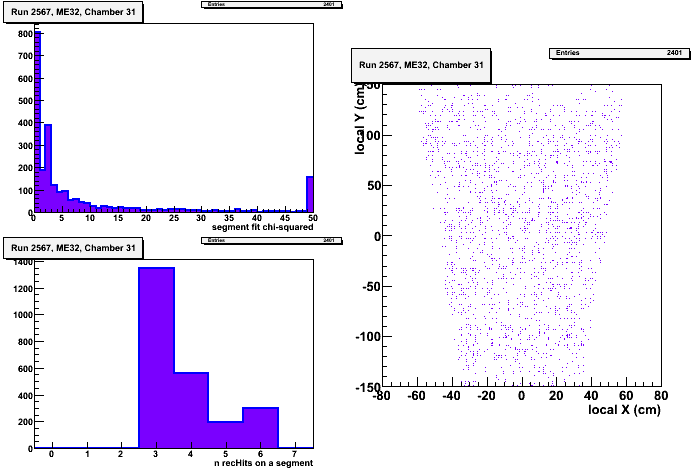

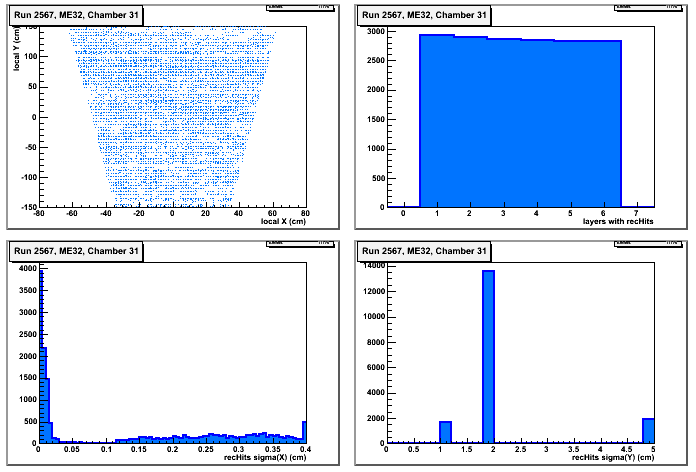

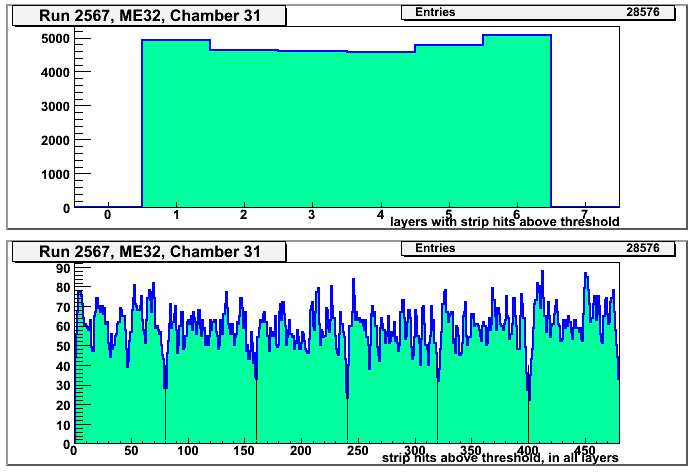

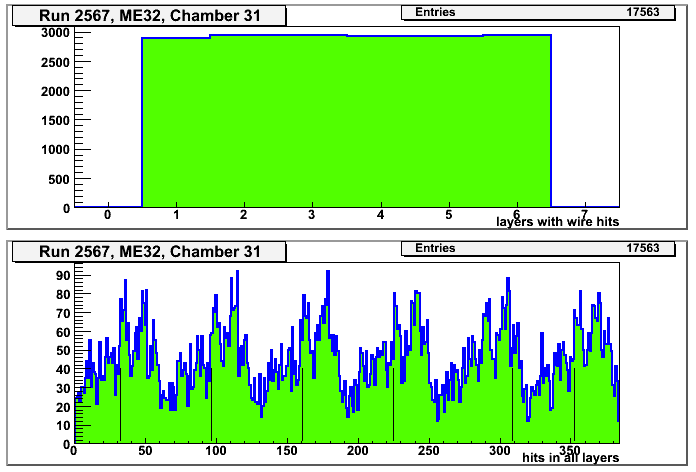

ME32 / 31	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

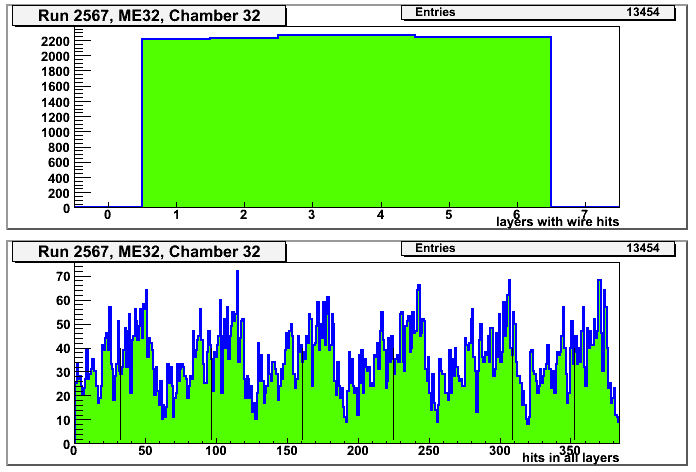

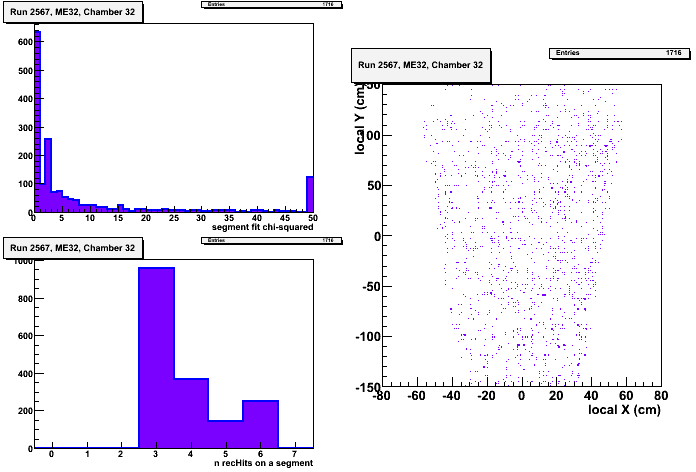

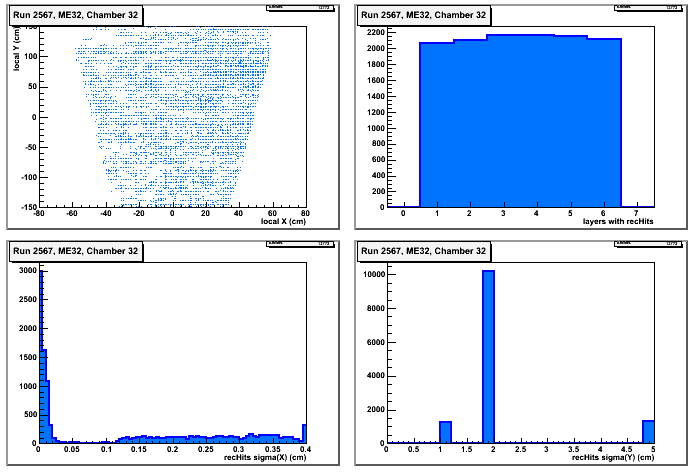

ME32 / 32	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"
