MTCC plots for Run 2426

	gif	The ESR code which shows overall occupancies. ME1 is not empty.
	gif	Station 1 recHits
	gif	Station 2 recHits empty region in ME22/32.

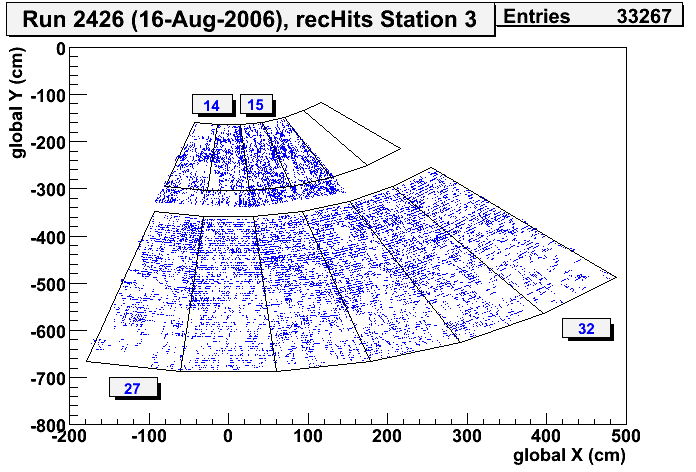

	gif	Station 3 recHits (Pardon the incorrect drawing of ME3/1 boundaries.)

station/ring	links to plots	comments

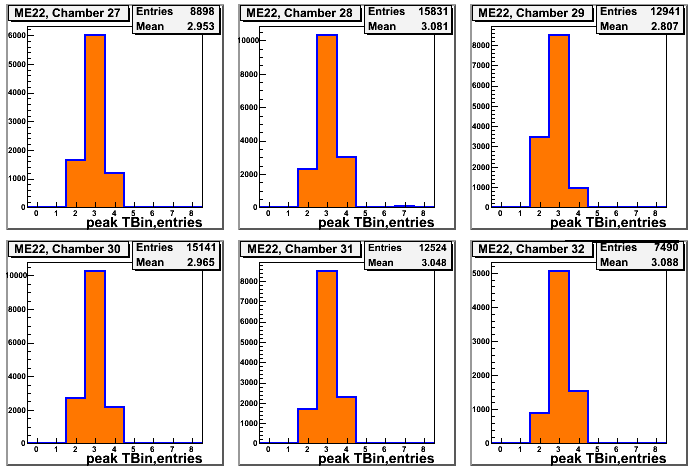

ME22	Wire Time Bins    strips peak Time	ME22/28 has a significant number of events with a strip peak time in the 7th and 8th bin, for the strips.

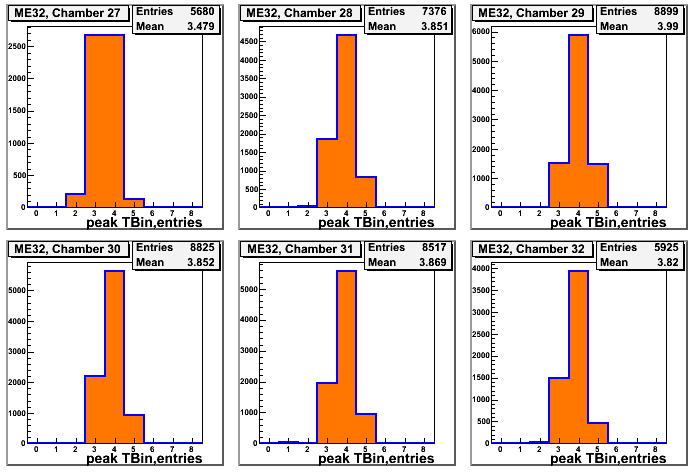

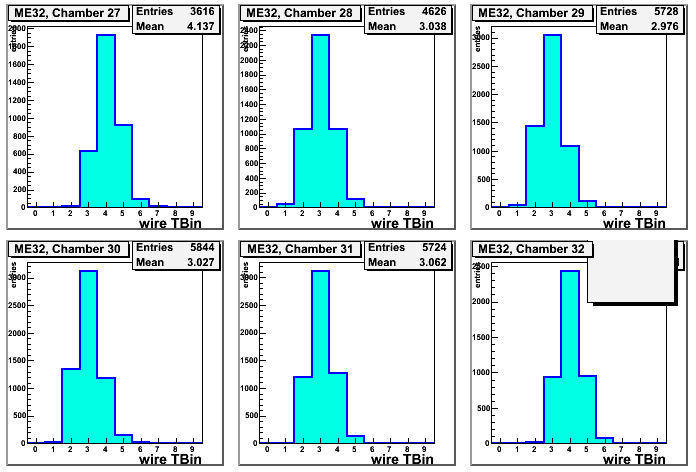

ME32	Wire Time Bins    strips peak Time	ME32/31 has peak ADC in time slice 1, for some events.

chamber	links to plots	comments

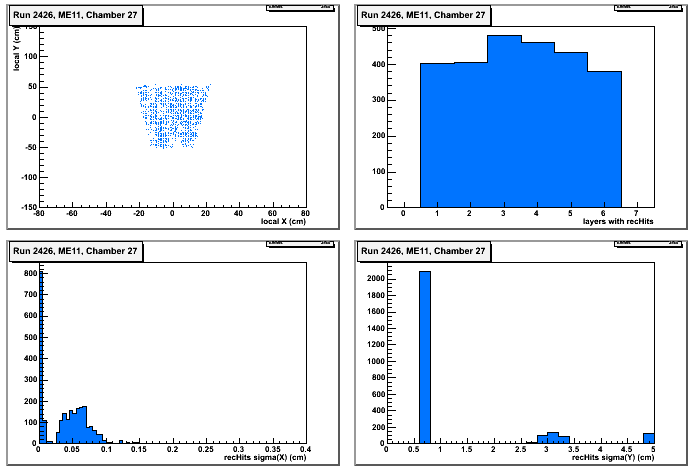

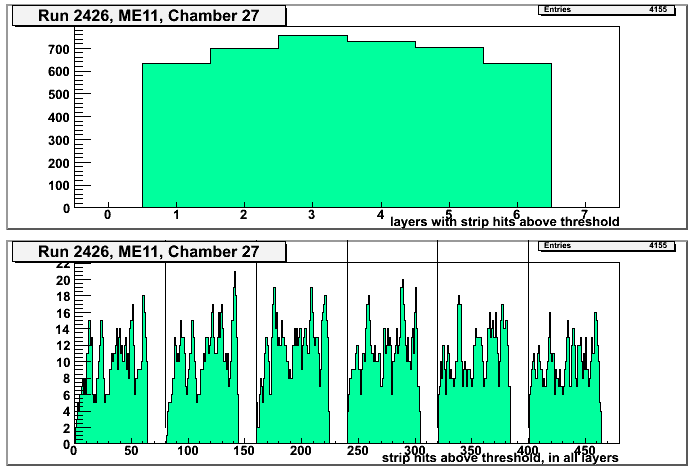

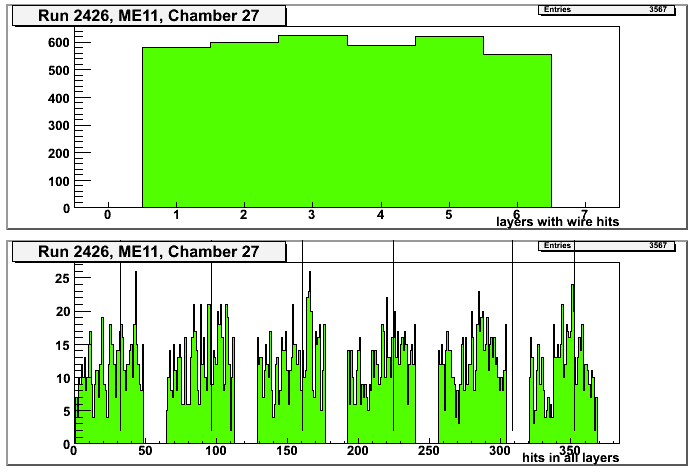

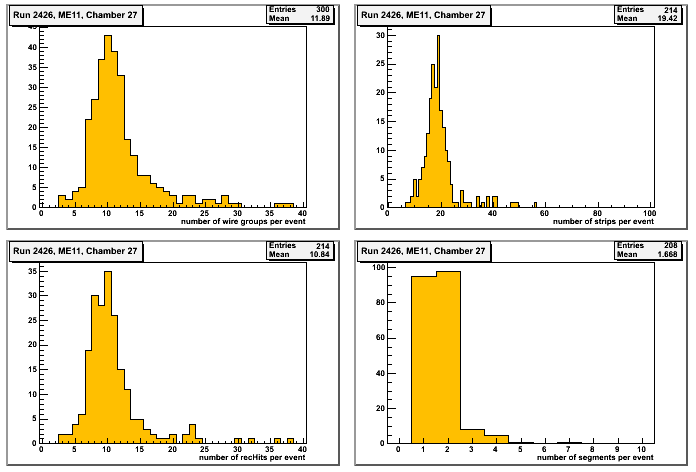

ME11 / 27	multiplicities   wire hits   strip hits   recHits   segments	Layer 4 is fixed!

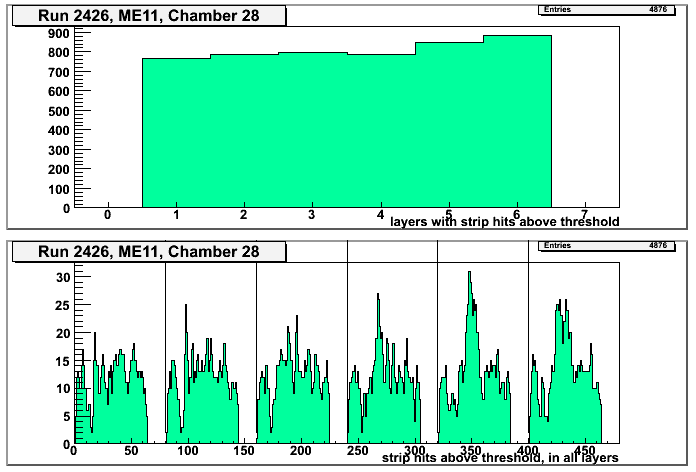

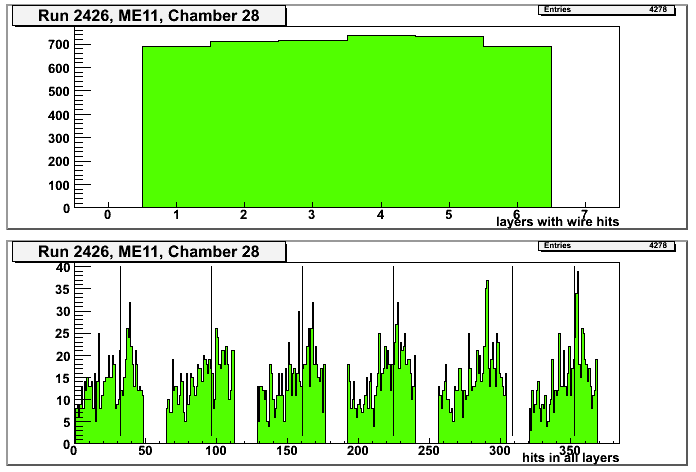

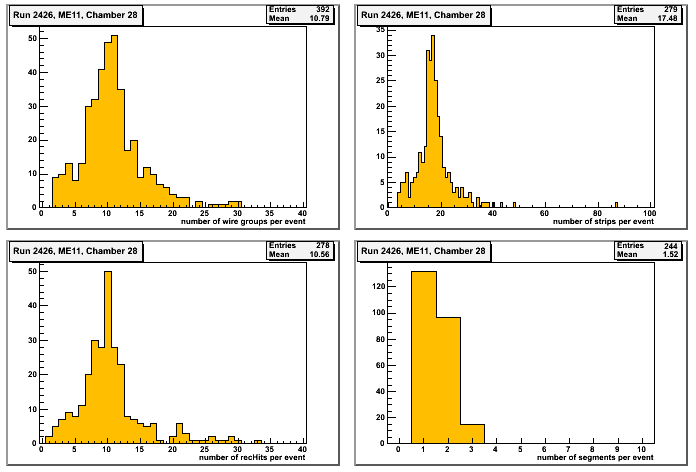

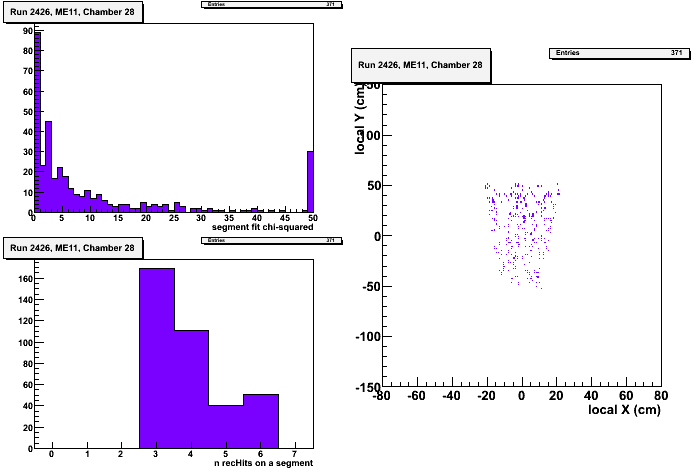

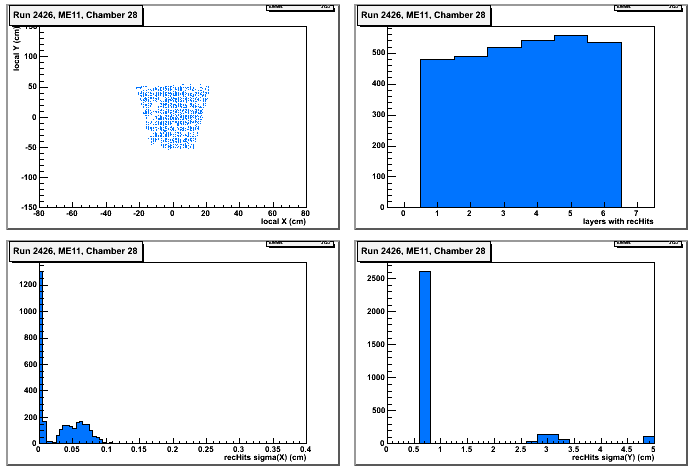

ME11 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

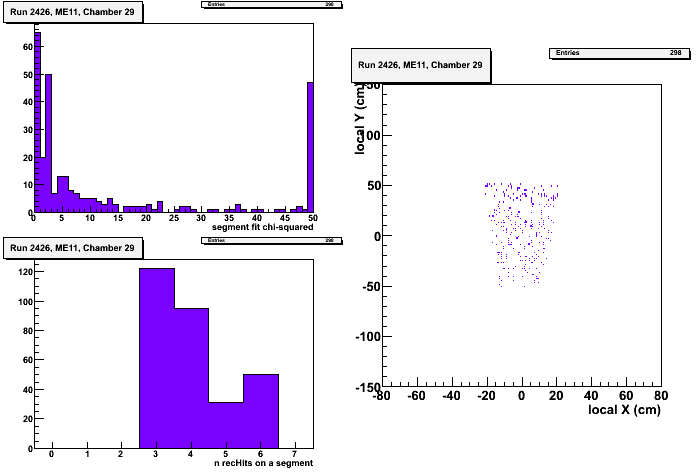

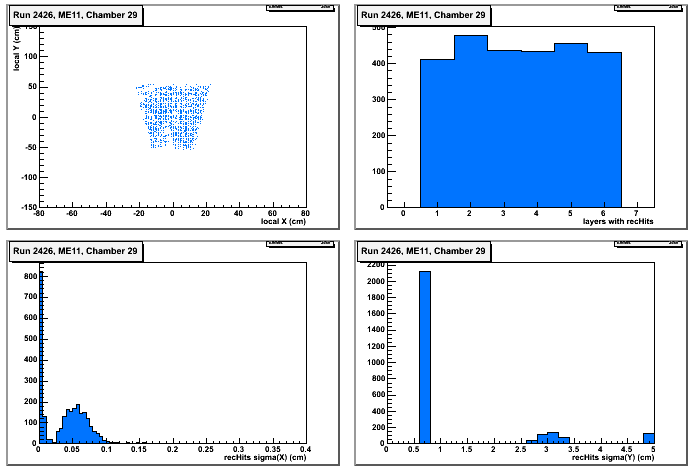

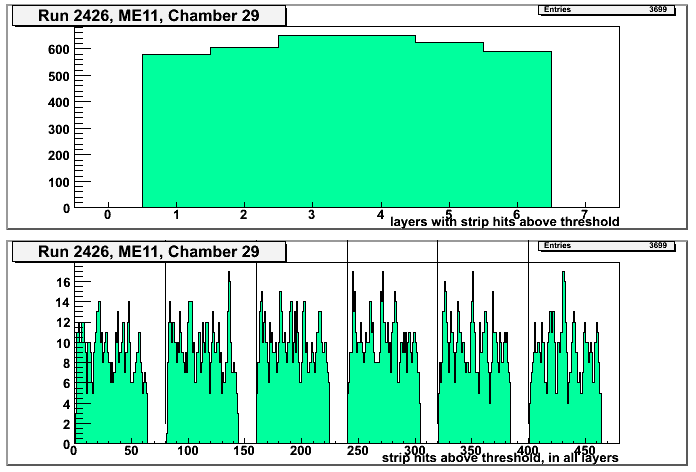

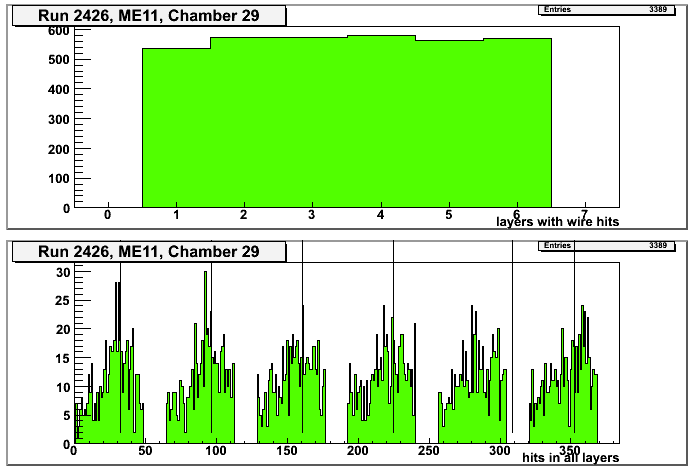

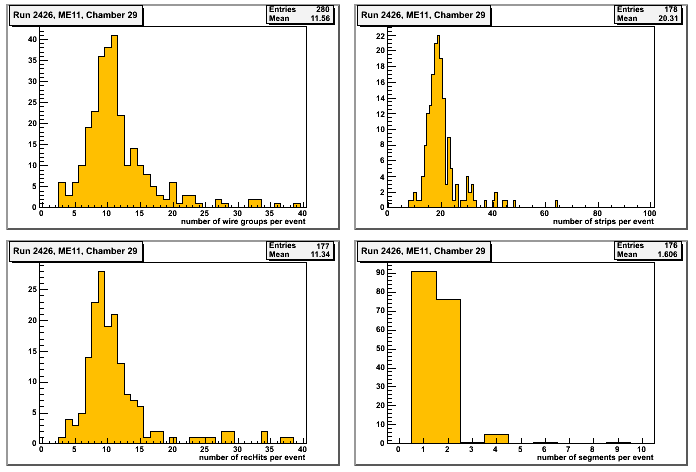

ME11 / 29	multiplicities   wire hits   strip hits   recHits   segments	Layer 3 is fixed!

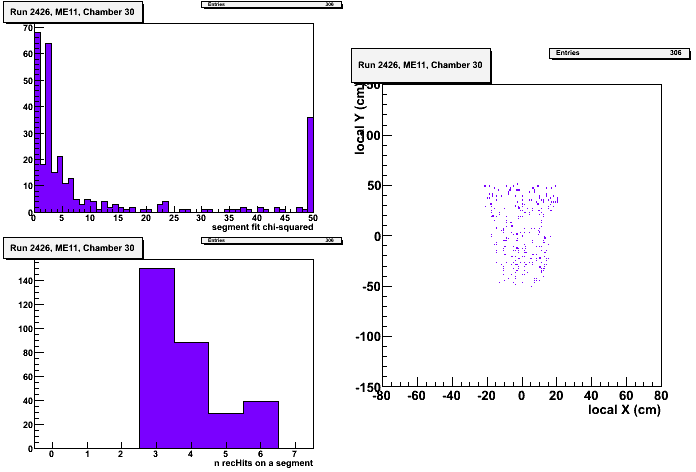

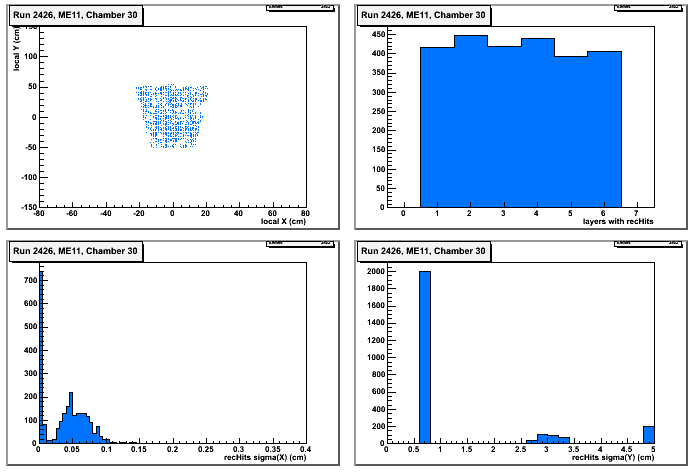

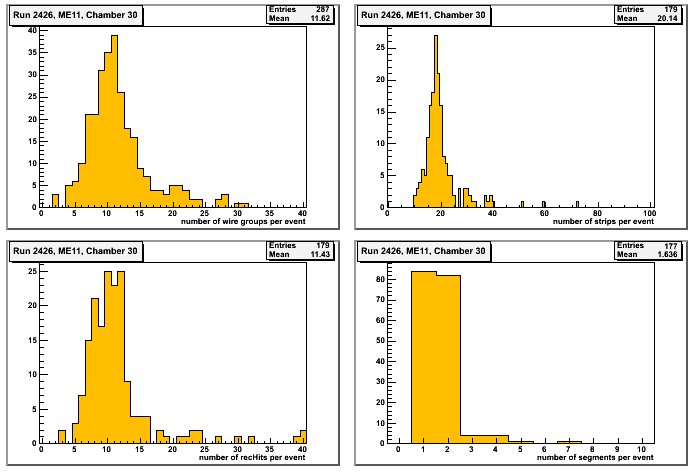

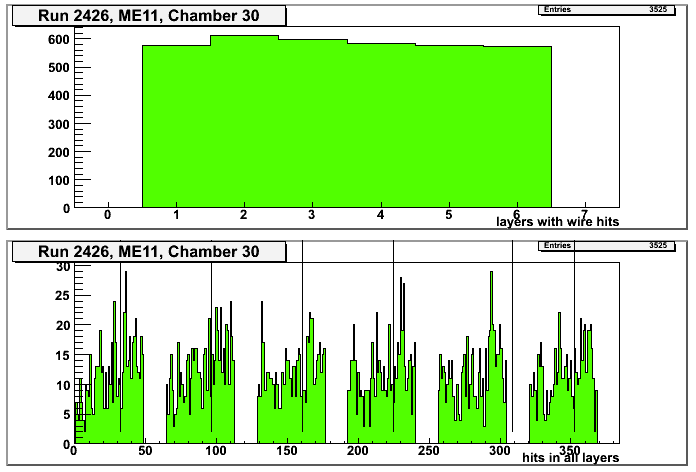

ME11 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

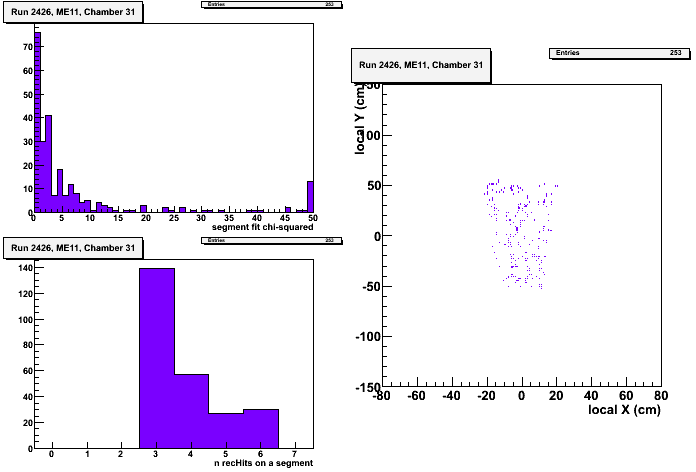

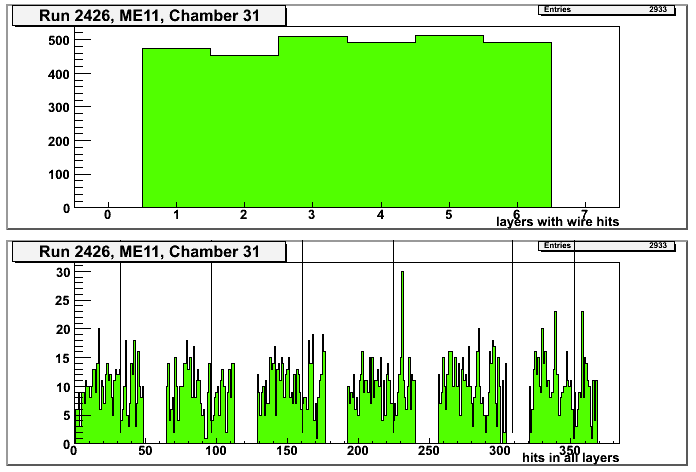

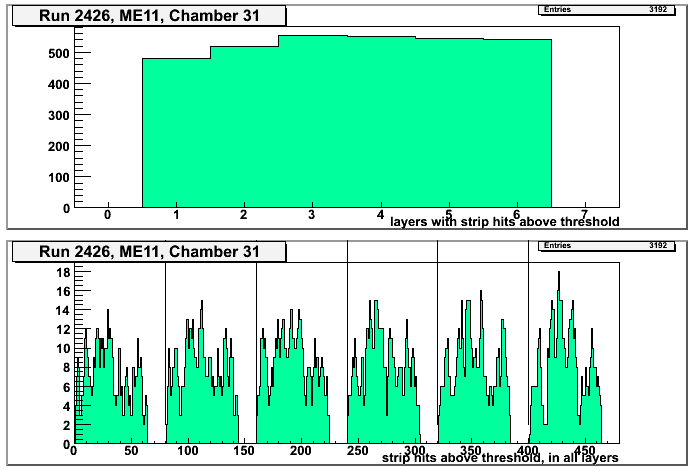

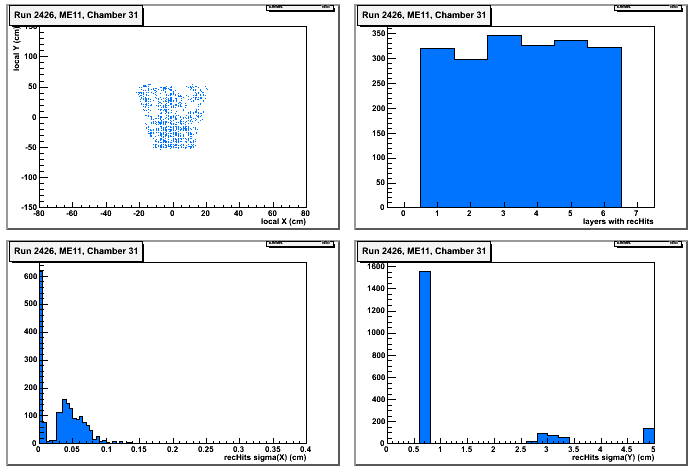

ME11 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

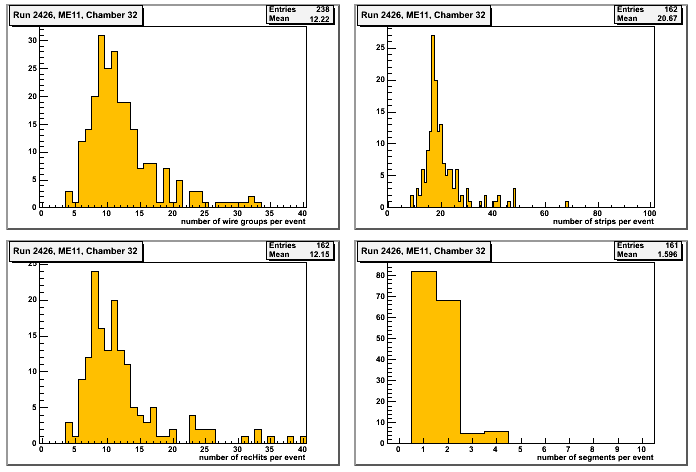

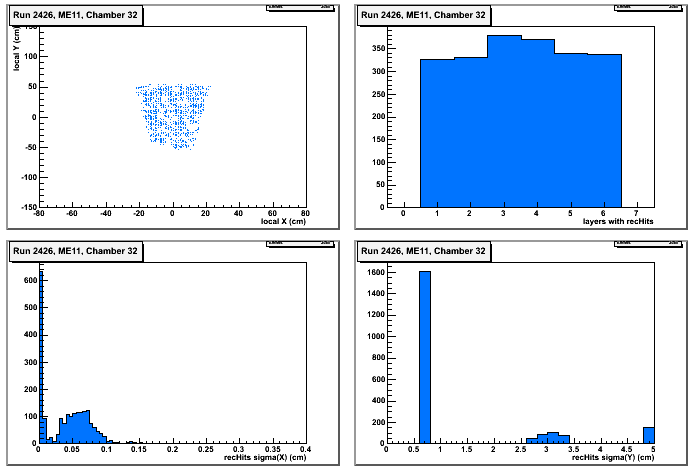

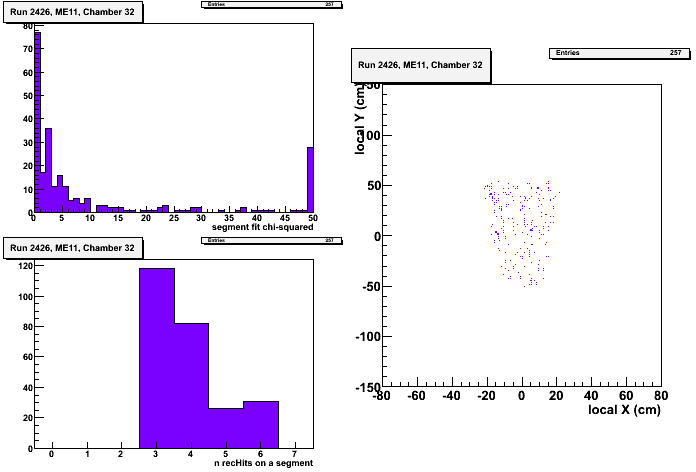

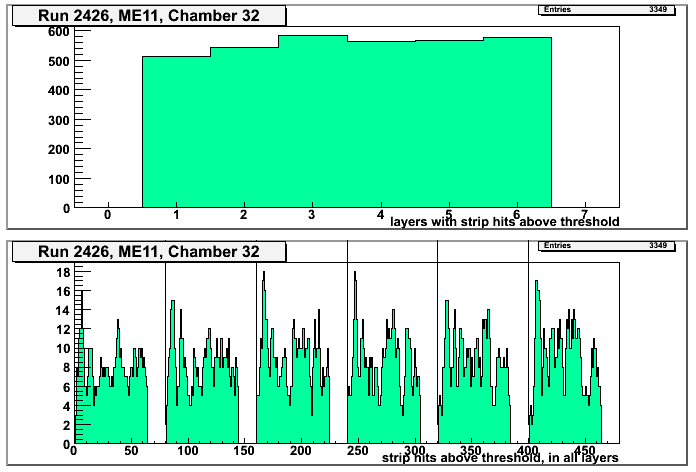

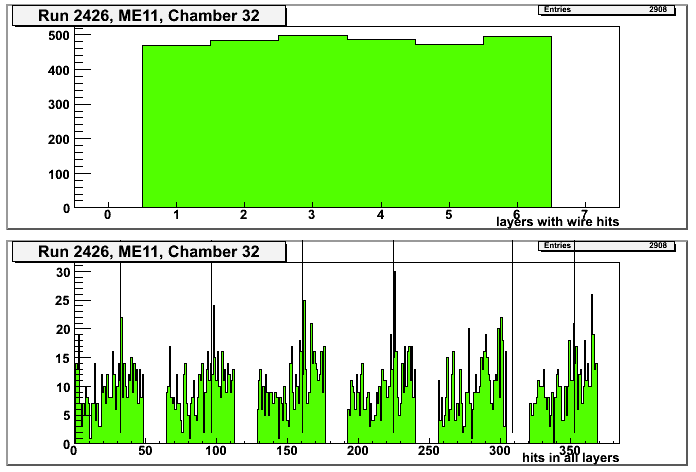

ME11 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

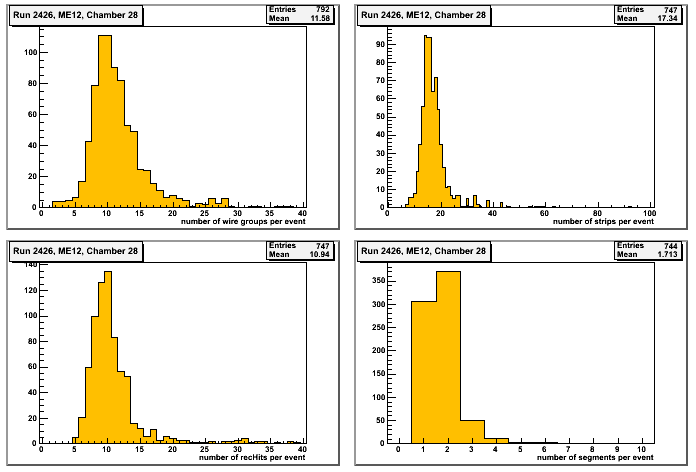

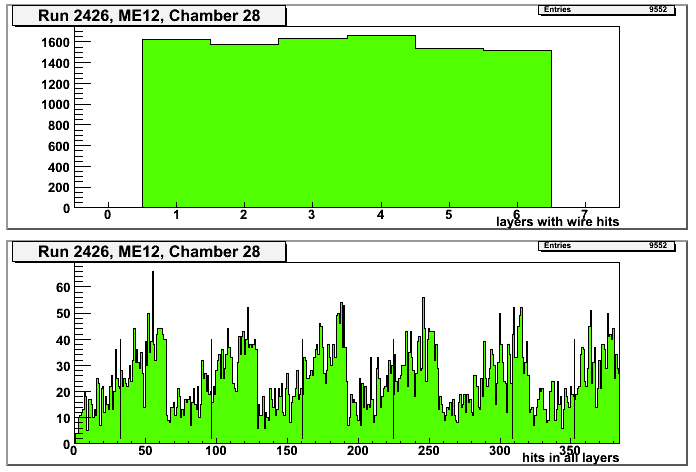

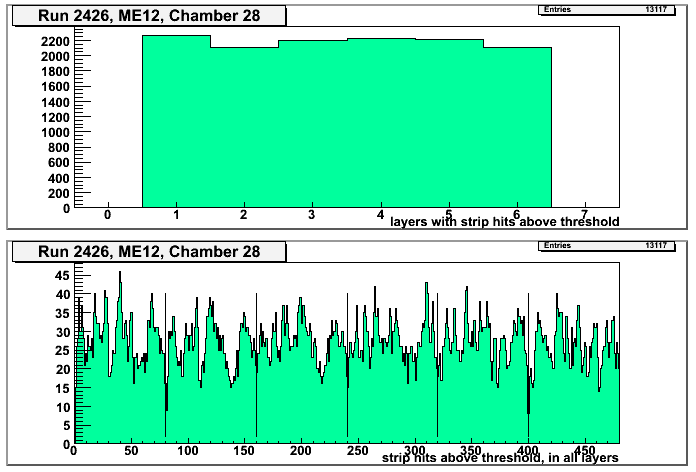

ME12 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

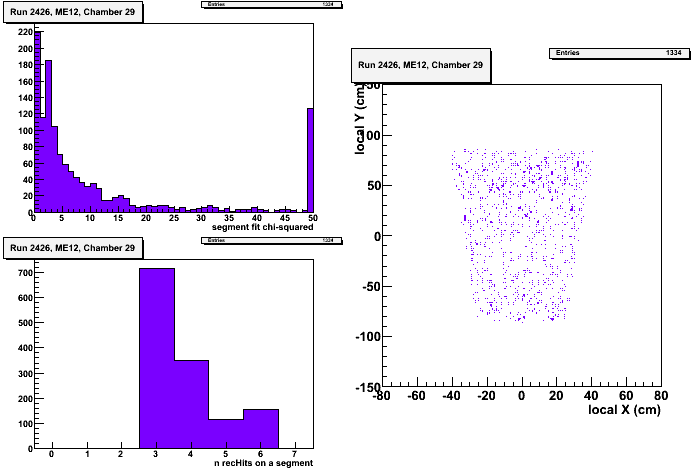

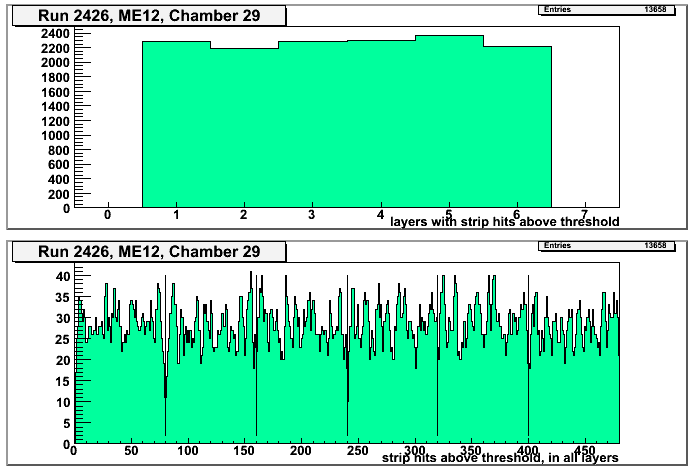

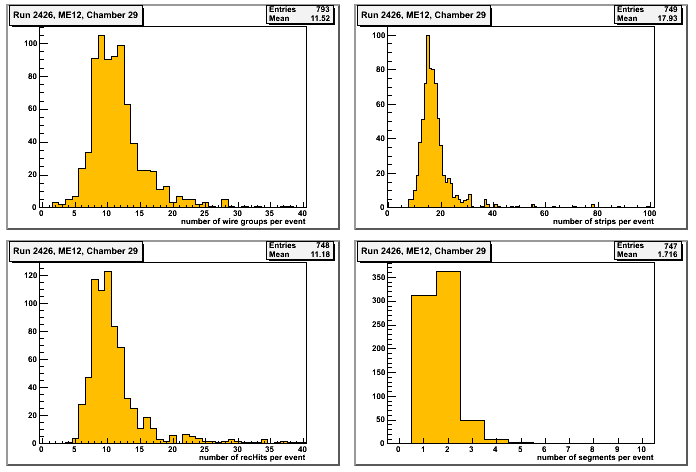

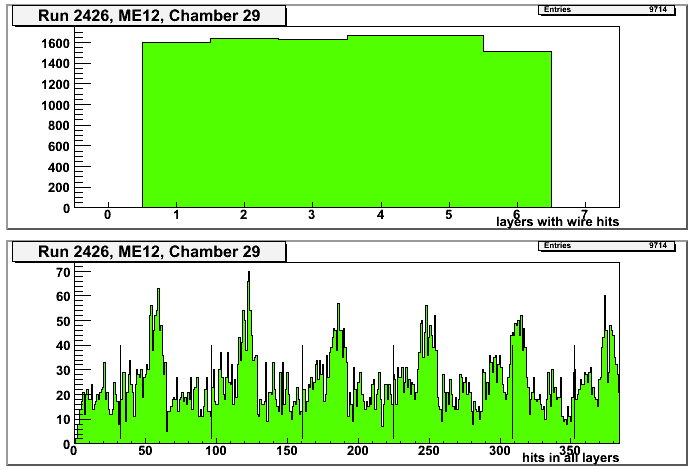

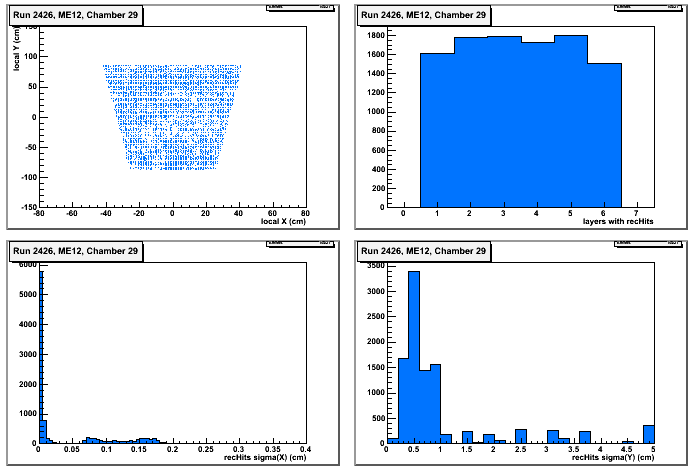

ME12 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

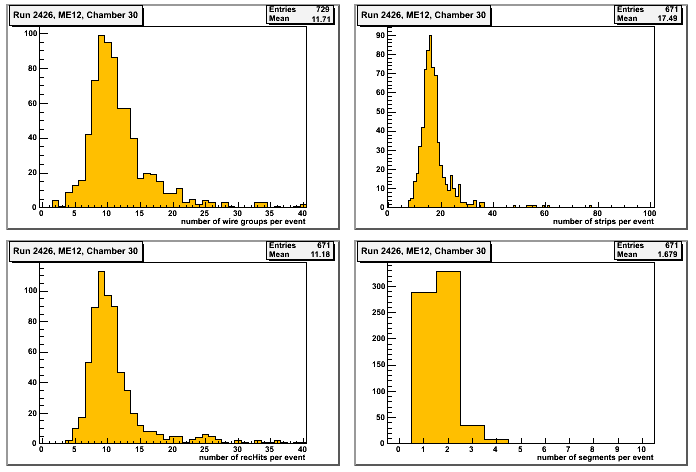

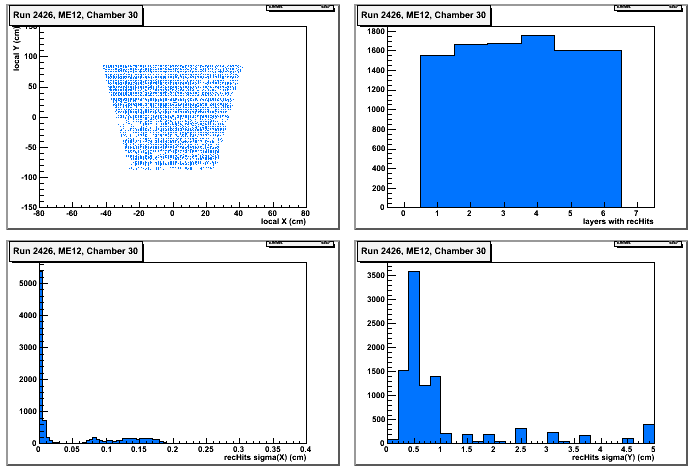

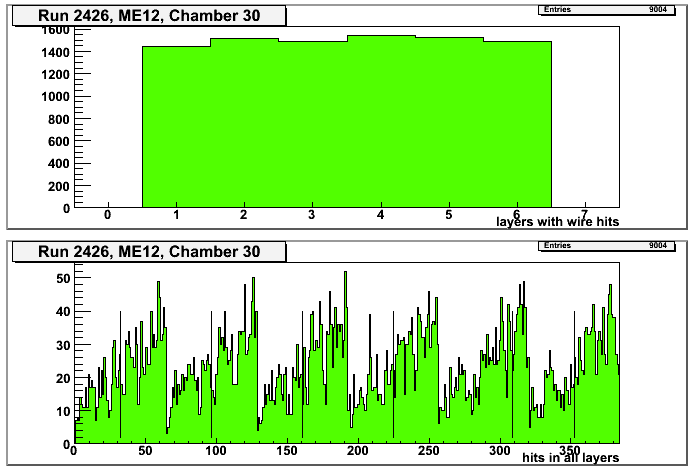

ME12 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

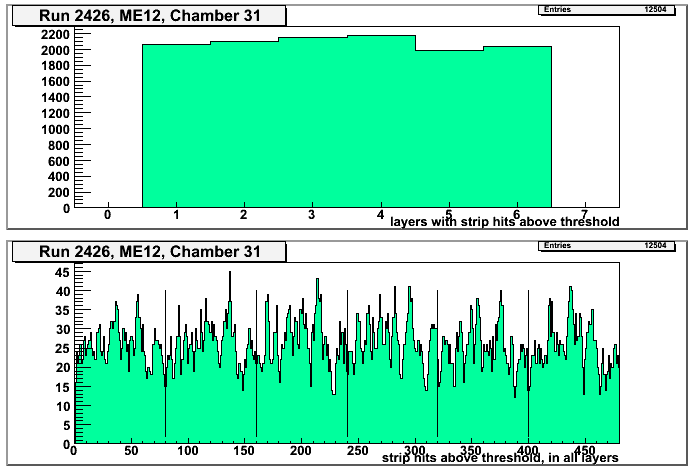

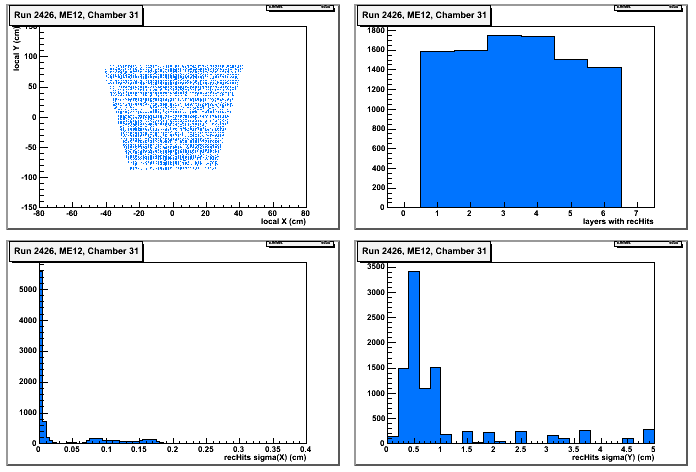

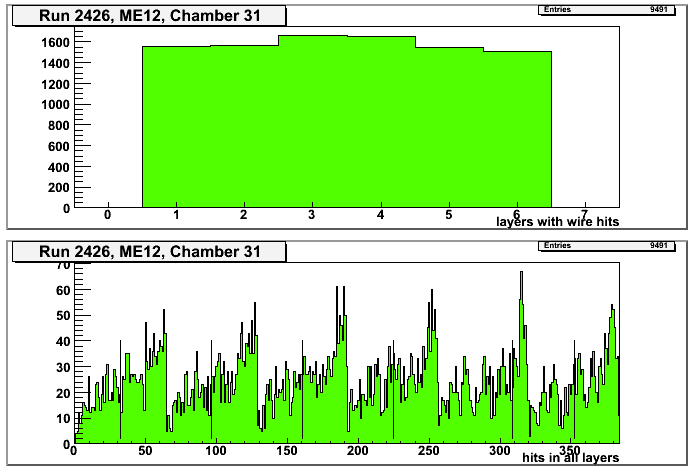

ME12 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

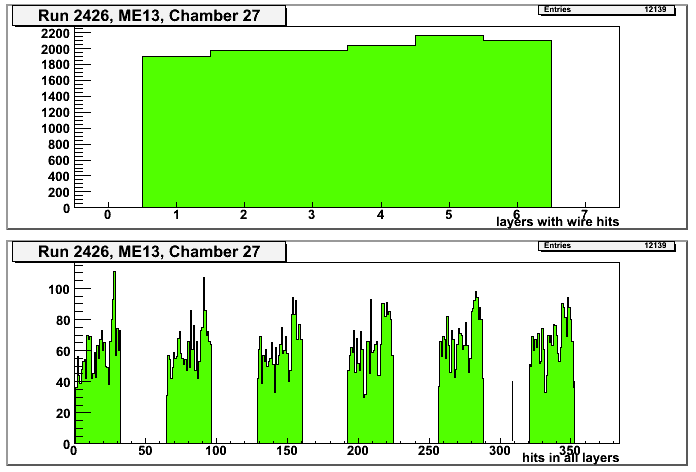

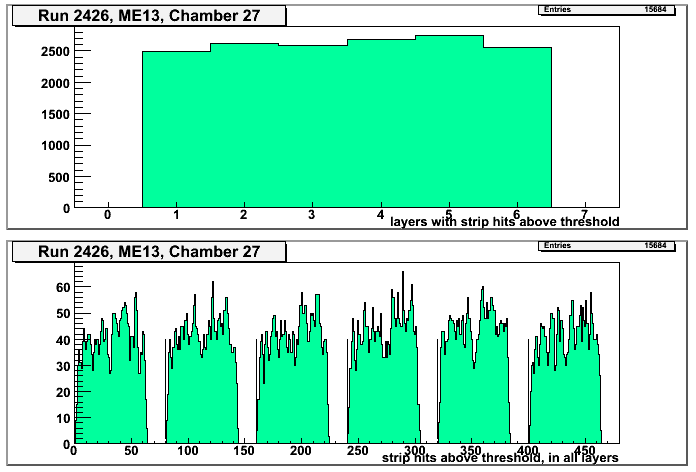

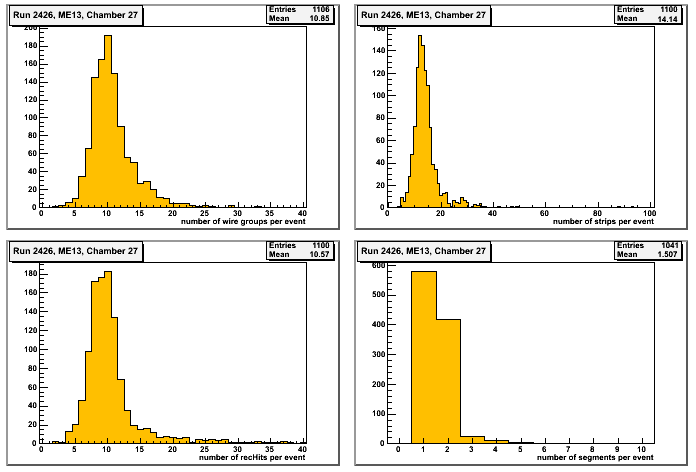

ME13 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

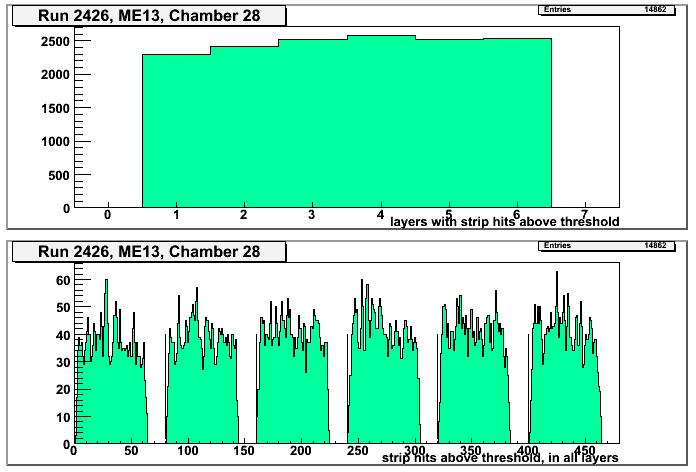

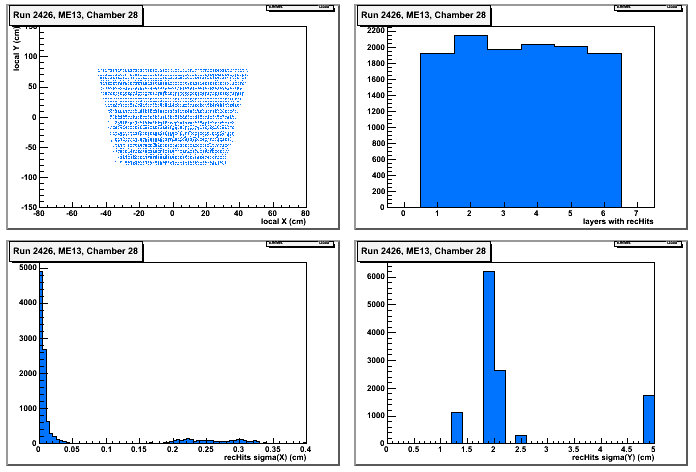

ME13 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

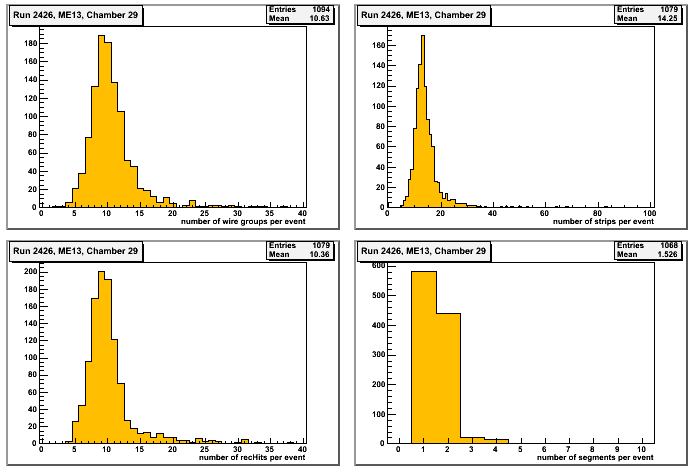

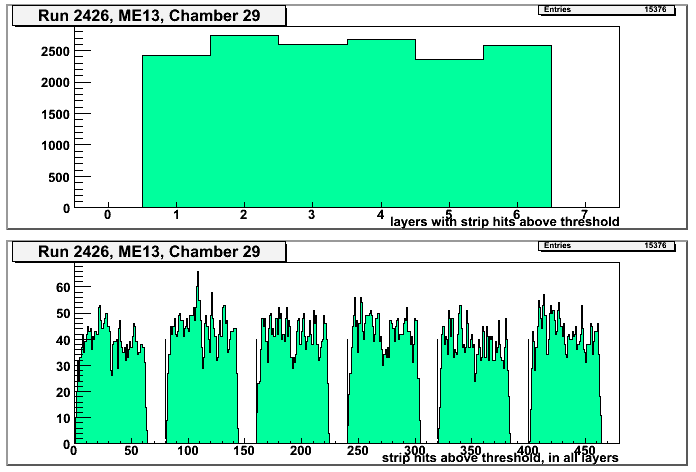

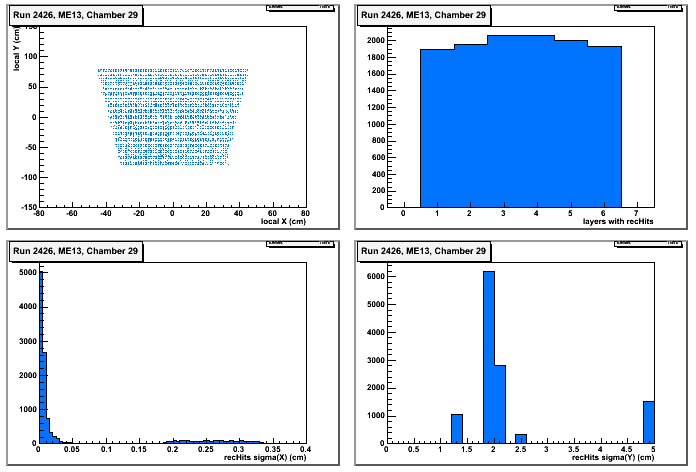

ME13 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

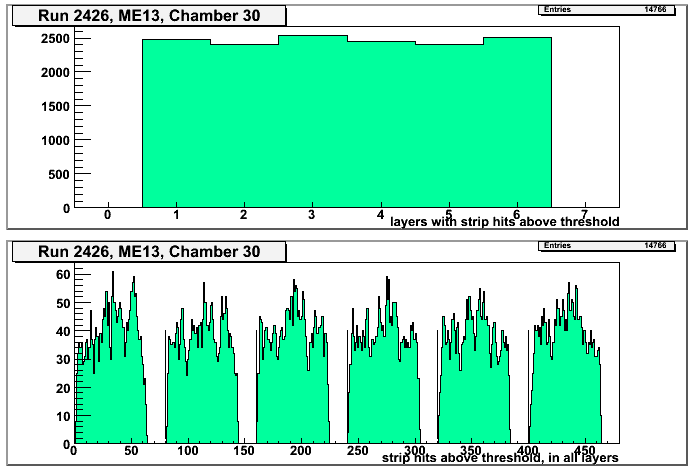

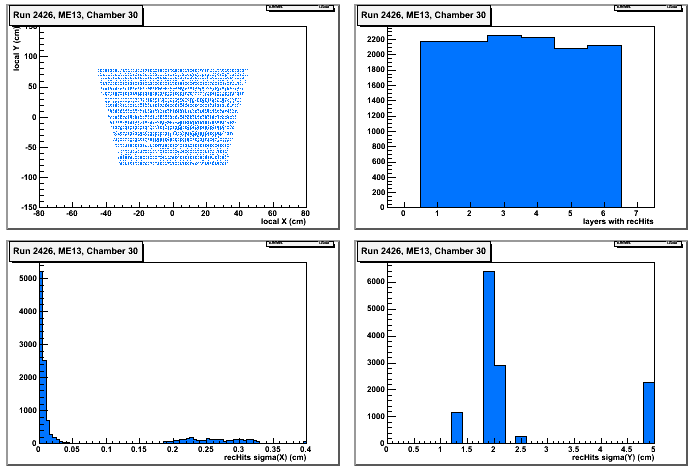

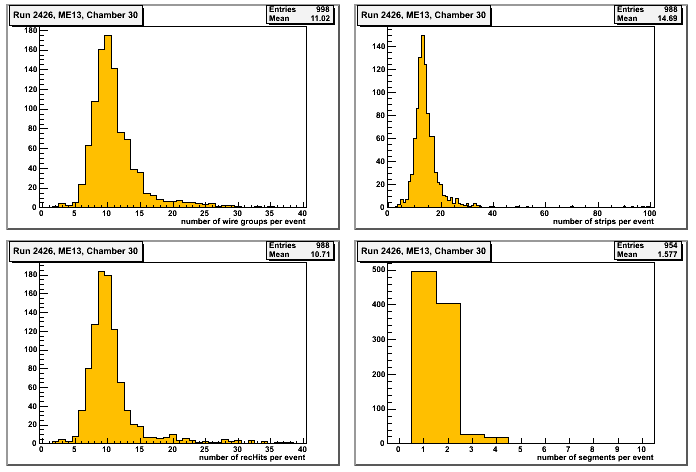

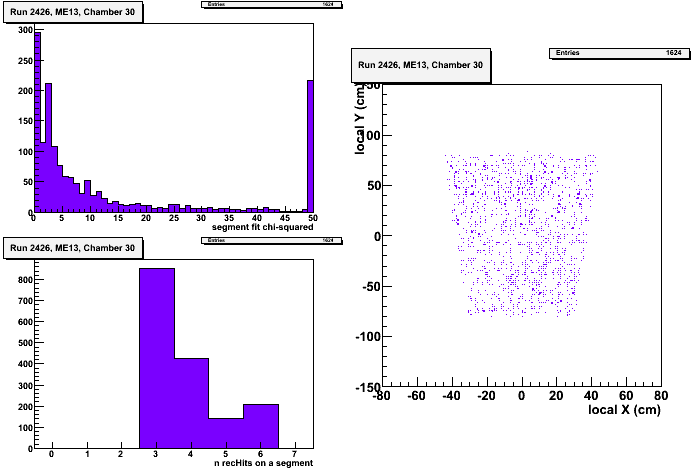

ME13 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

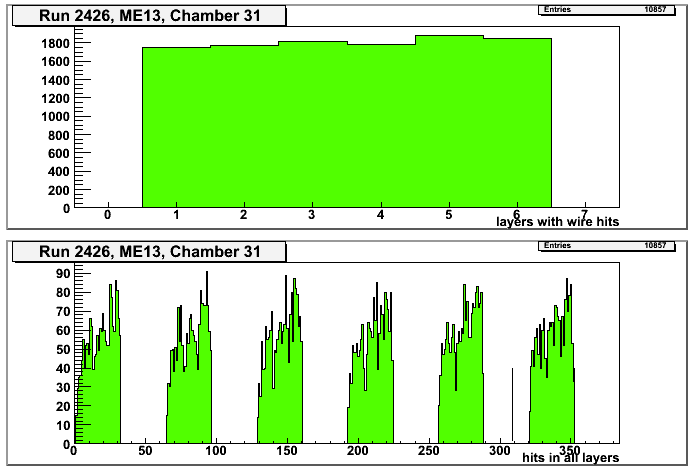

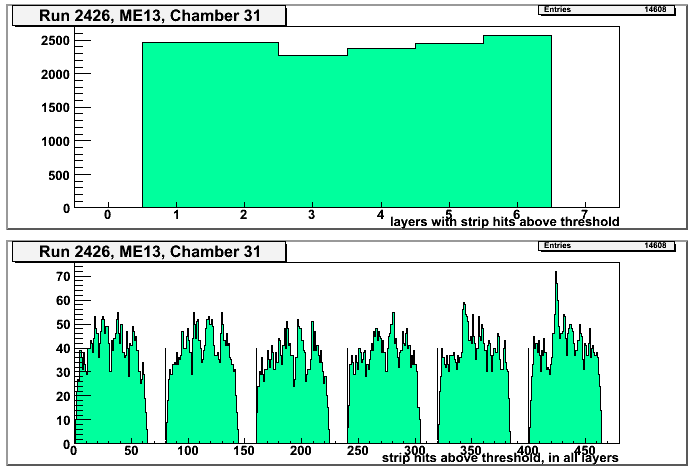

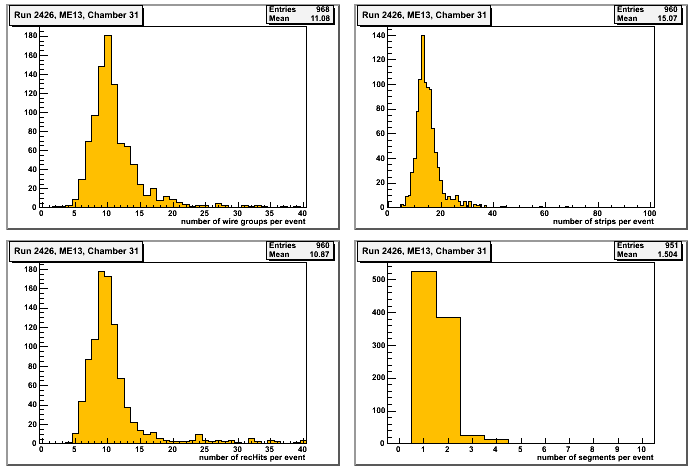

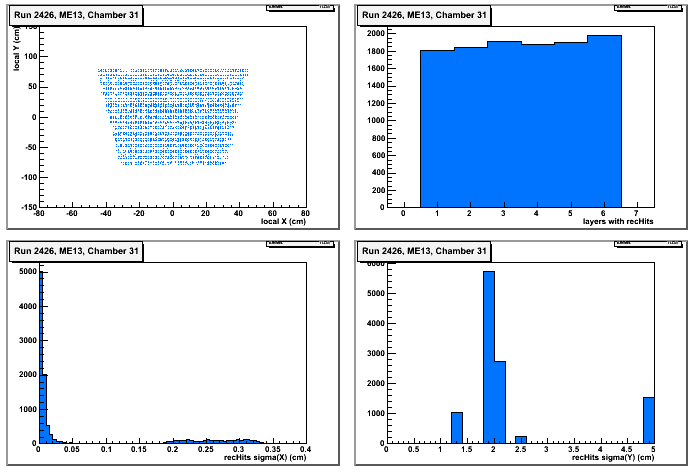

ME13 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

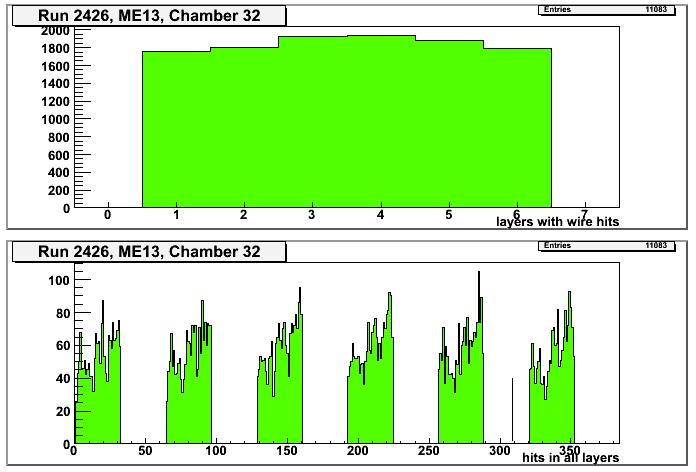

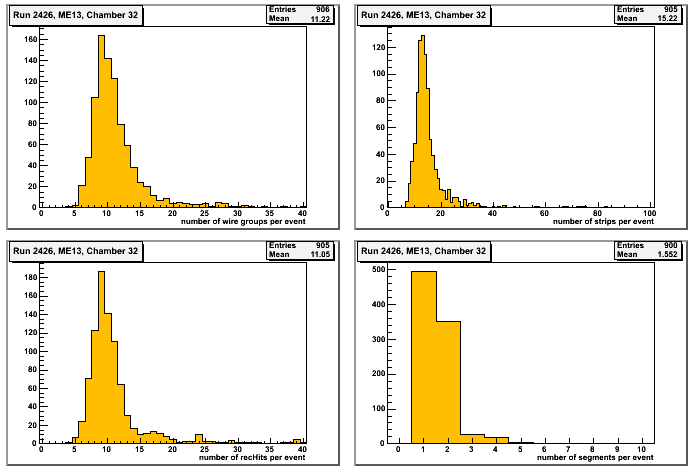

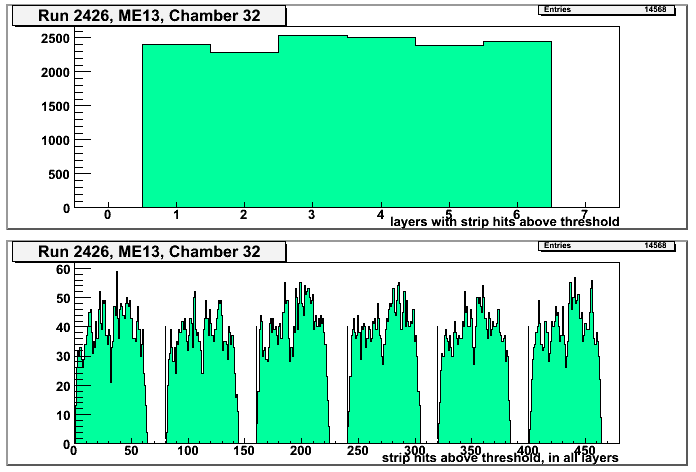

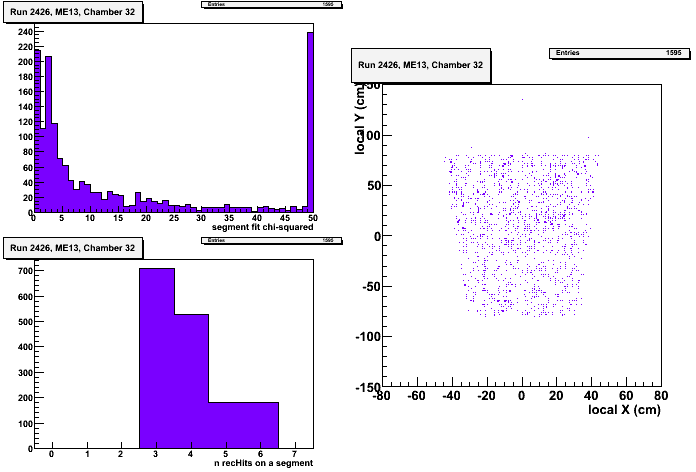

ME13 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

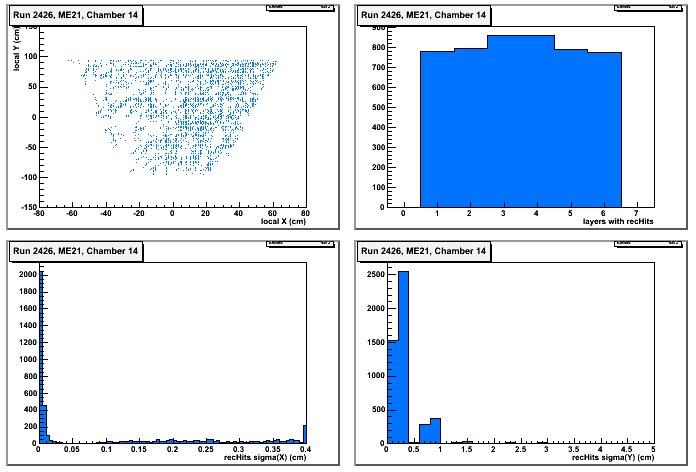

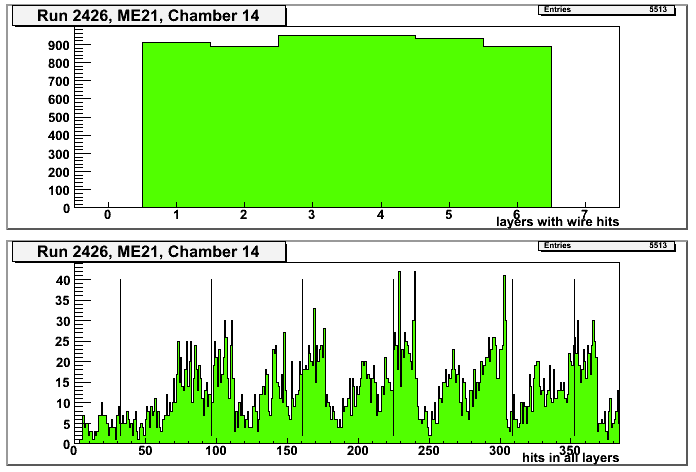

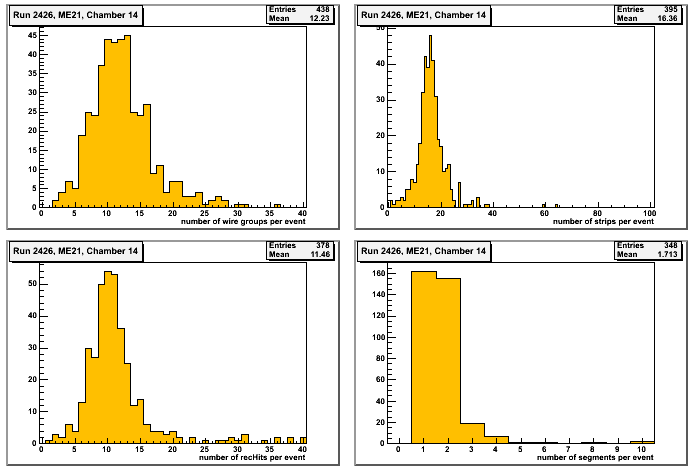

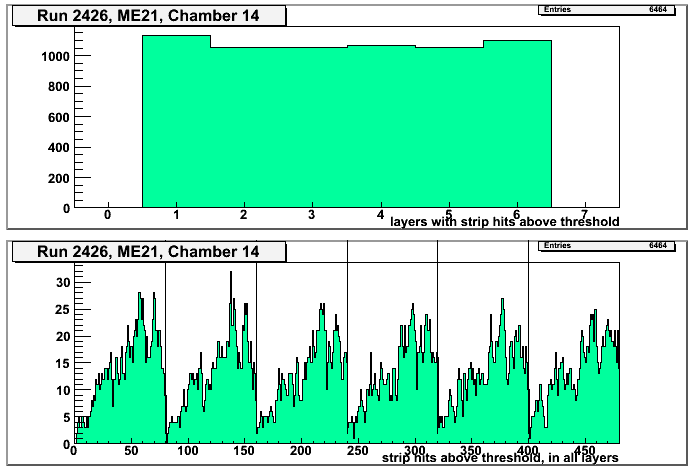

ME21 / 14	multiplicities   wire hits   strip hits   recHits   segments	Wire hit distribution rather irregular.

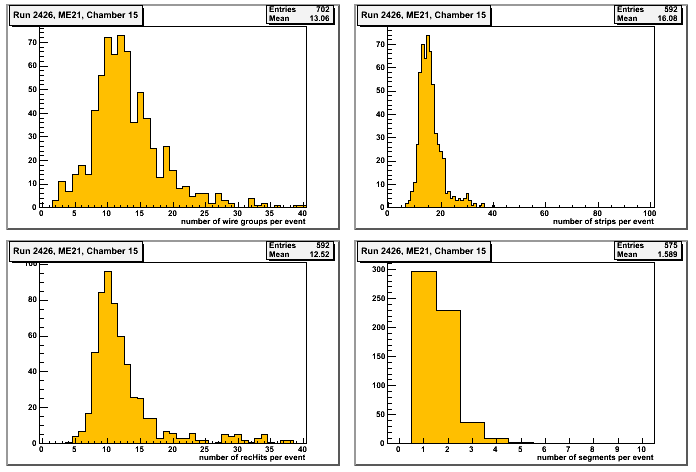

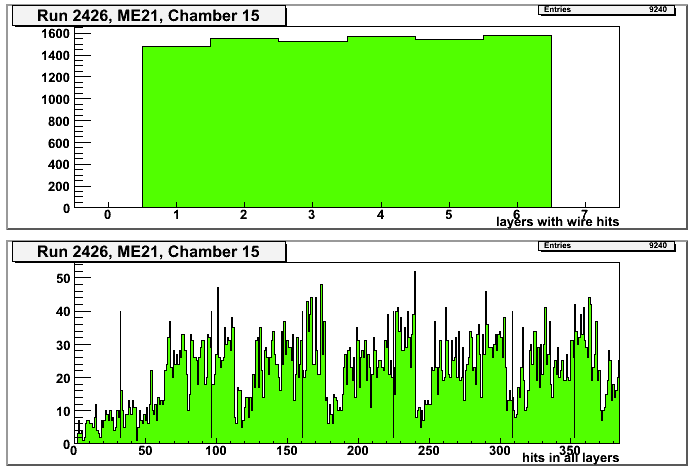

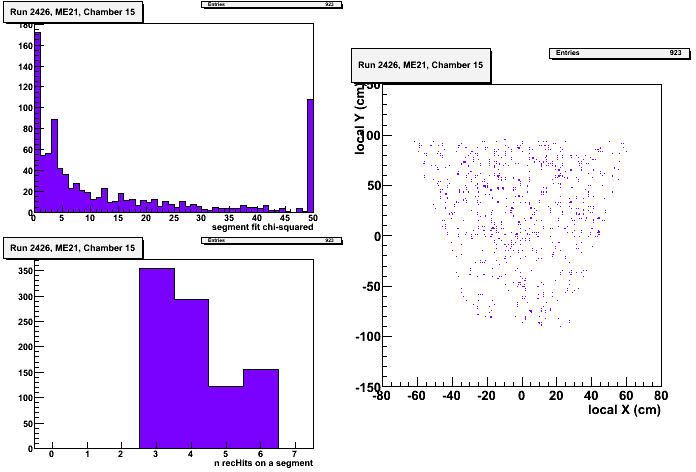

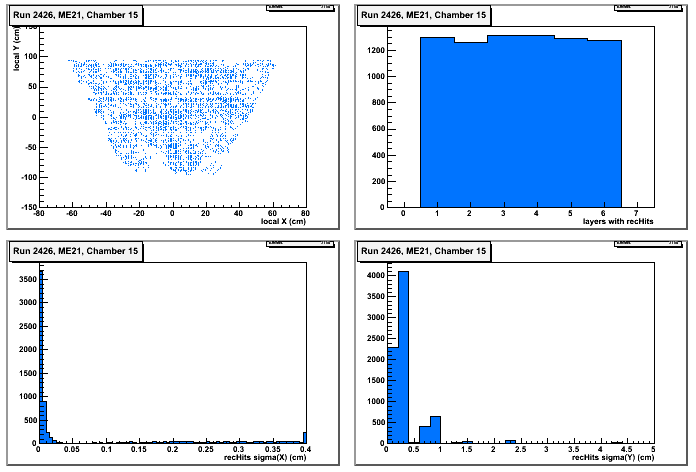

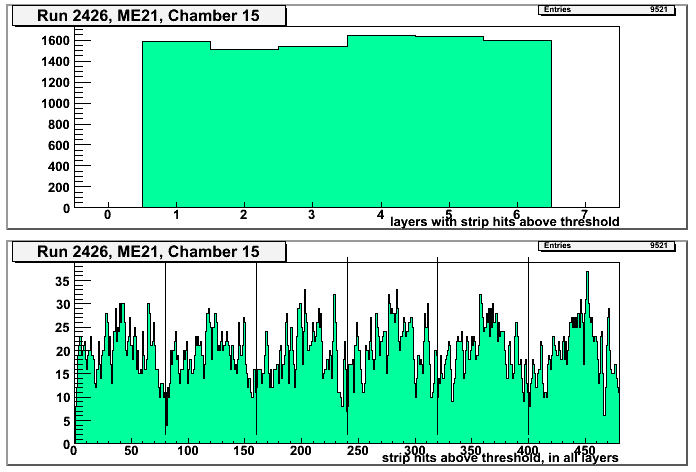

ME21 / 15	multiplicities   wire hits   strip hits   recHits   segments	Layer 1 clearly suppressed, in the wires.

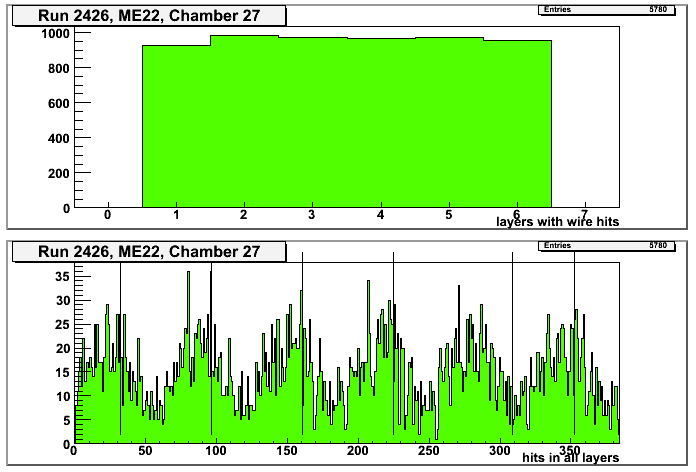

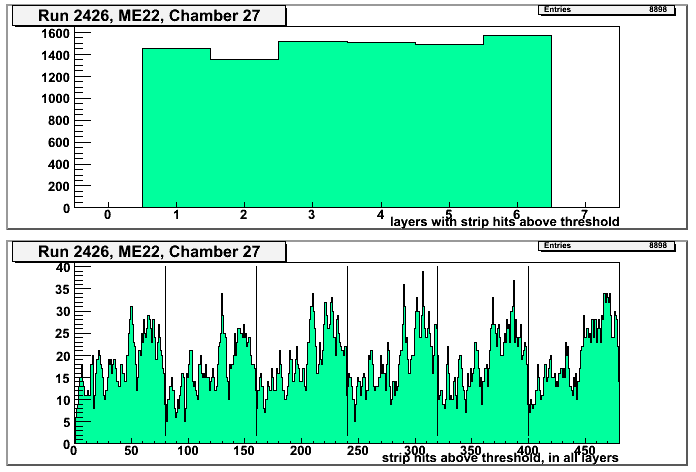

ME22 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

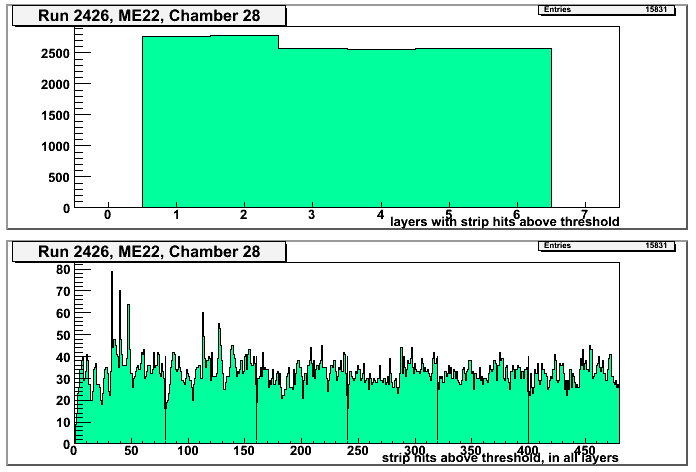

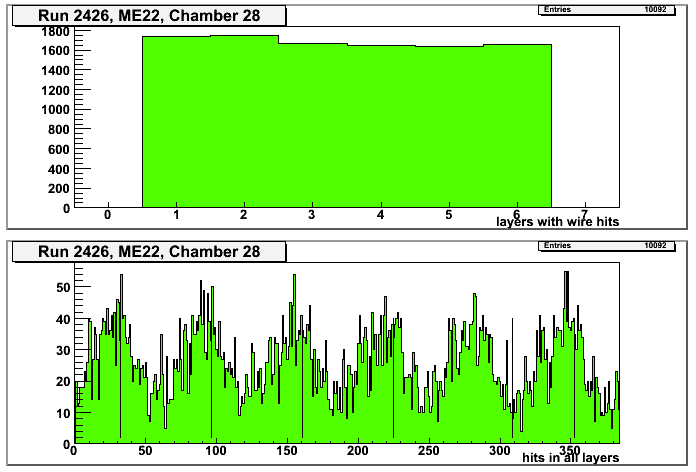

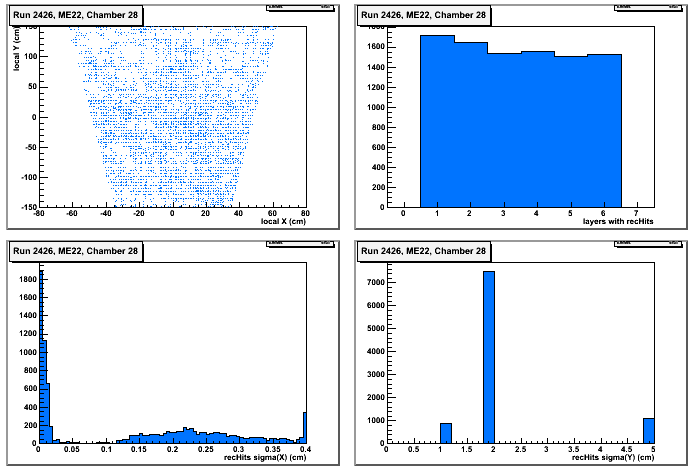

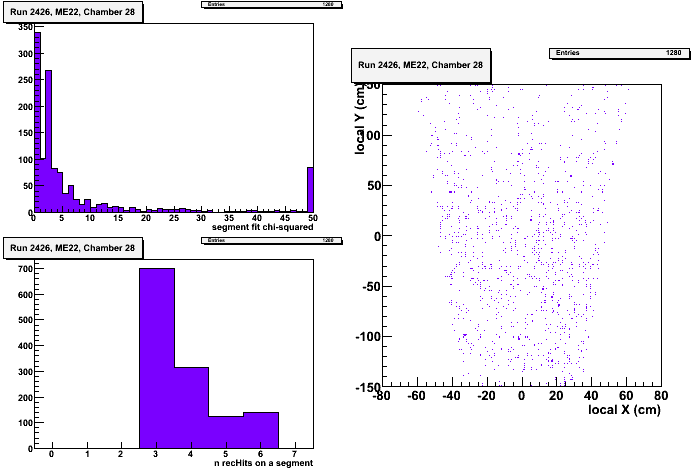

ME22 / 28	multiplicities   wire hits   strip hits   recHits   segments	some noisy strip channels in layers 1&2

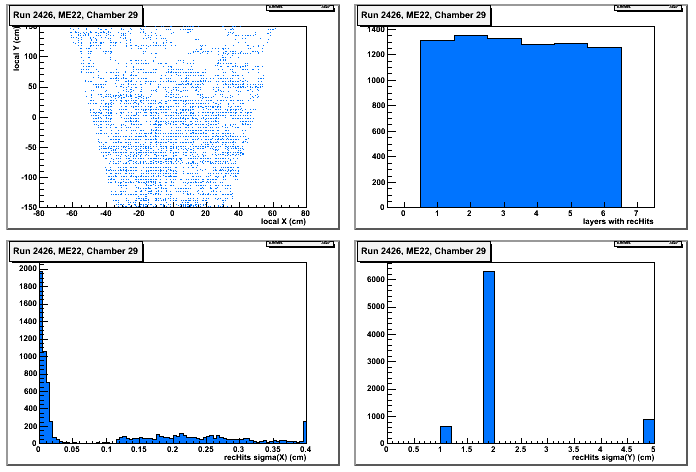

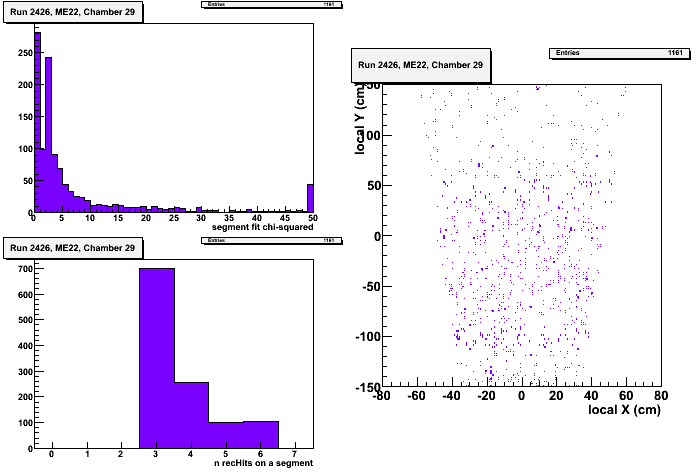

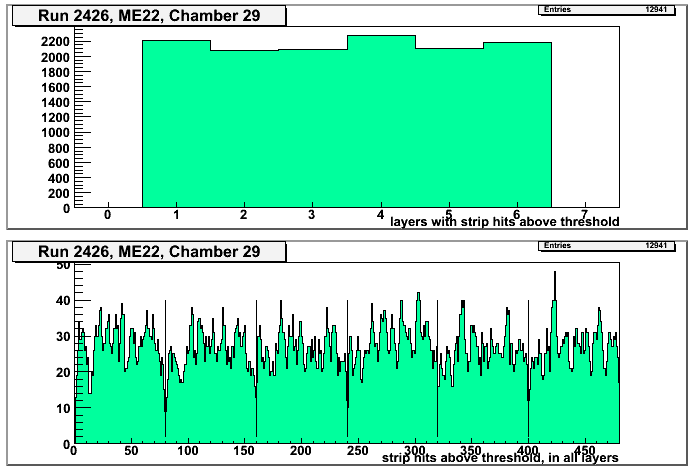

ME22 / 29	multiplicities   wire hits   strip hits   recHits   segments	Distribution in (X,Y) for recHits is clearly non-flat.

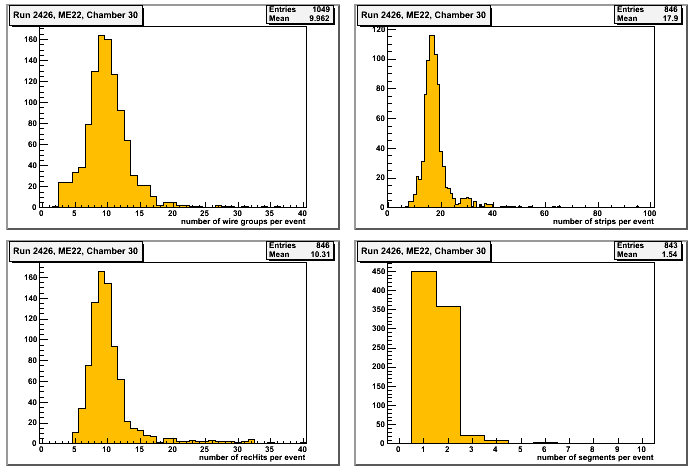

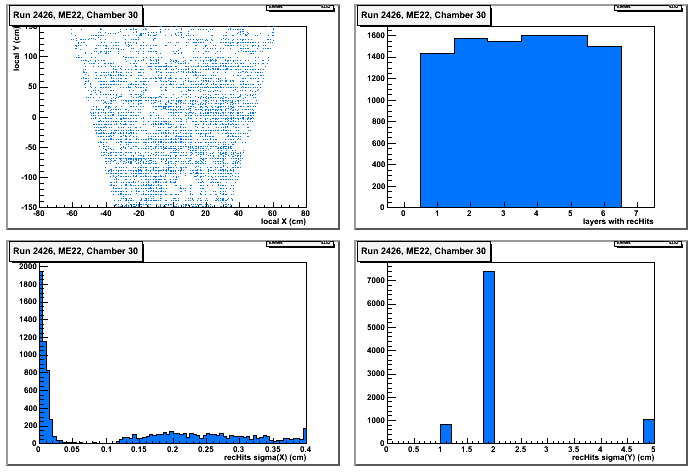

ME22 / 30	multiplicities   wire hits   strip hits   recHits   segments	one dead wire in layer 5

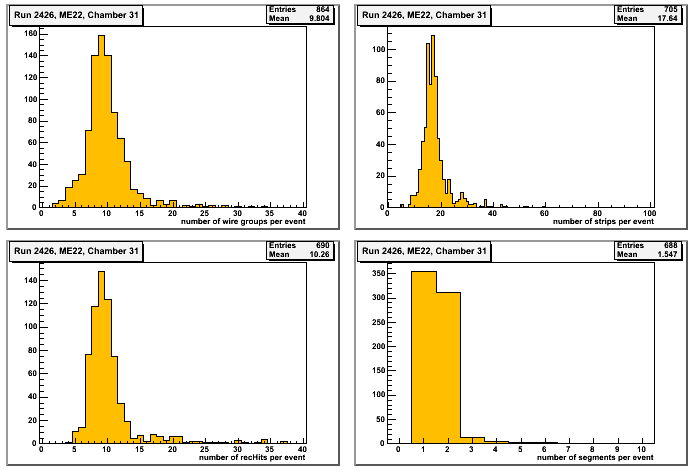

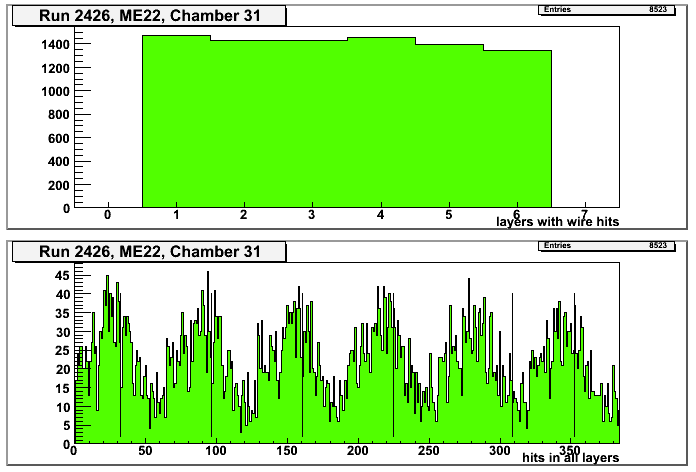

ME22 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

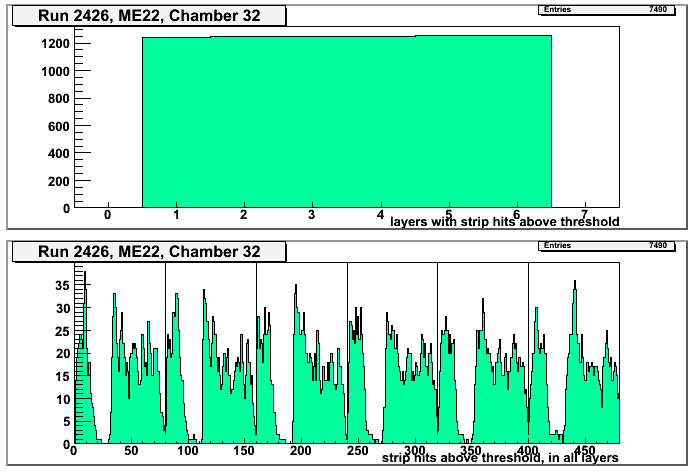

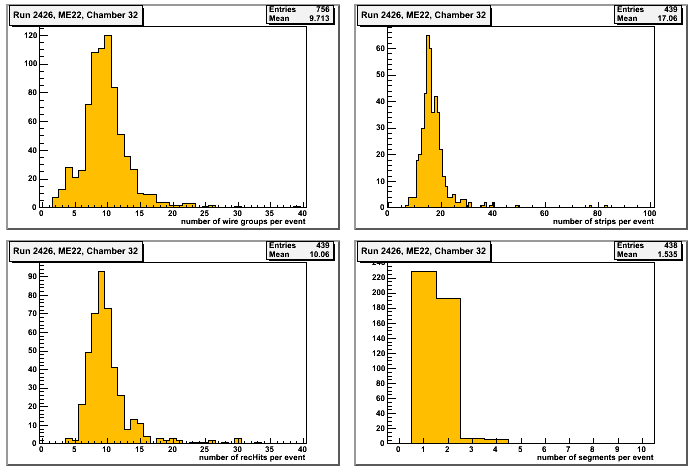

ME22 / 32	multiplicities   wire hits   strip hits   recHits   segments	Very strange distribution in strip hits - gaps.

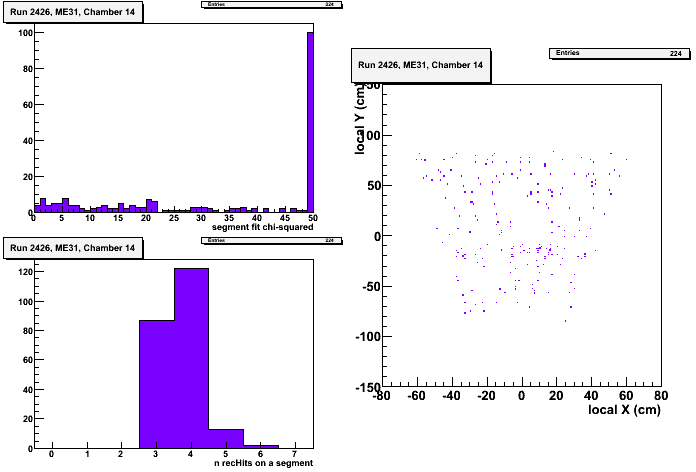

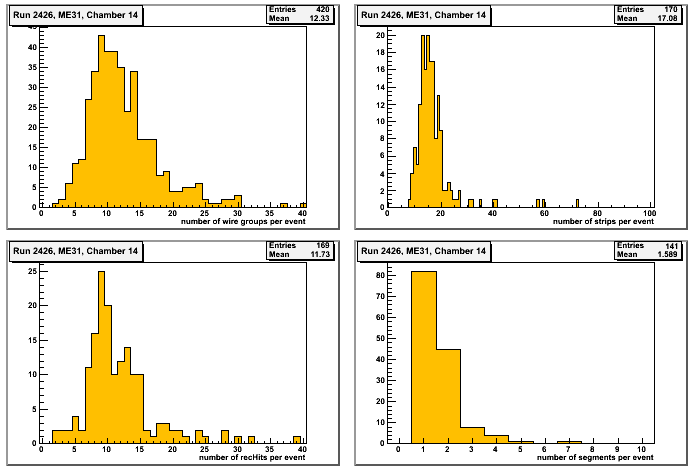

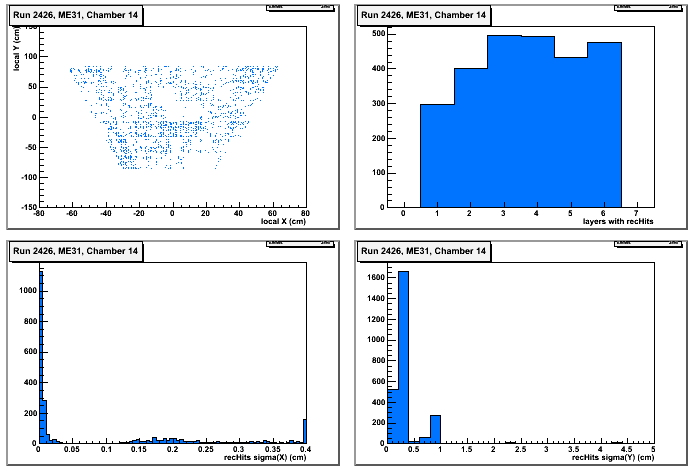

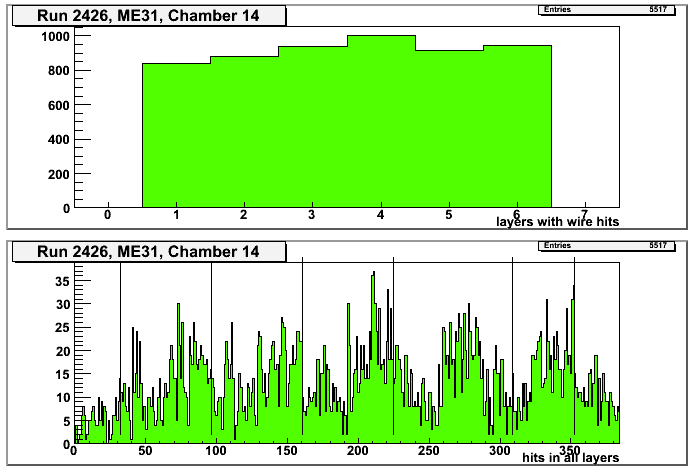

ME31 / 14	multiplicities   wire hits   strip hits   recHits   segments	Poor chi-squared for segments.

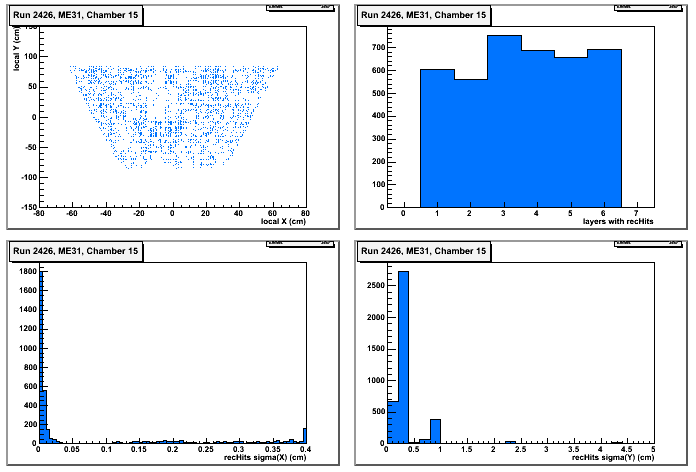

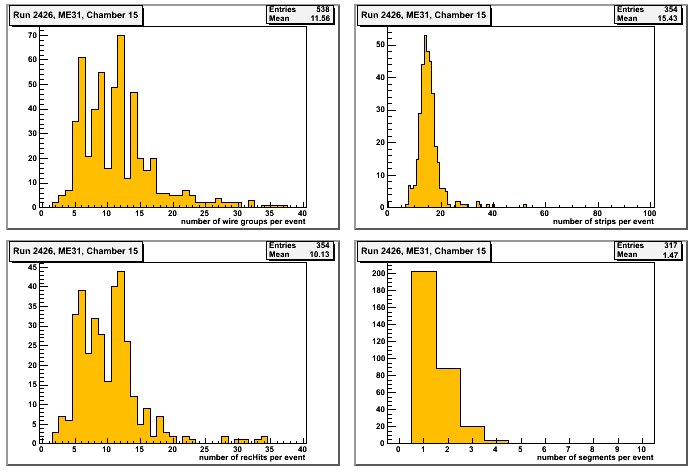

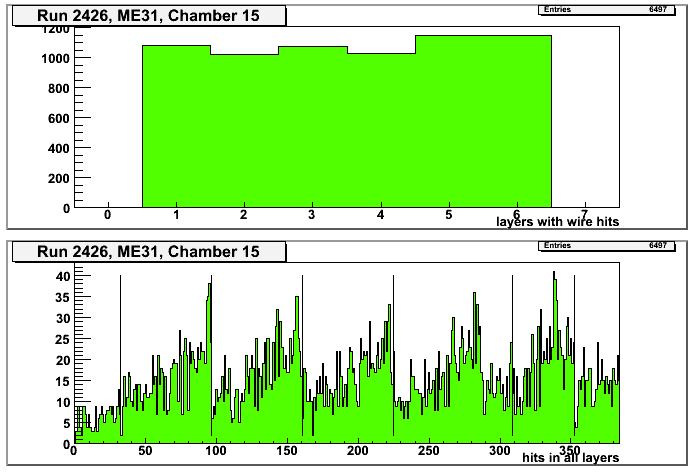

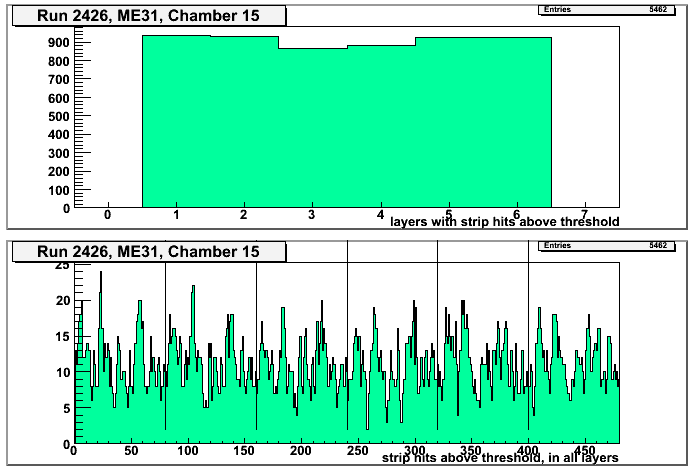

ME31 / 15	multiplicities   wire hits   strip hits   recHits   segments	Odd distribution for N wire groups. Cross-talk?? Poor chi-squared for segments.

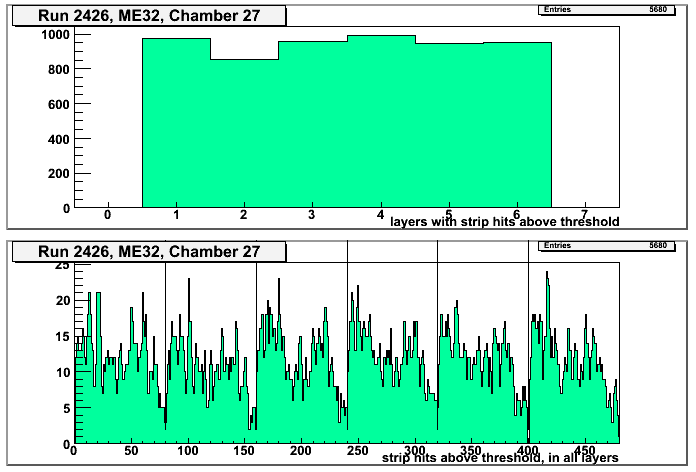

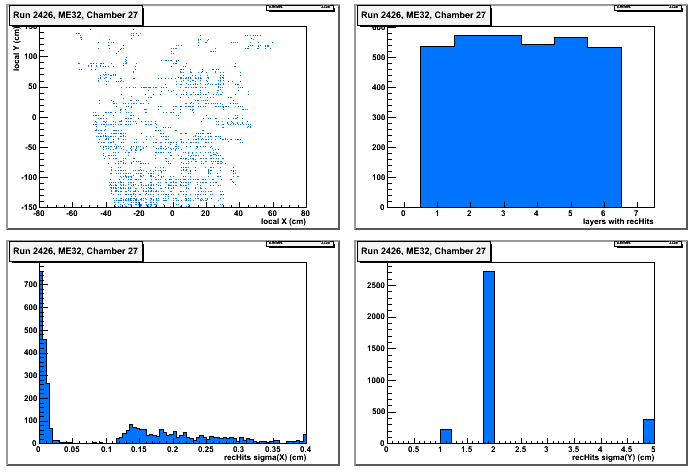

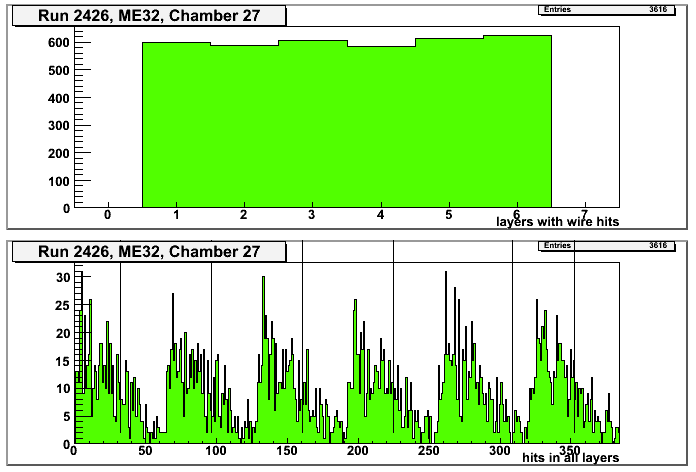

ME32 / 27	multiplicities   wire hits   strip hits   recHits   segments	Uneven distribution in (X,Y) for recHits.

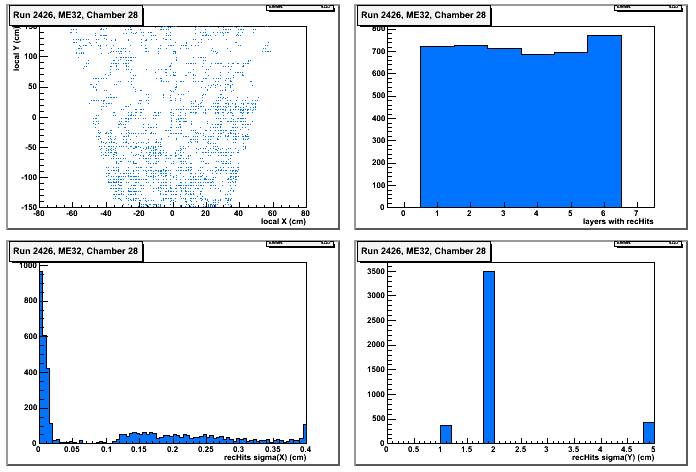

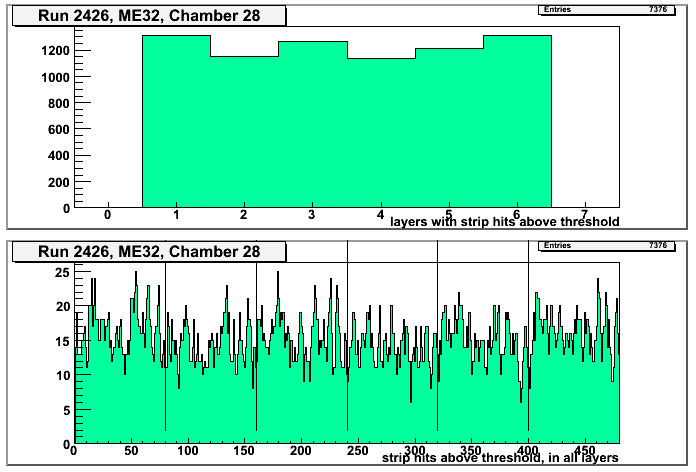

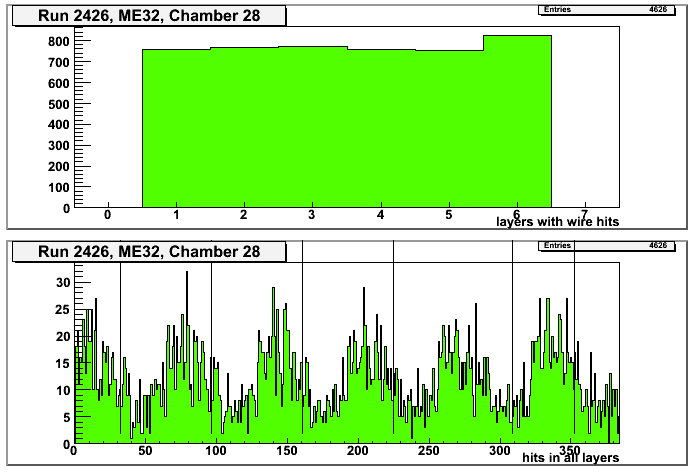

ME32 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

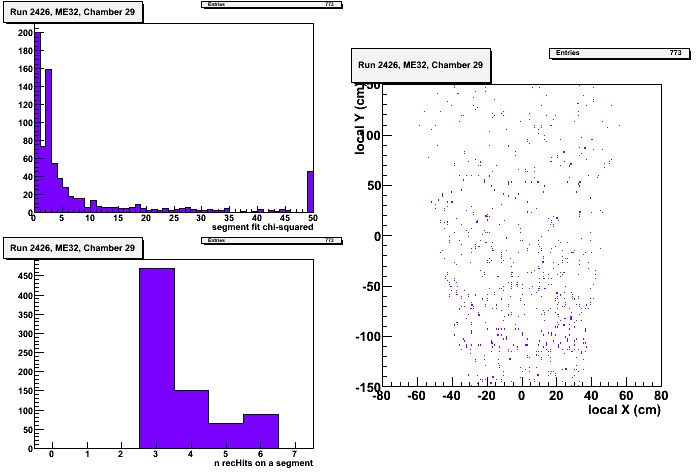

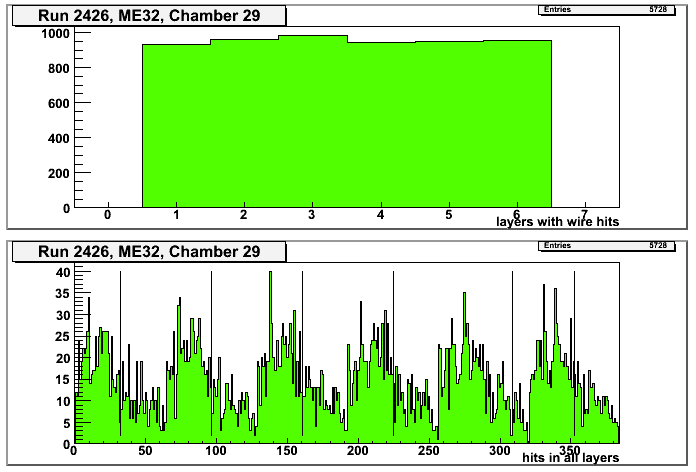

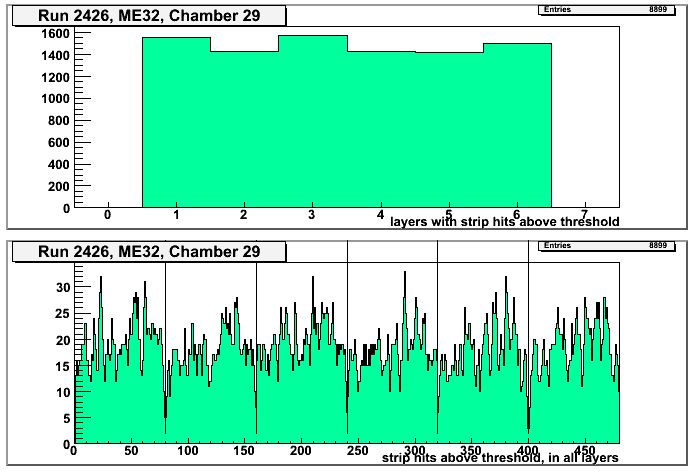

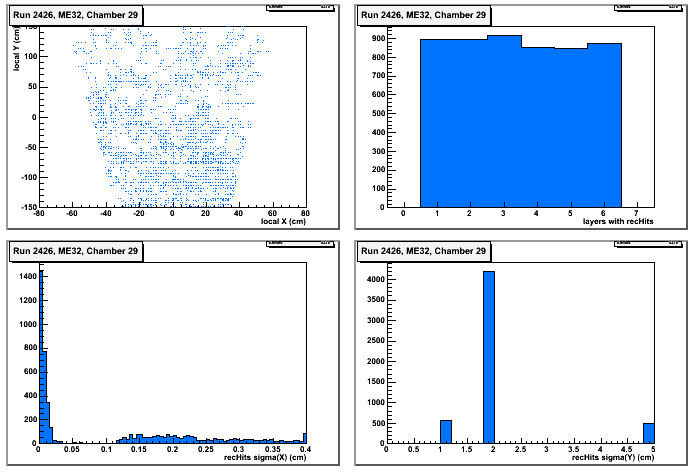

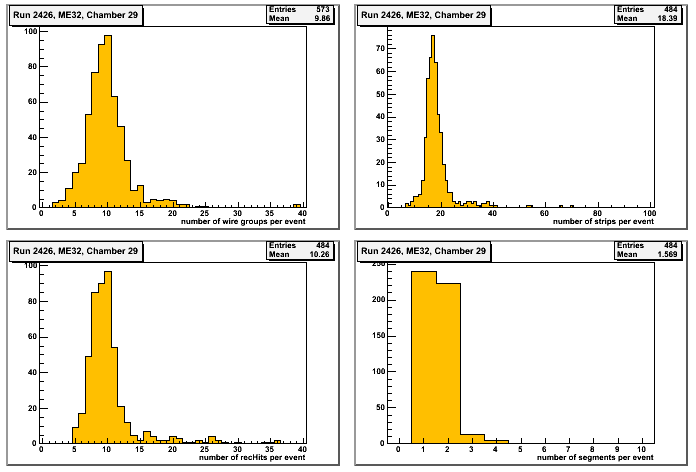

ME32 / 29	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

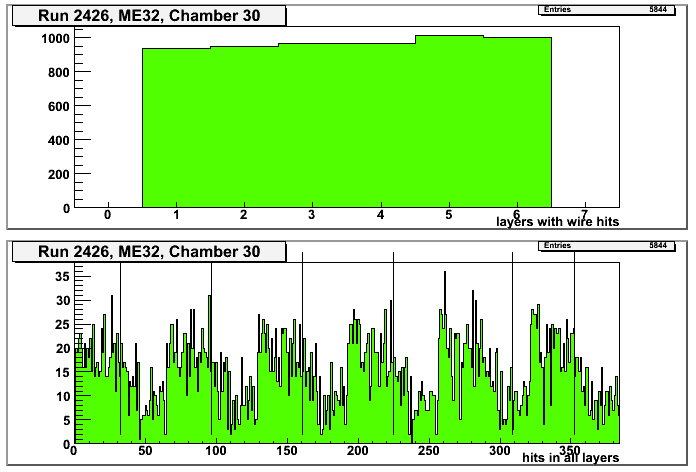

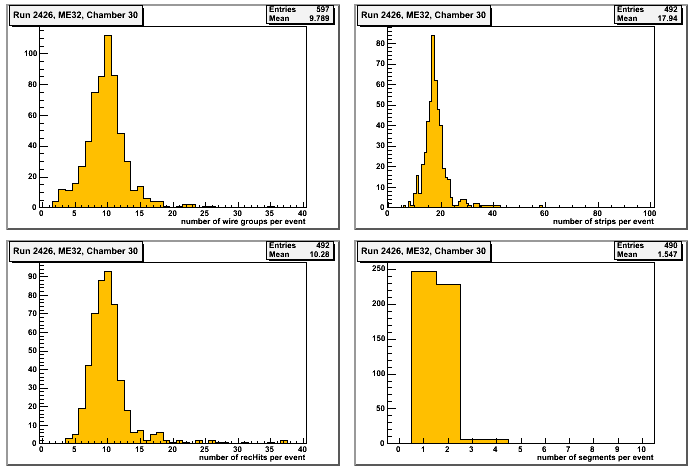

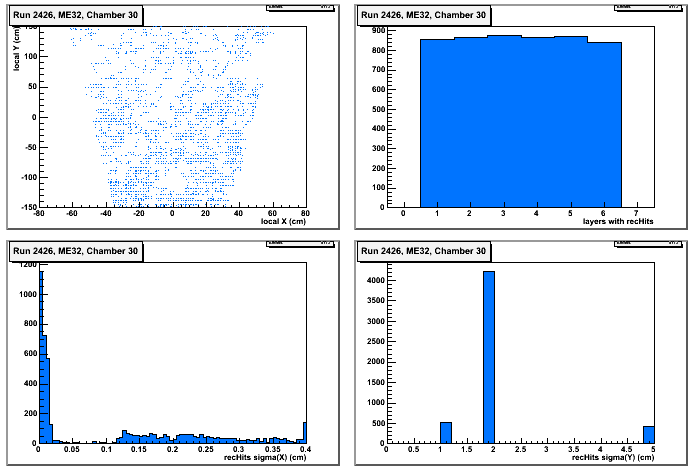

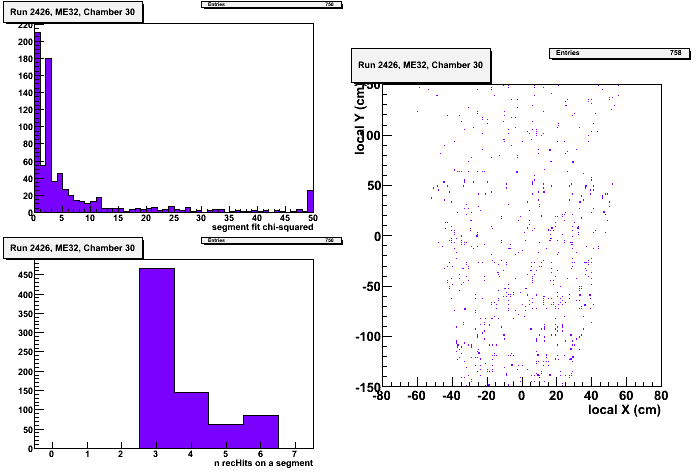

ME32 / 30	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

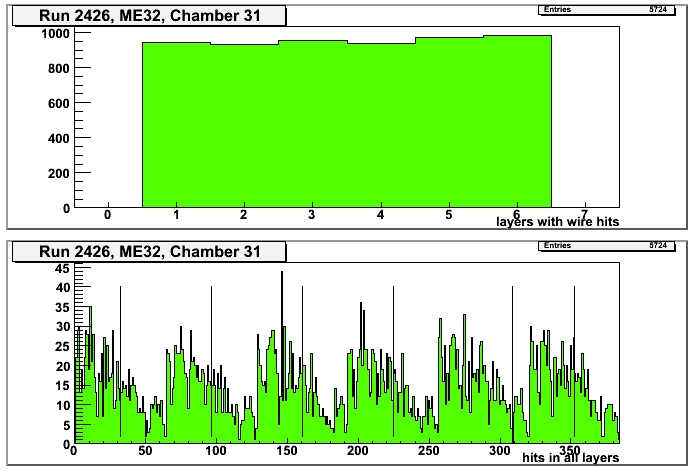

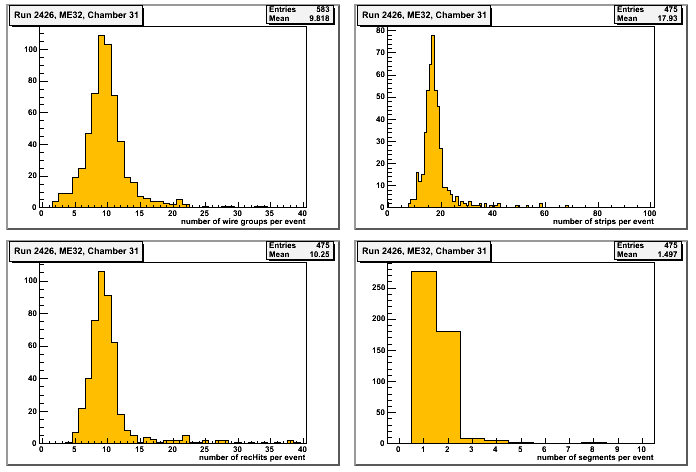

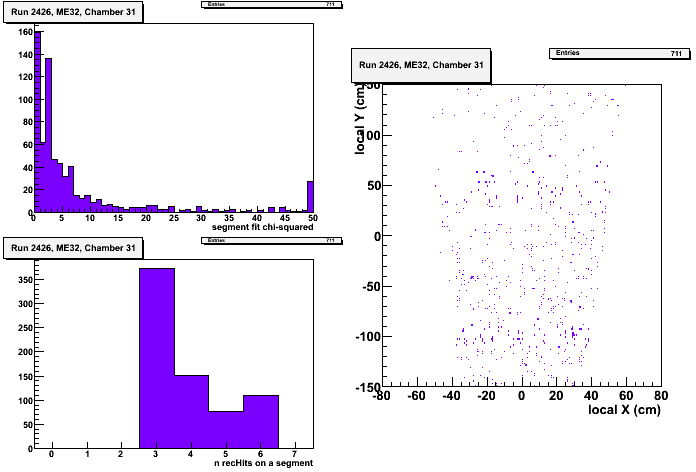

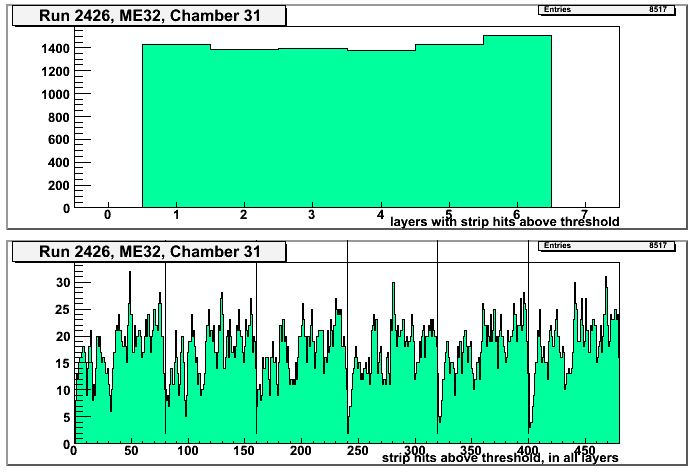

ME32 / 31	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"
