MTCC plots for Run 2335

	gif	The ESR code which shows overall occupancies. ME1 is empty.

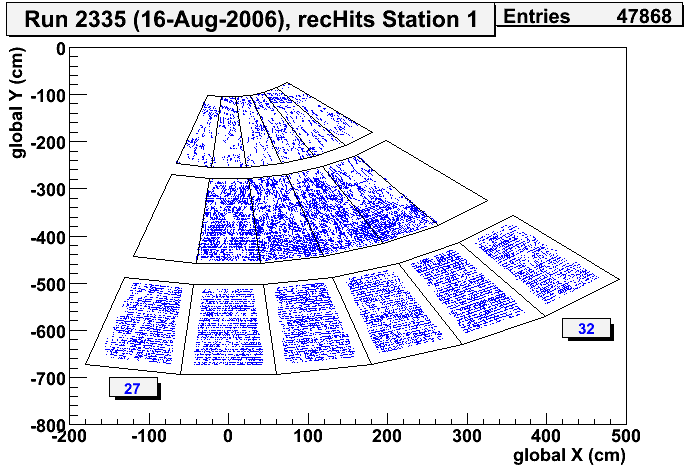

	gif	Station 1 recHits ME1/3 is now fixed!

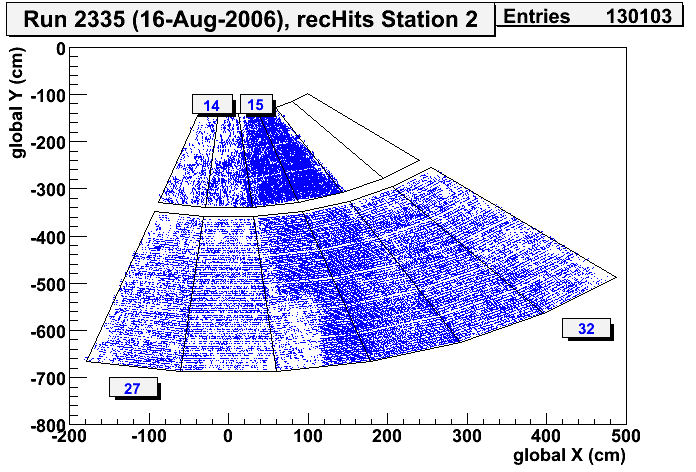

	gif	Station 2 recHits
	gif	Station 3 recHits (Pardon the incorrect drawing of ME3/1 boundaries.)

station/ring	links to plots	comments

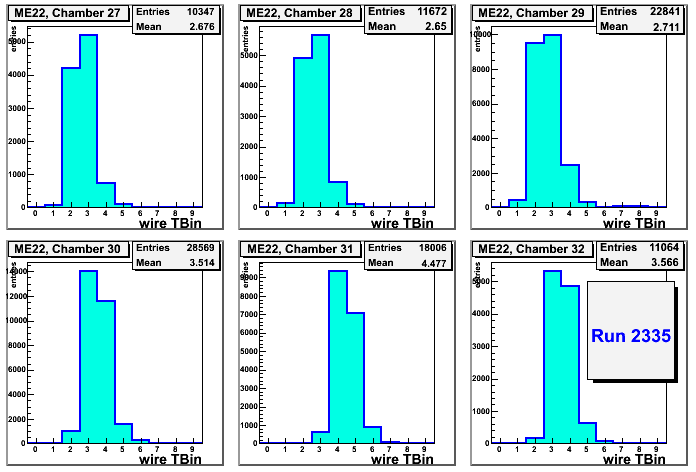

ME22	Wire Time Bins    strips peak Time	ME22/29 has a significant number of events with a strip peak time in the 7th and 8th bin, for the wires. ME22/28 the same, in the strips.

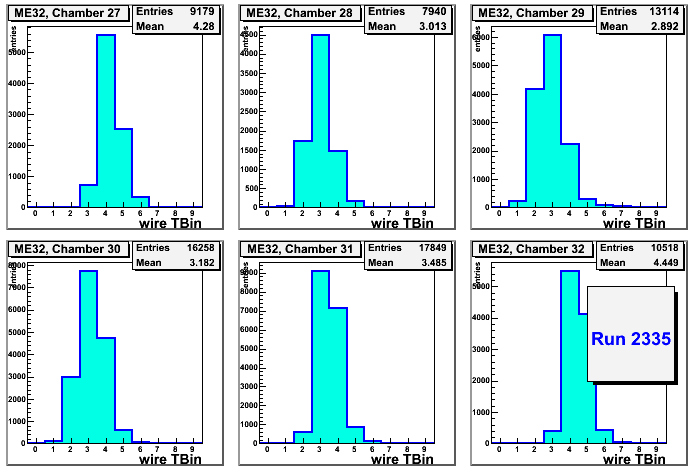

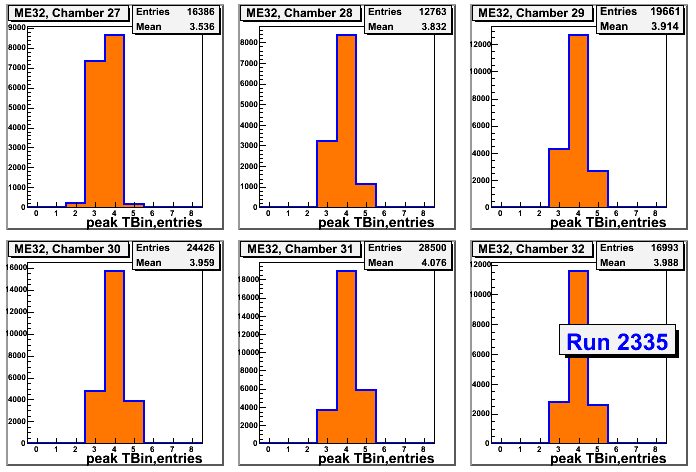

ME32	Wire Time Bins    strips peak Time	OK

chamber	links to plots	comments

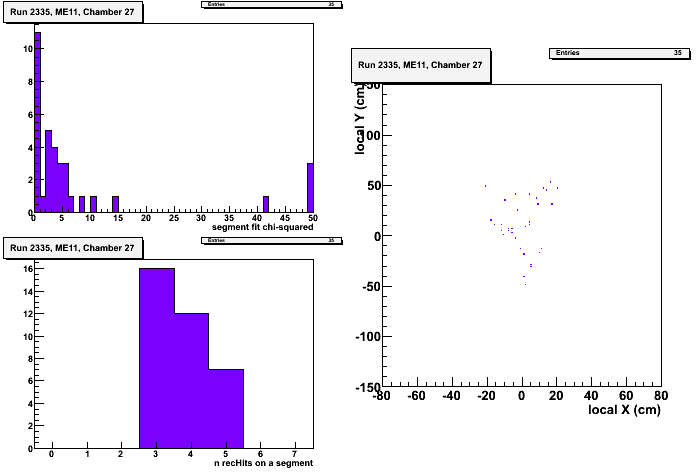

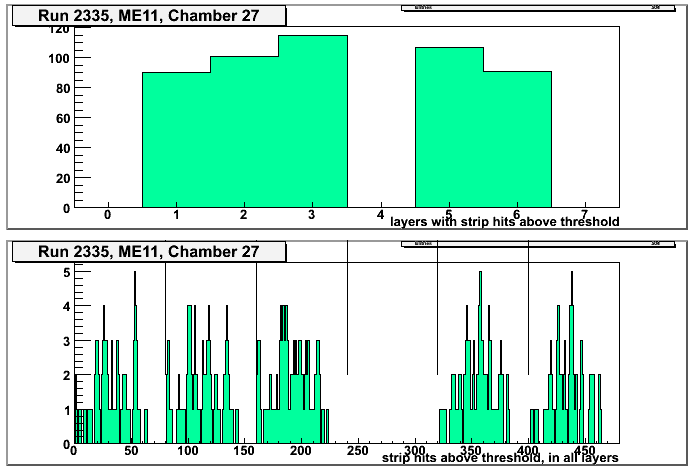

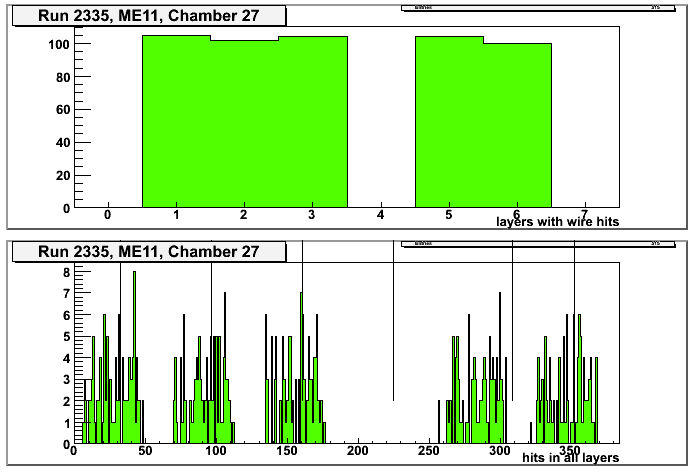

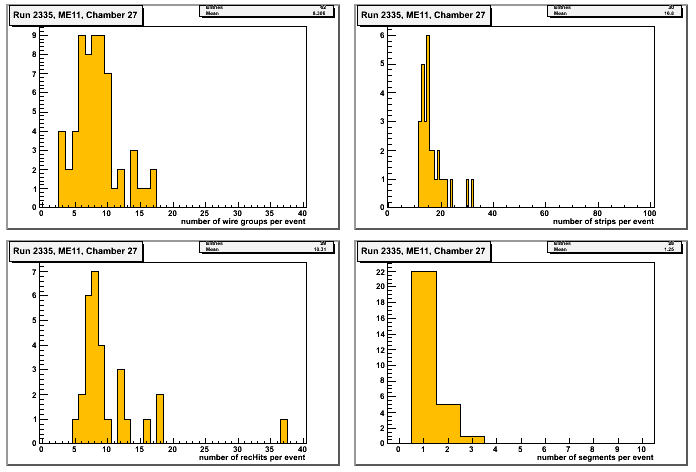

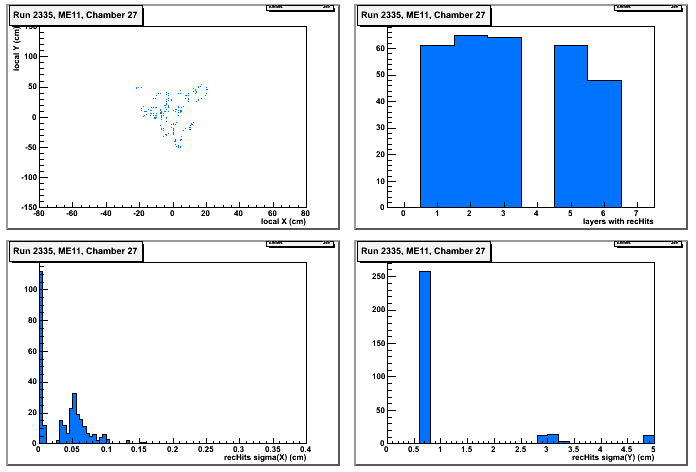

ME11 / 27	multiplicities   wire hits   strip hits   recHits   segments	No wires or strips for layer 4! (Also spotted by Nikolai Terentiev.)

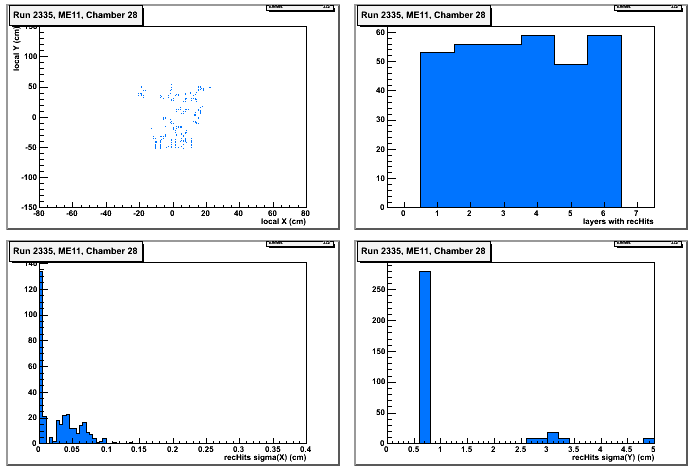

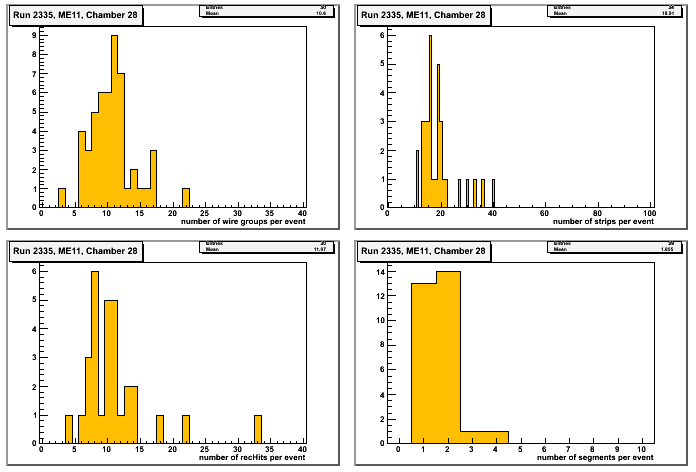

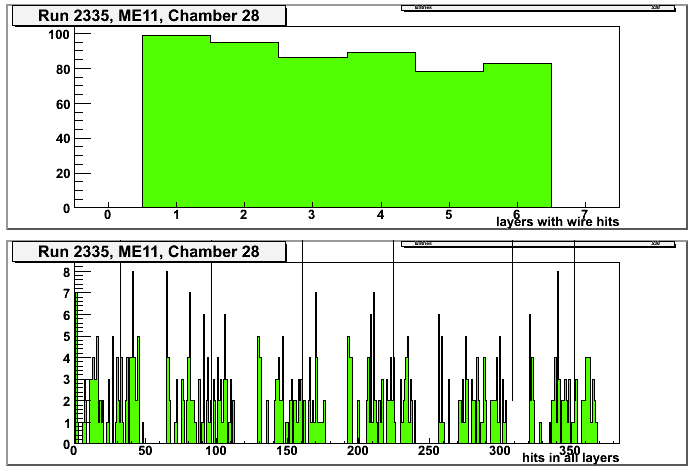

ME11 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

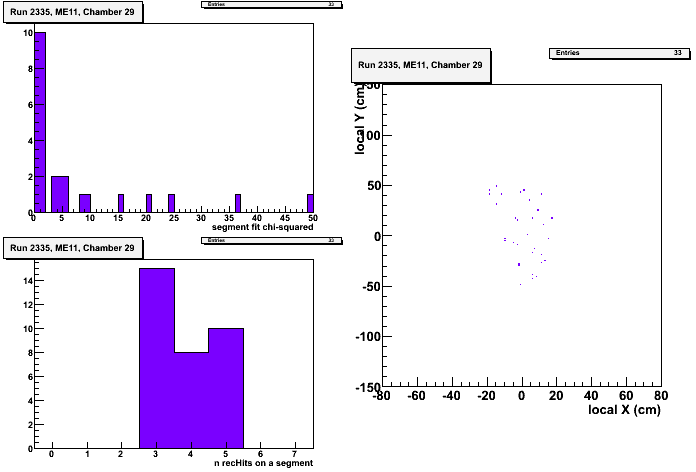

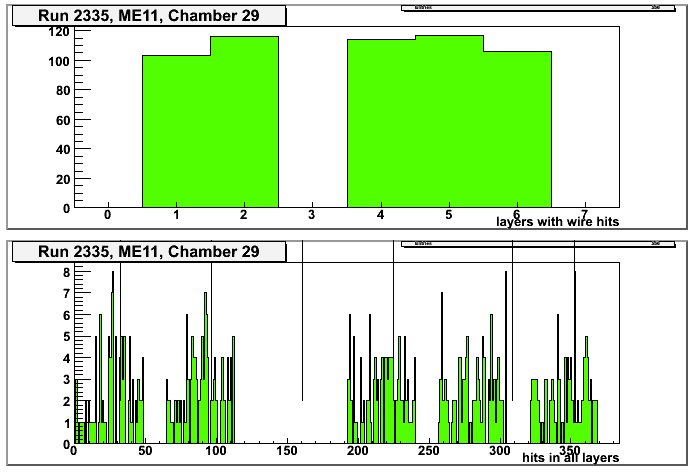

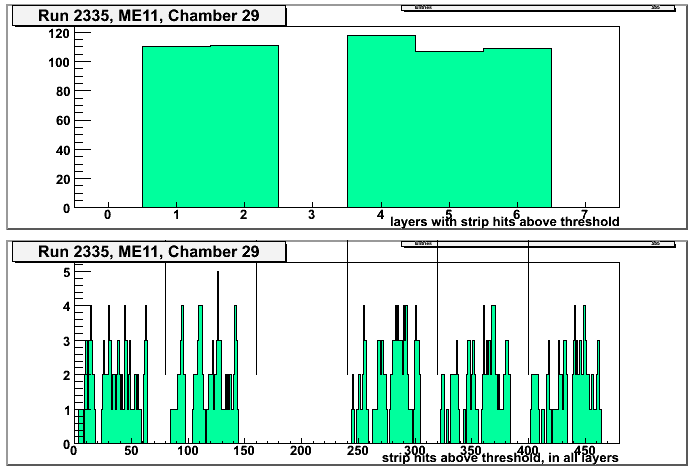

ME11 / 29	multiplicities   wire hits   strip hits   recHits   segments	No wires or strips for layer 3! (Also spotted by Nikolai Terentiev.)

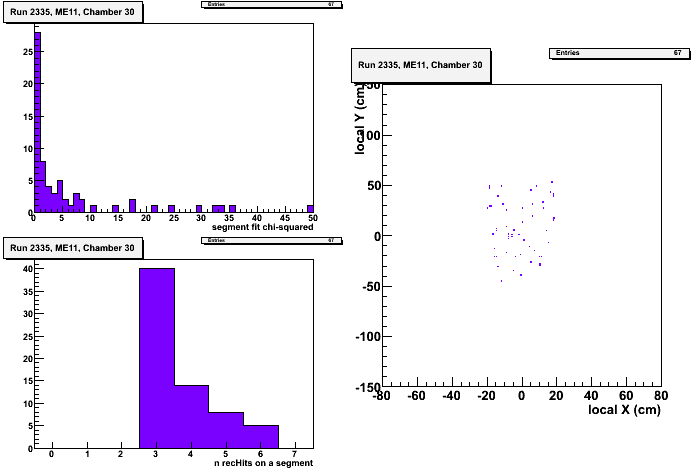

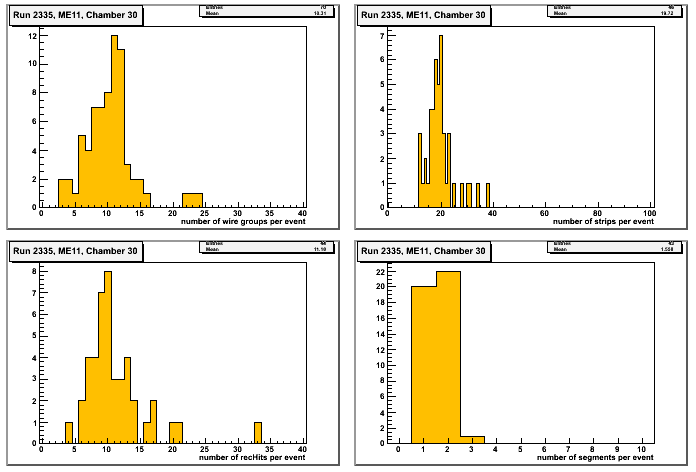

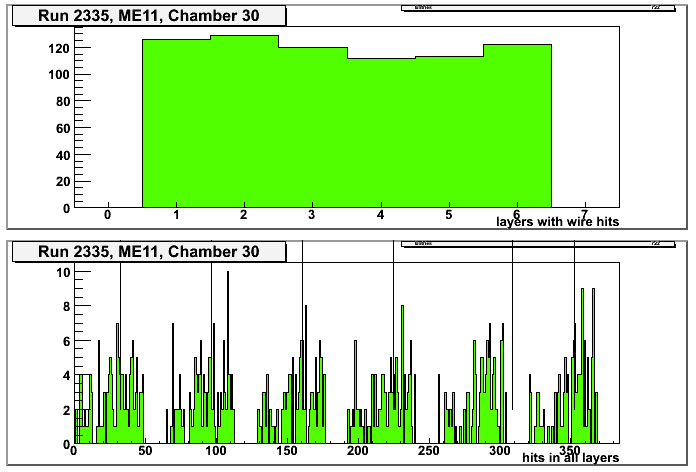

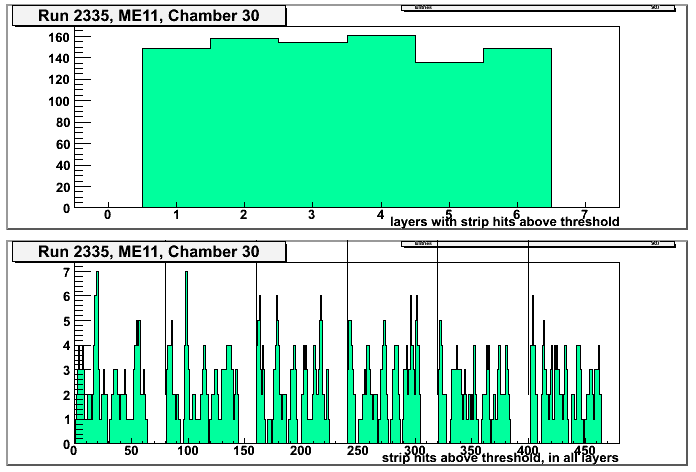

ME11 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

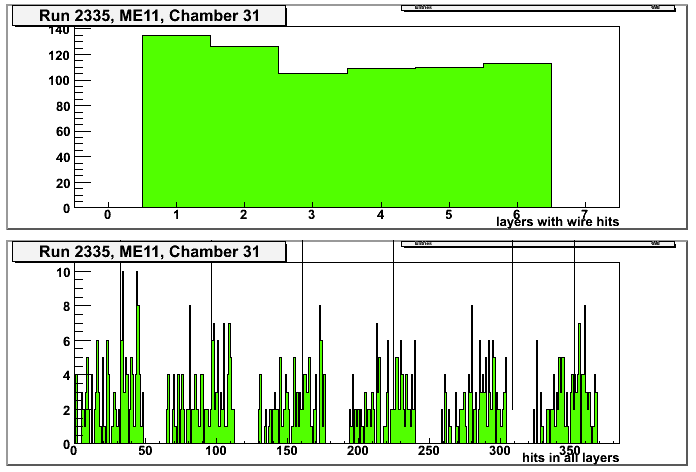

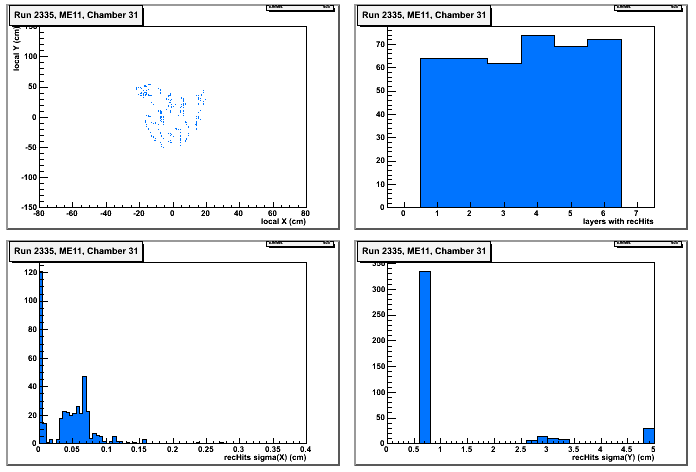

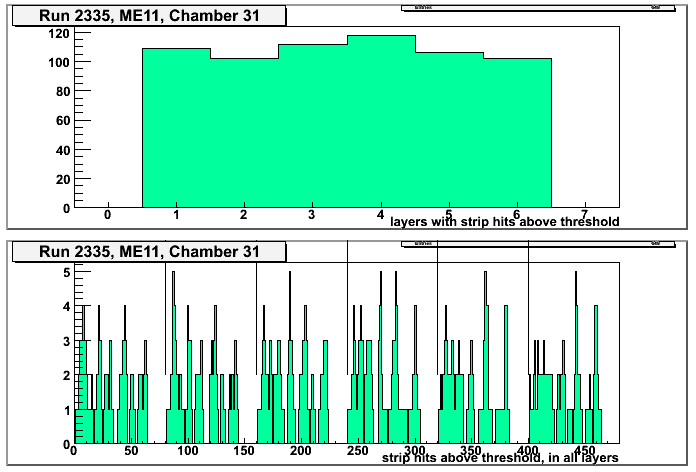

ME11 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

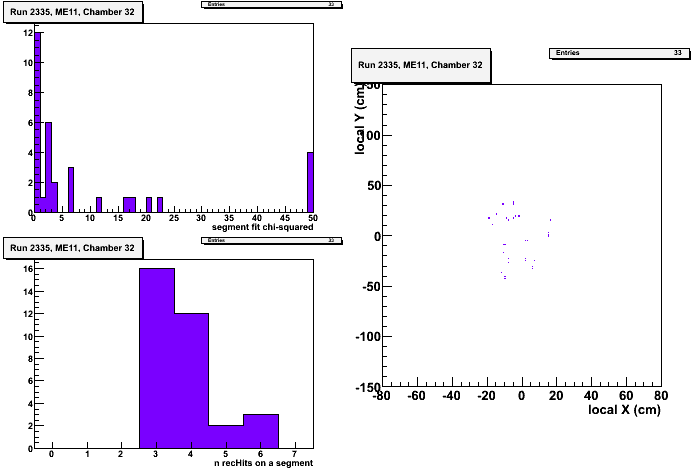

ME11 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

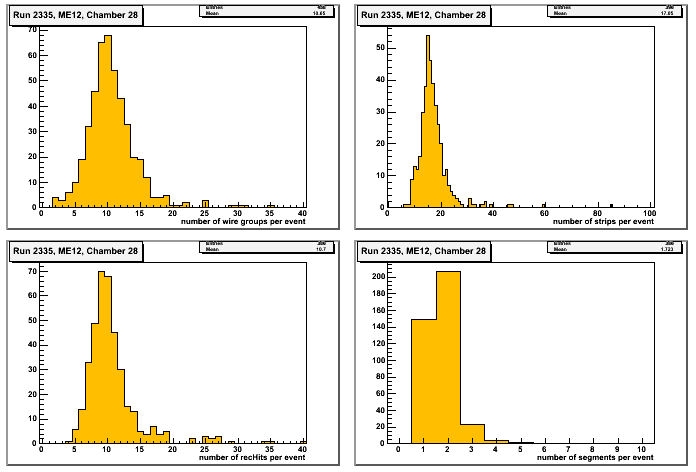

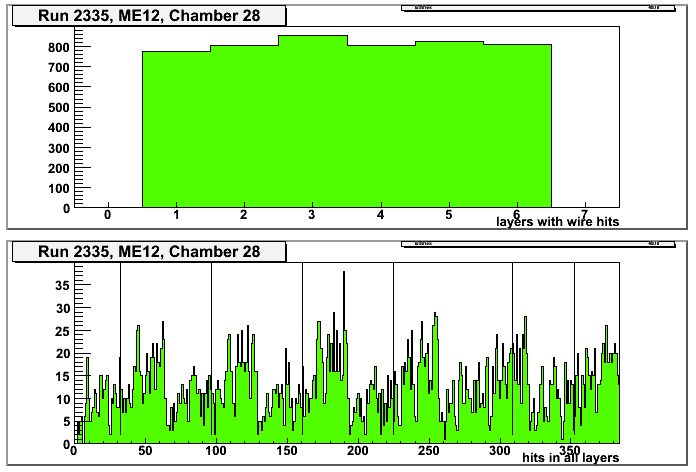

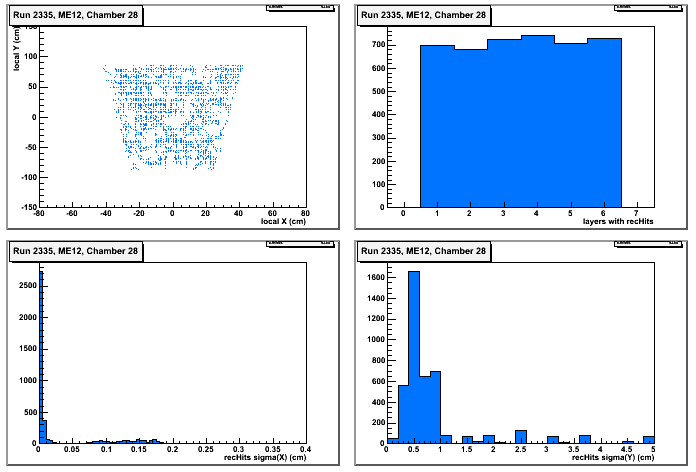

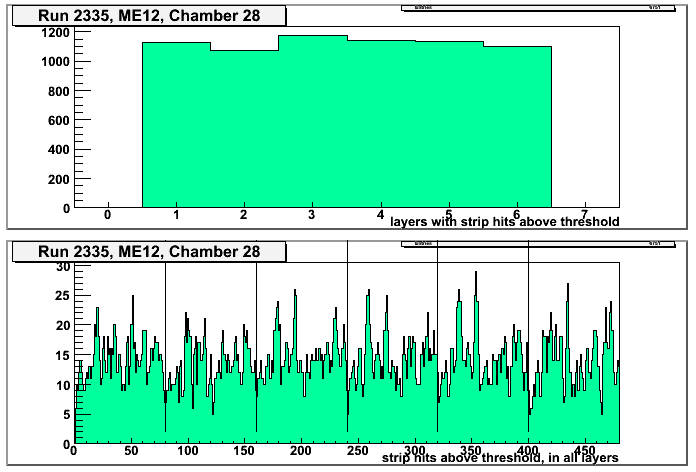

ME12 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

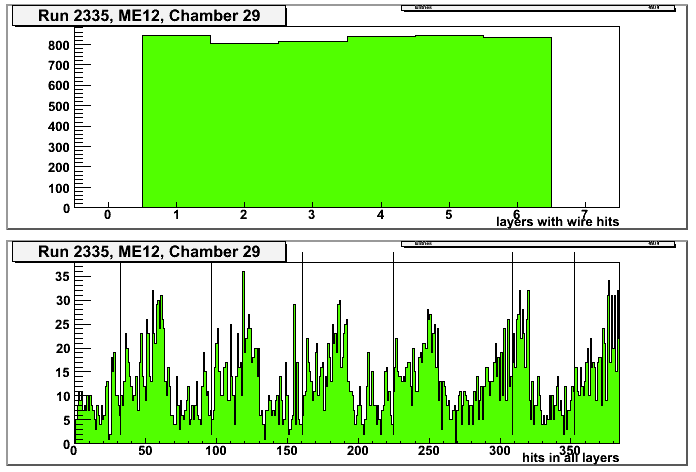

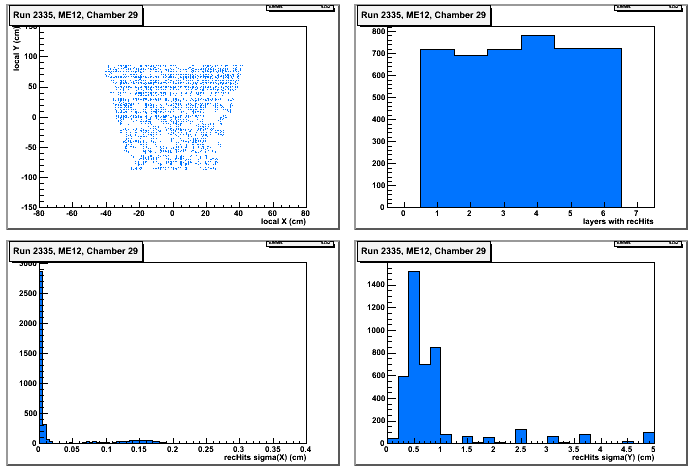

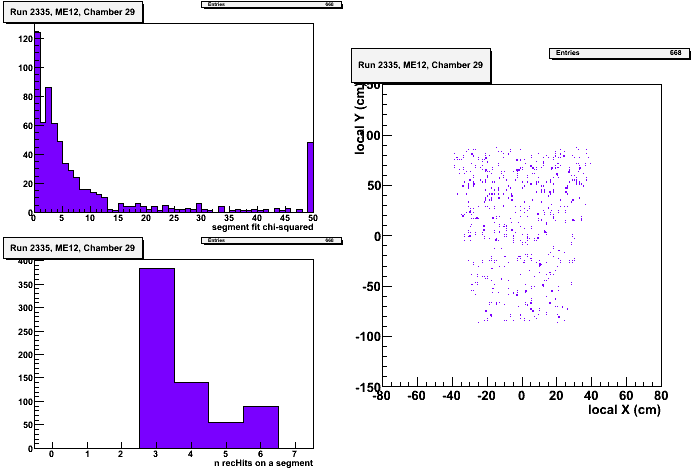

ME12 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

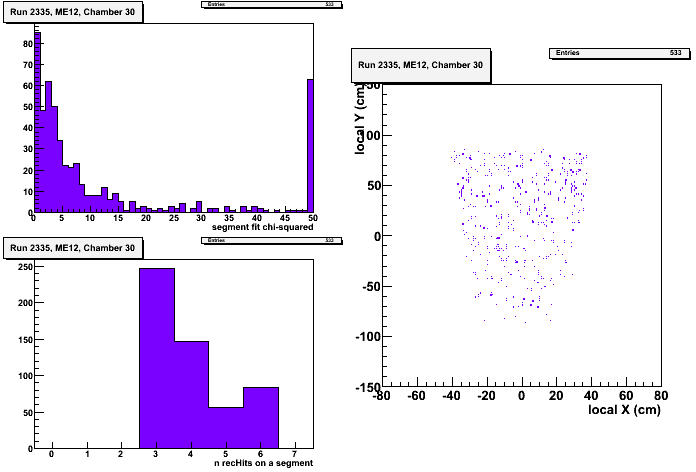

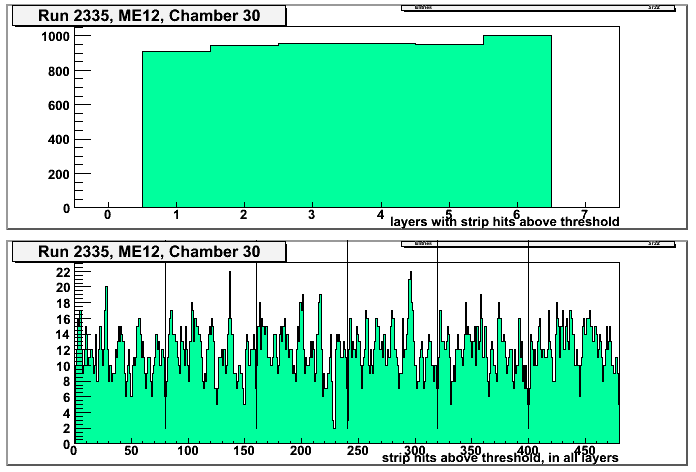

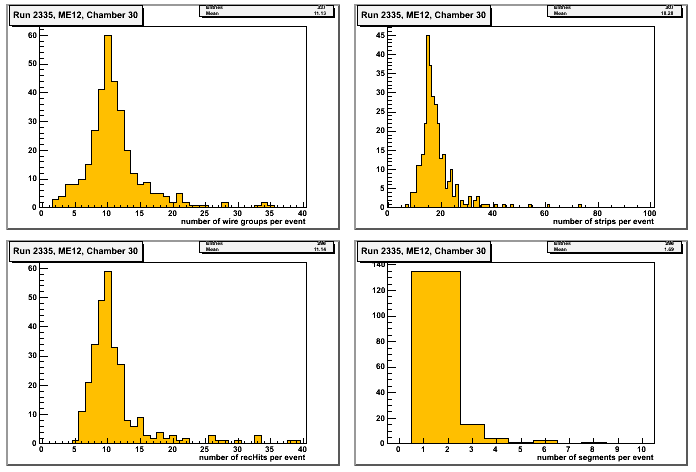

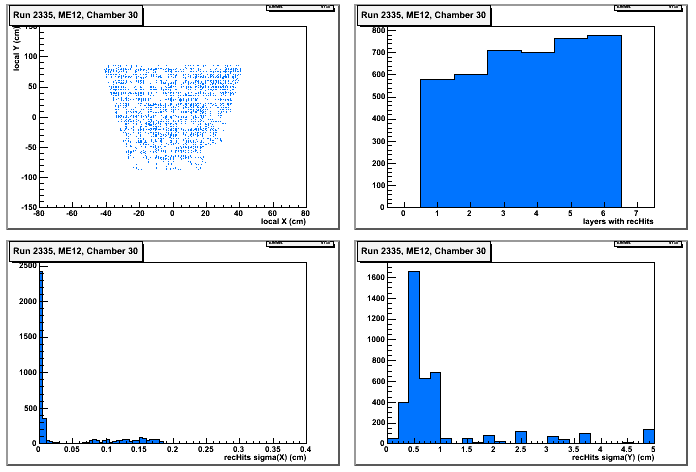

ME12 / 30	multiplicities   wire hits   strip hits   recHits   segments	OK

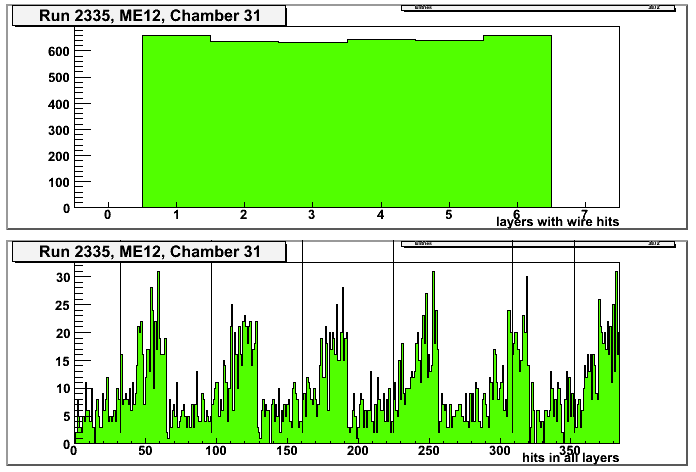

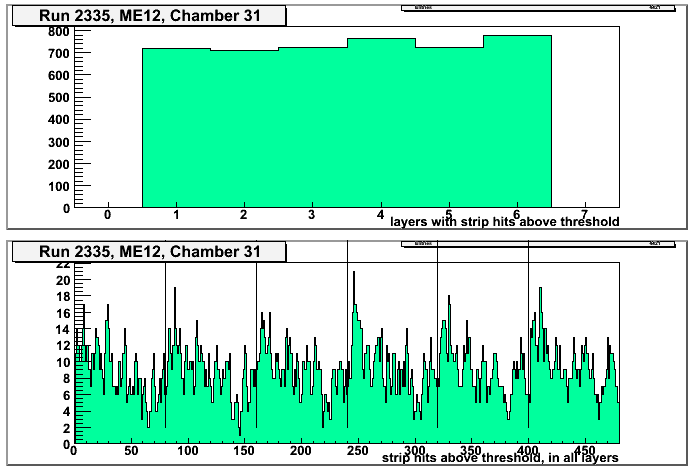

ME12 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

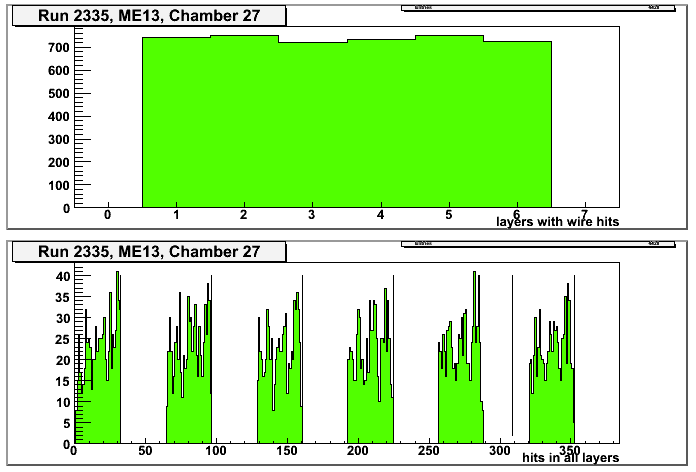

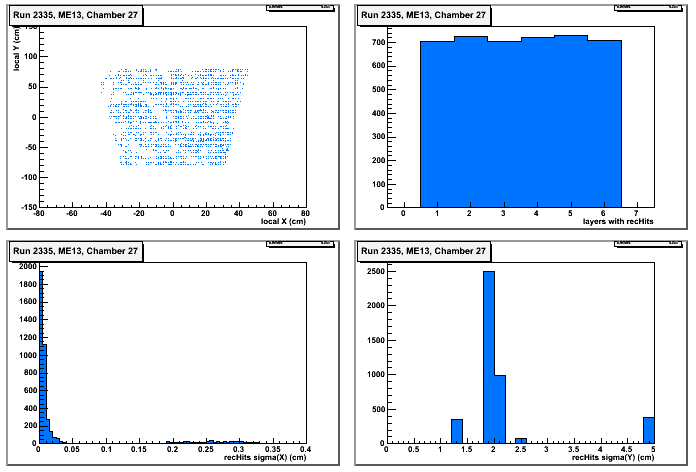

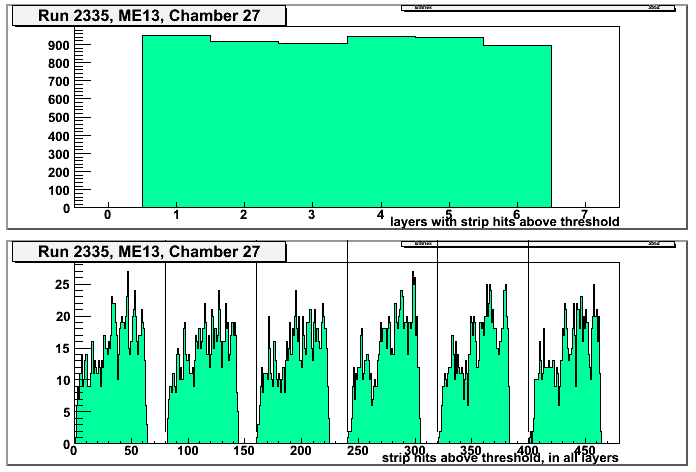

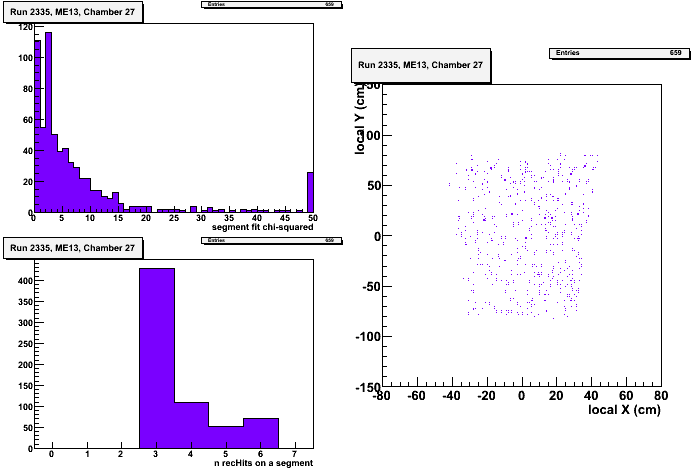

ME13 / 27	multiplicities   wire hits   strip hits   recHits   segments	Good! All wire strips are present!

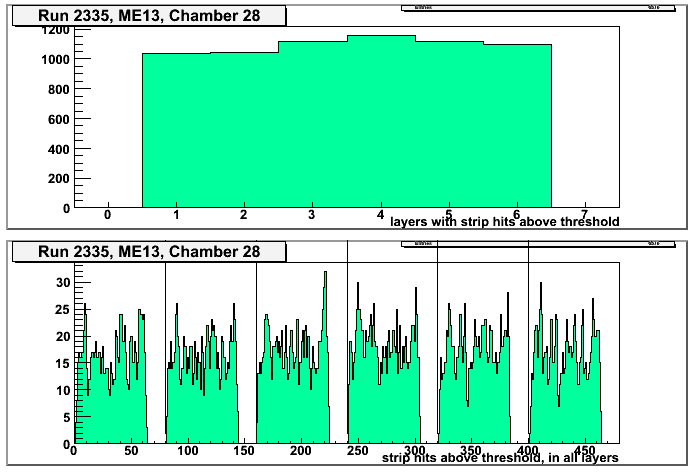

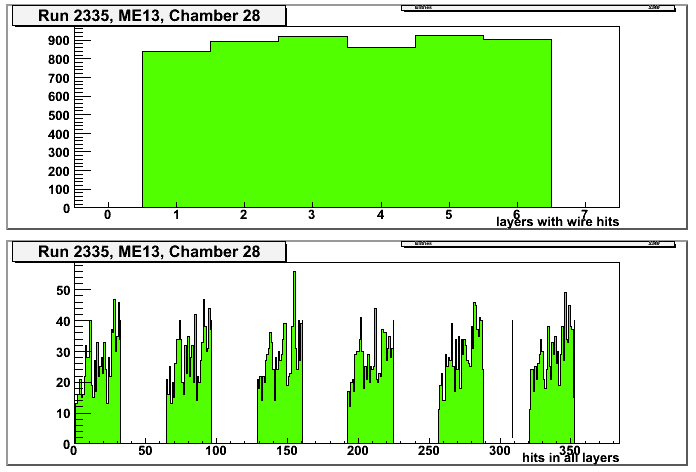

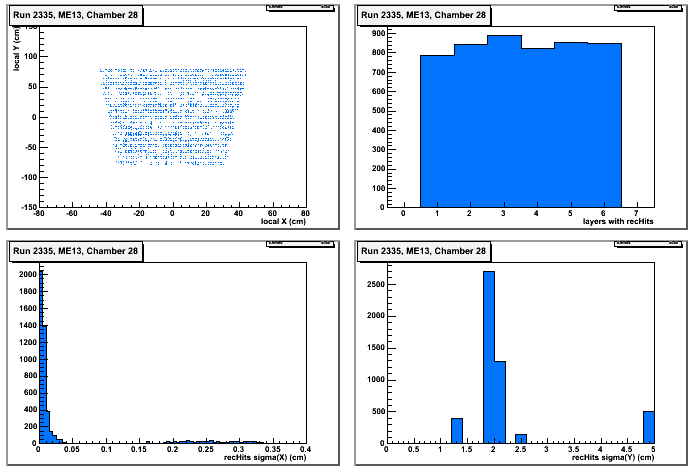

ME13 / 28	multiplicities   wire hits   strip hits   recHits   segments	Good! All wire strips are present!

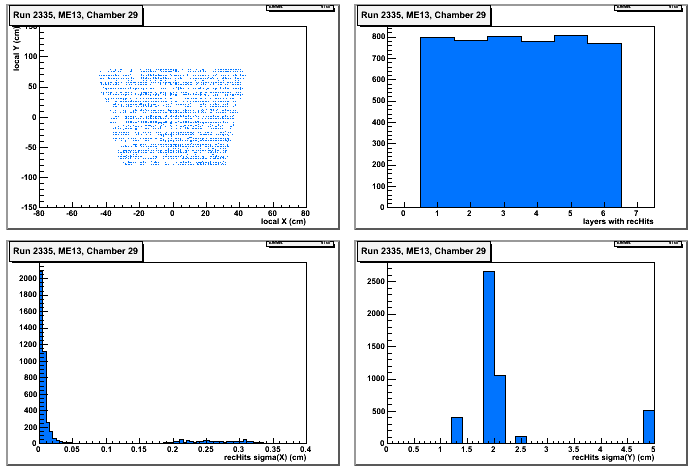

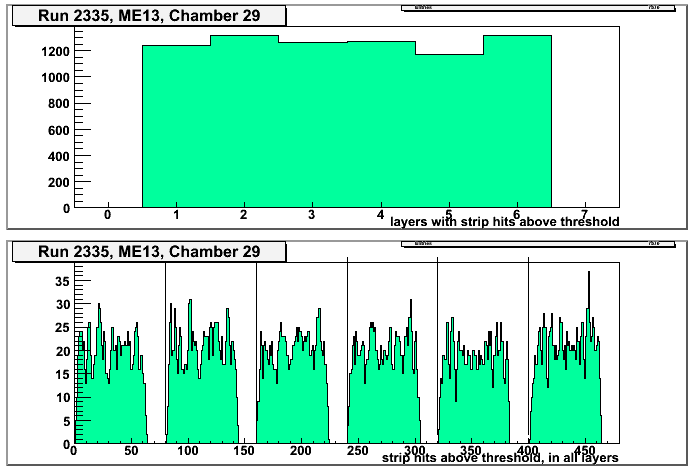

ME13 / 29	multiplicities   wire hits   strip hits   recHits   segments	Good! All wire strips are present!

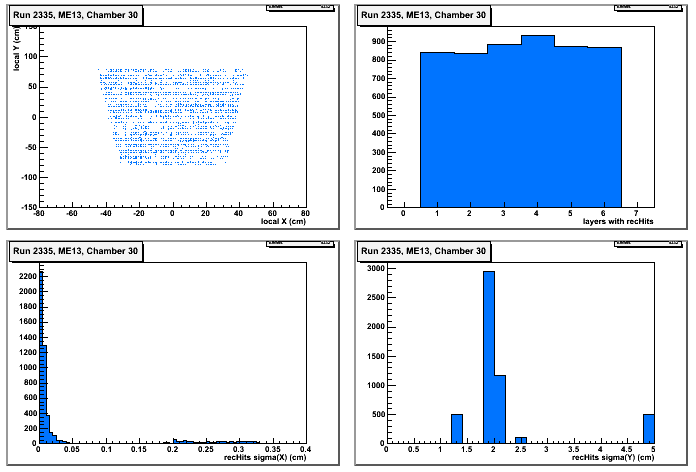

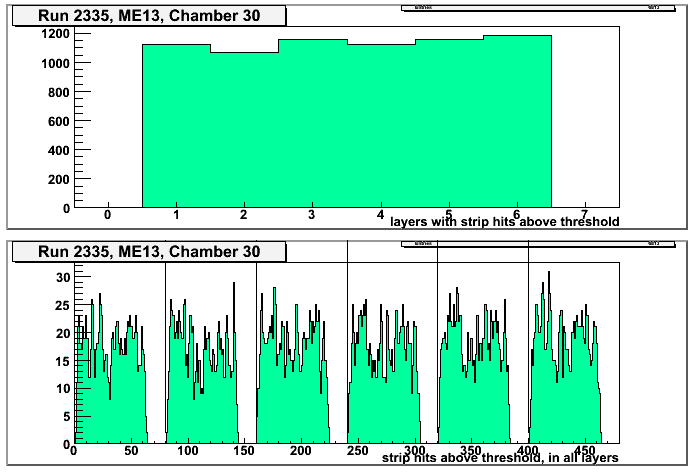

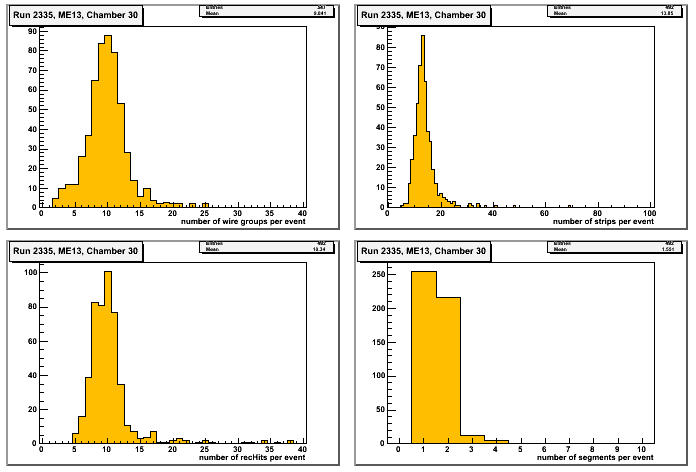

ME13 / 30	multiplicities   wire hits   strip hits   recHits   segments	Good! All wire strips are present!

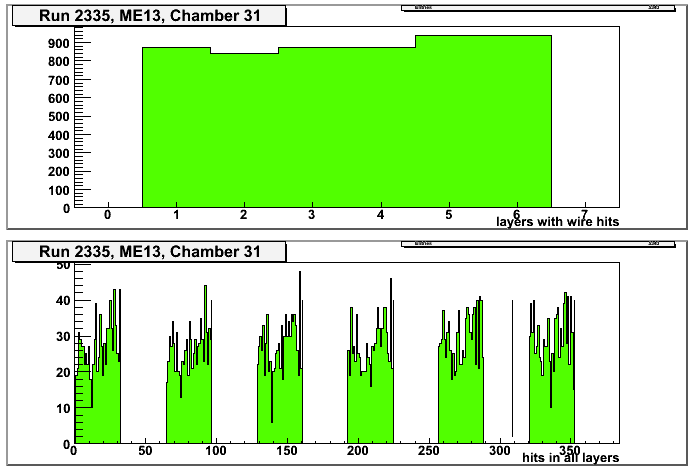

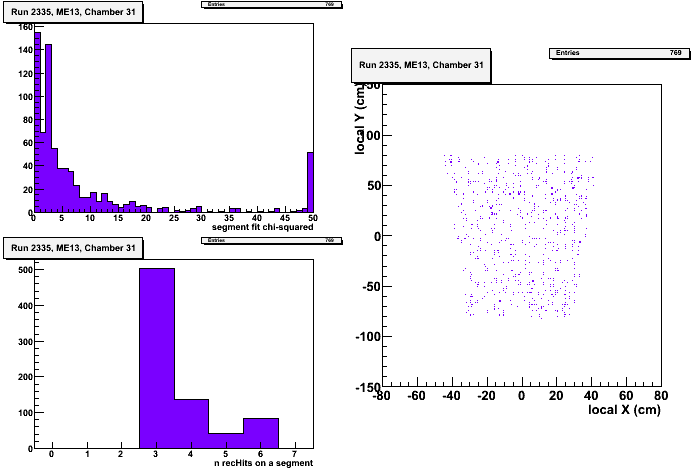

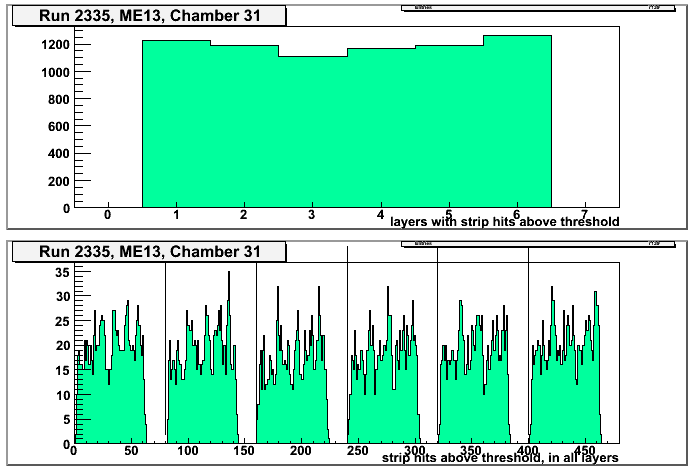

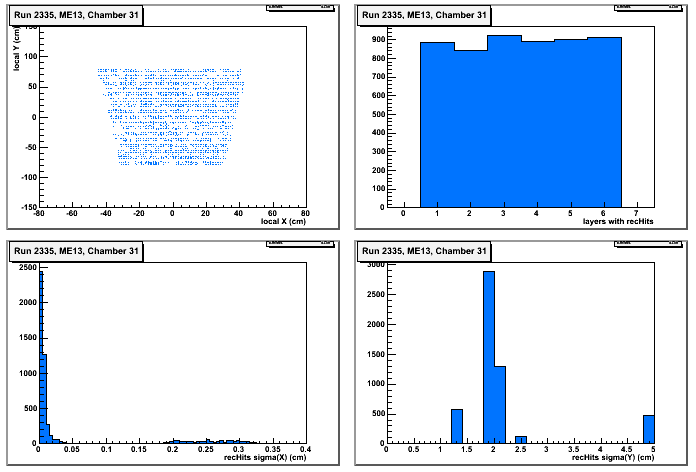

ME13 / 31	multiplicities   wire hits   strip hits   recHits   segments	Good! All wire strips are present!

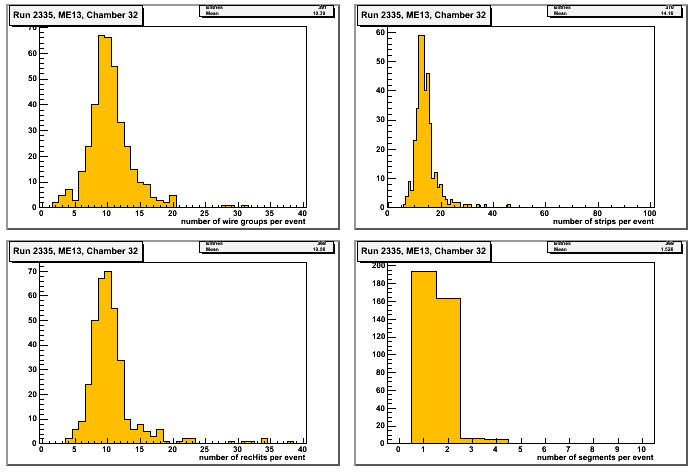

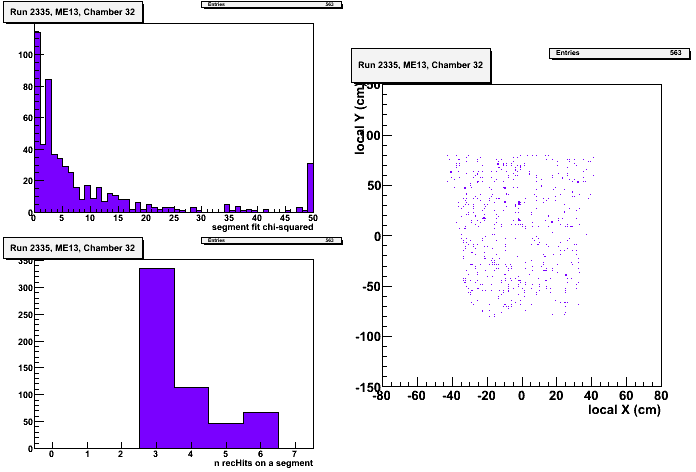

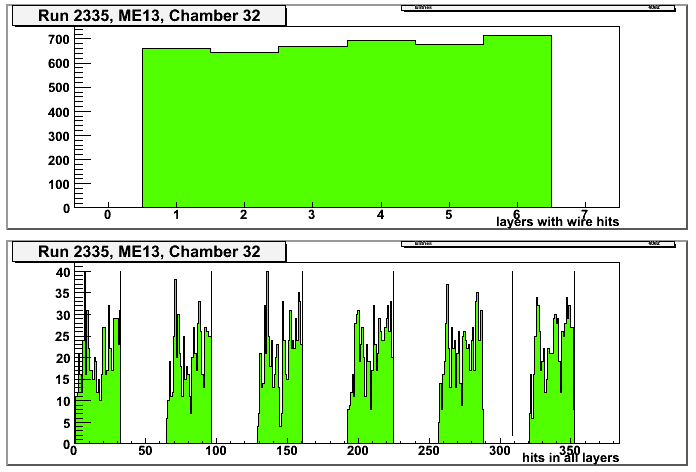

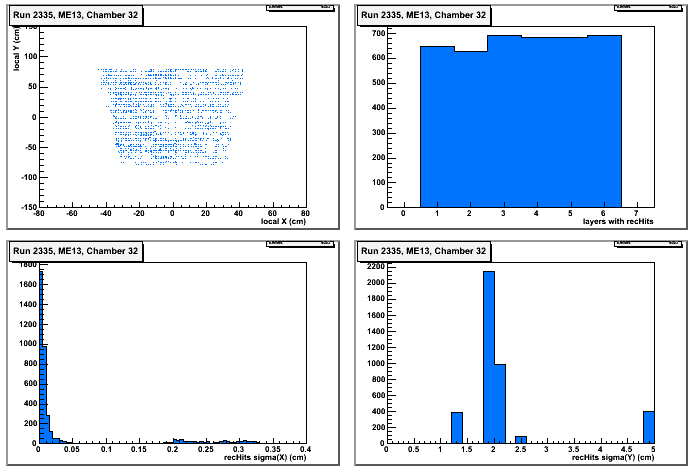

ME13 / 32	multiplicities   wire hits   strip hits   recHits   segments	Good! All wire strips are present!

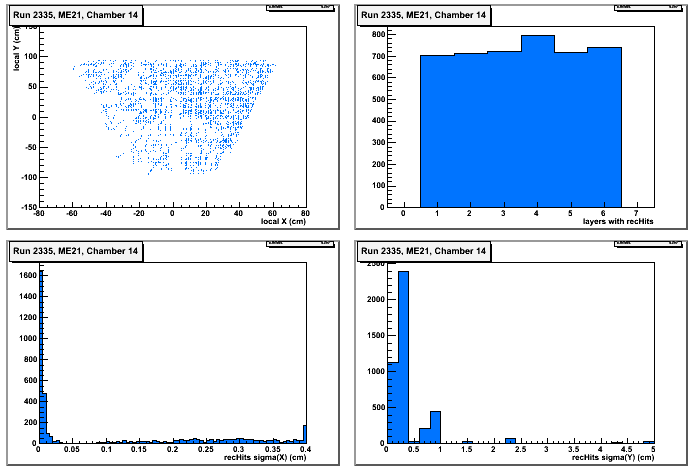

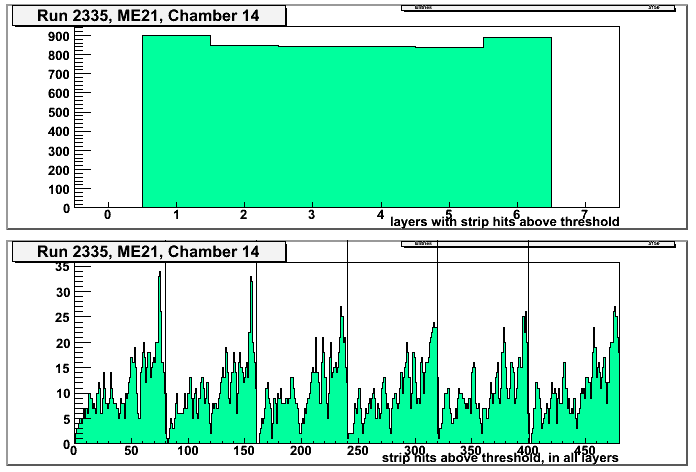

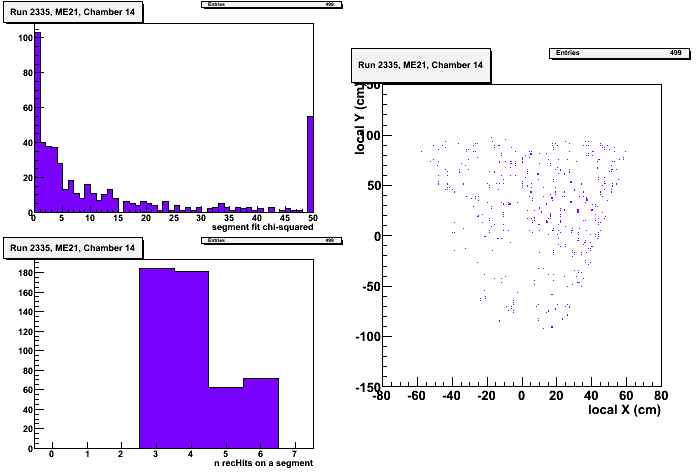

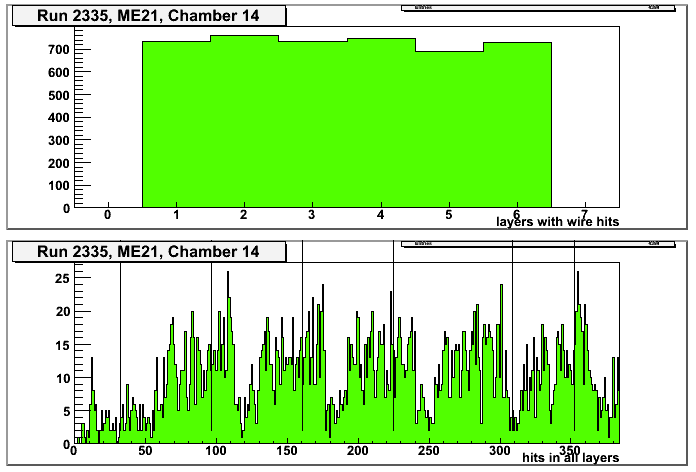

ME21 / 14	multiplicities   wire hits   strip hits   recHits   segments	Improved w.r.t. run 2304!

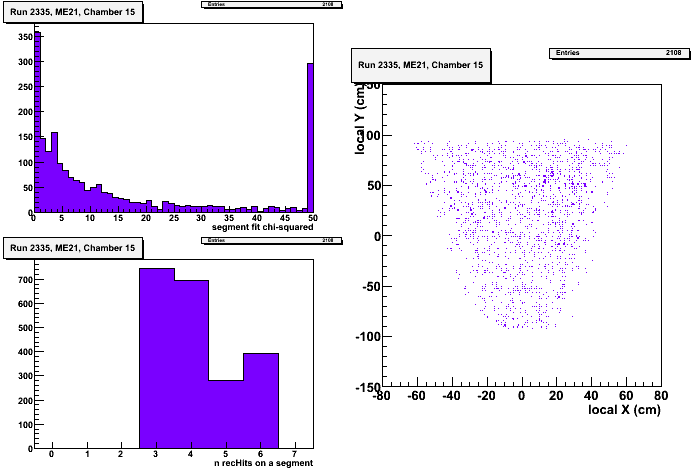

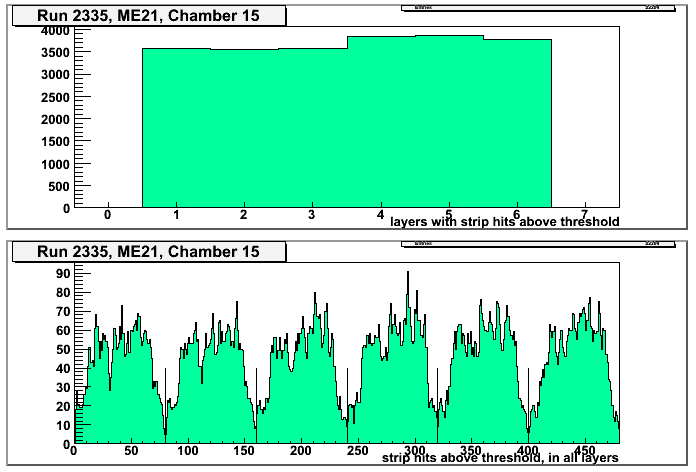

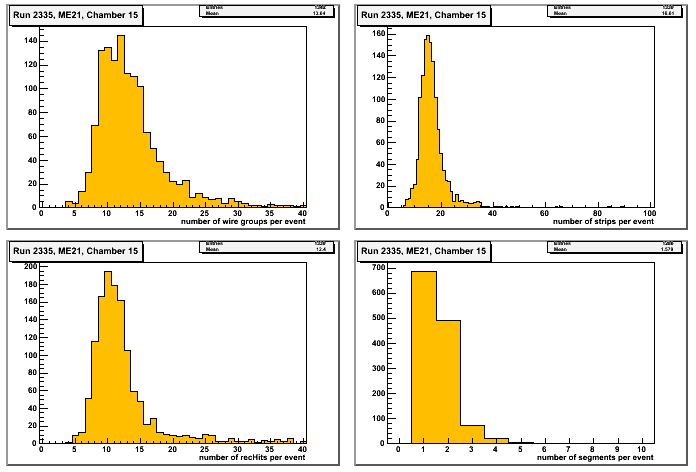

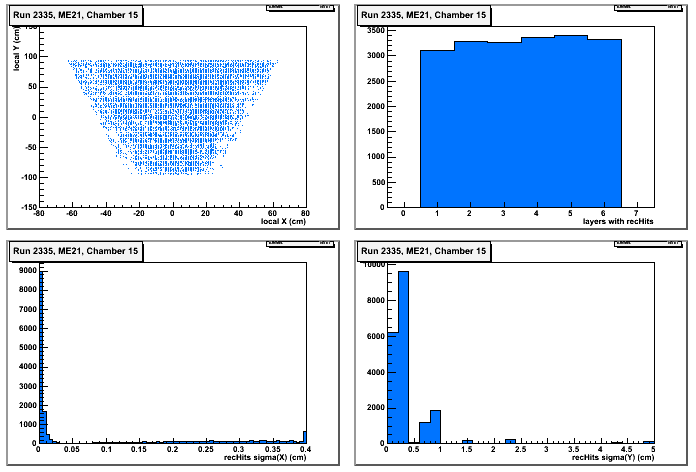

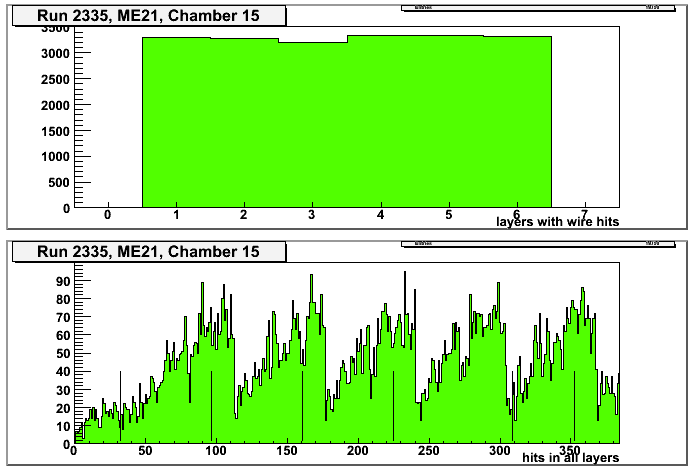

ME21 / 15	multiplicities   wire hits   strip hits   recHits   segments	Layer 1 clearly suppressed, in the wires.

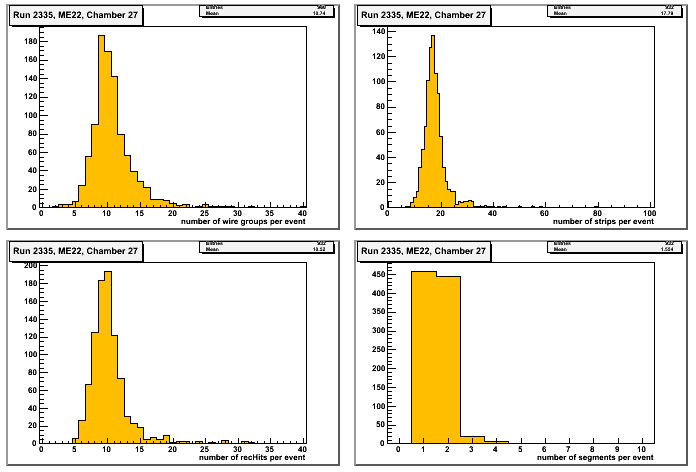

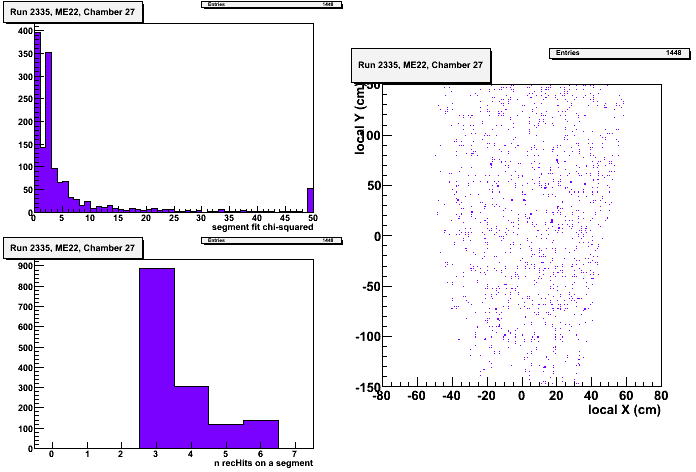

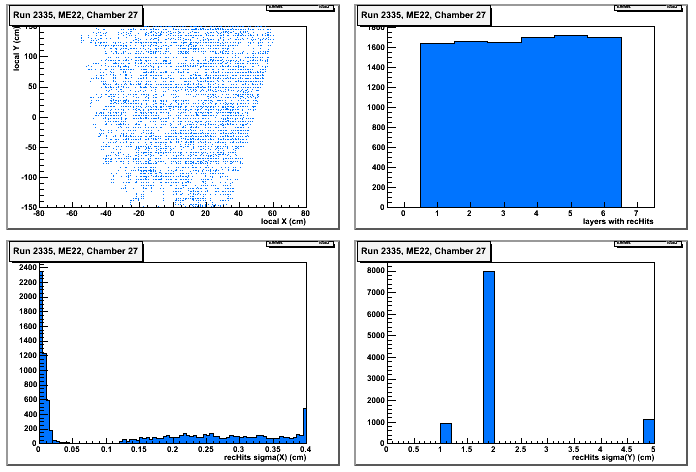

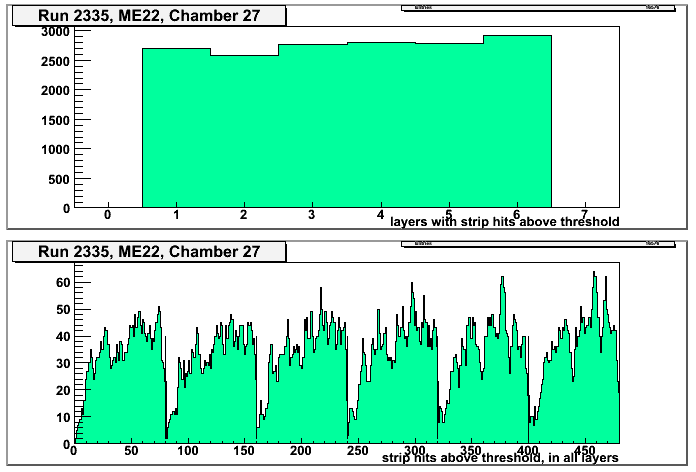

ME22 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

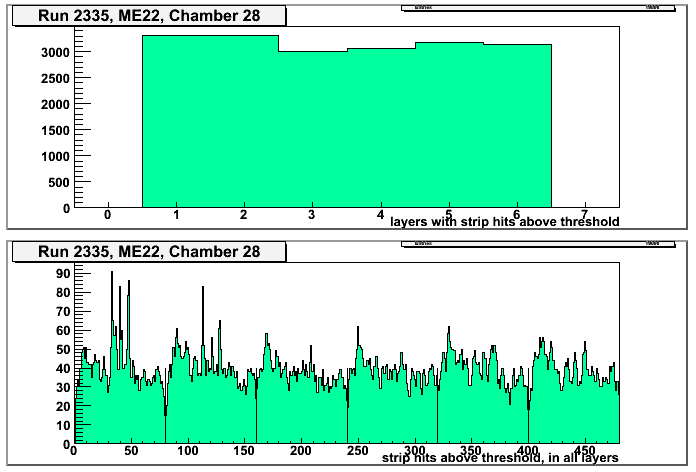

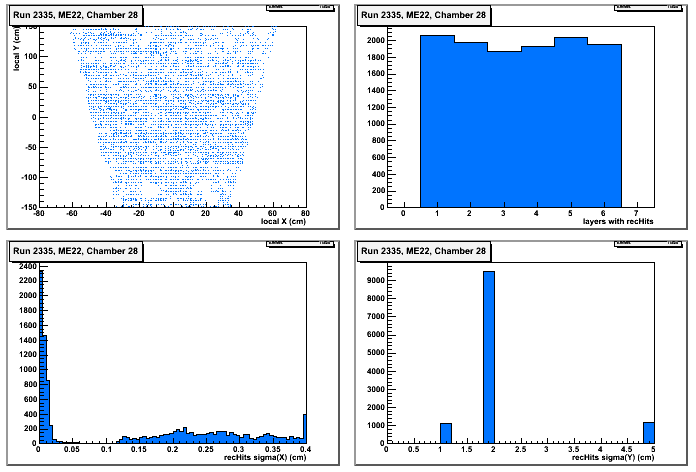

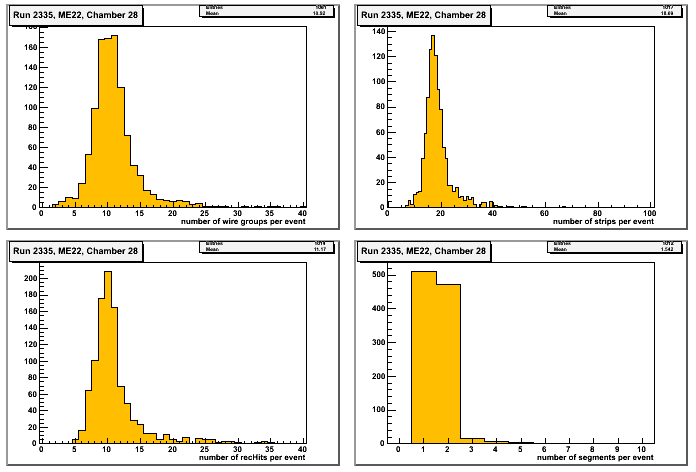

ME22 / 28	multiplicities   wire hits   strip hits   recHits   segments	some noisy strip channels in layers 1&2

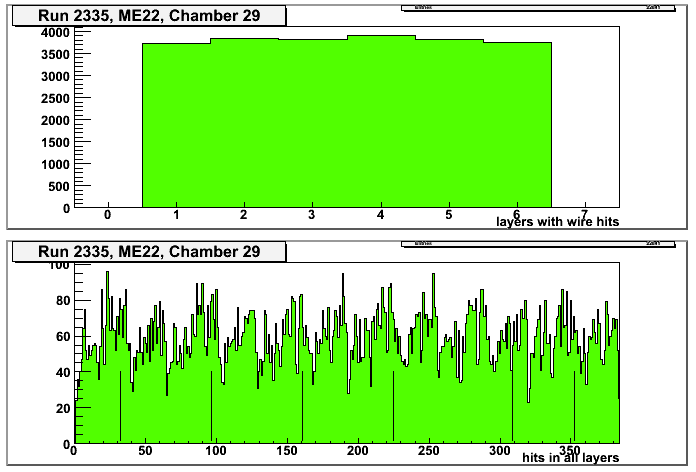

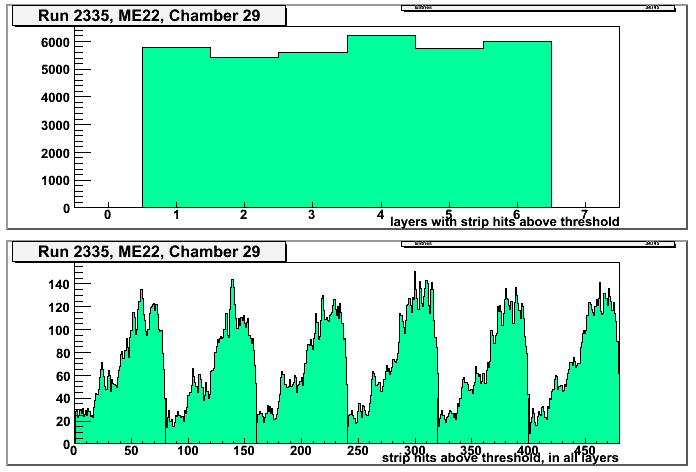

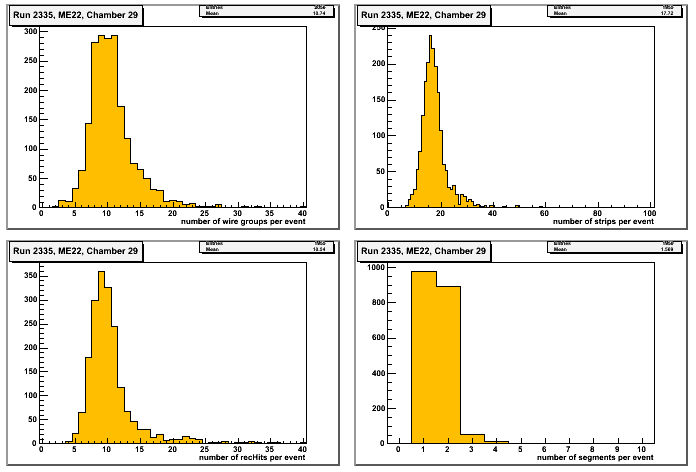

ME22 / 29	multiplicities   wire hits   strip hits   recHits   segments	Distribution in (X,Y) for recHits is clearly non-flat.

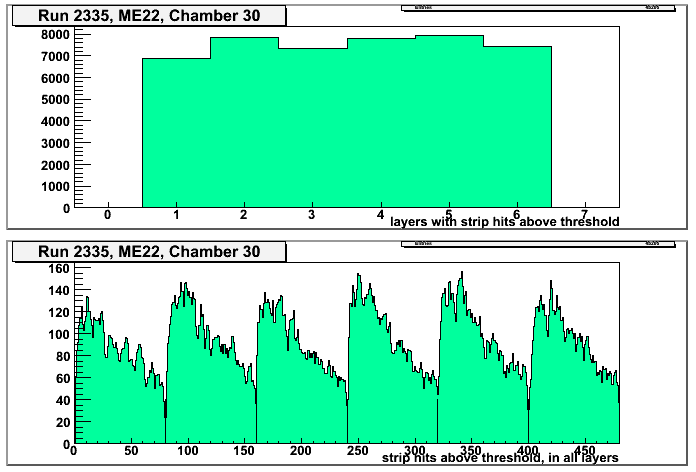

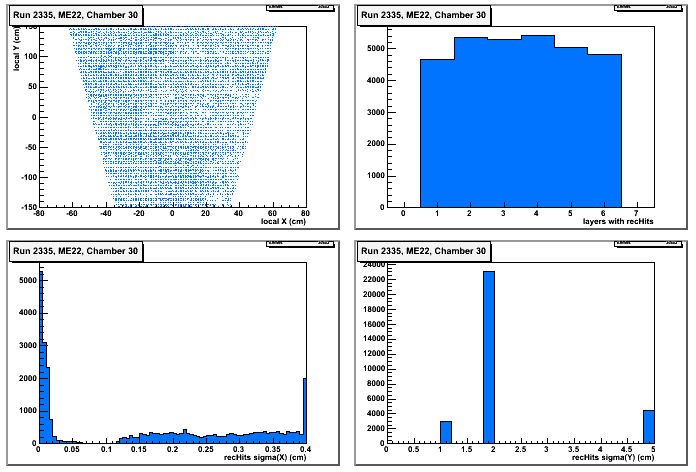

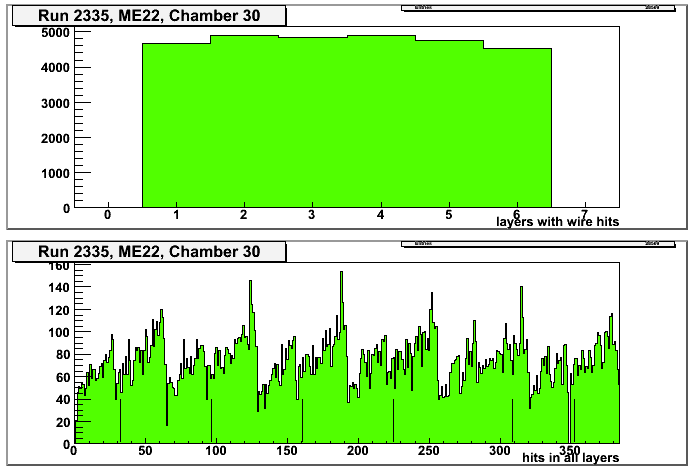

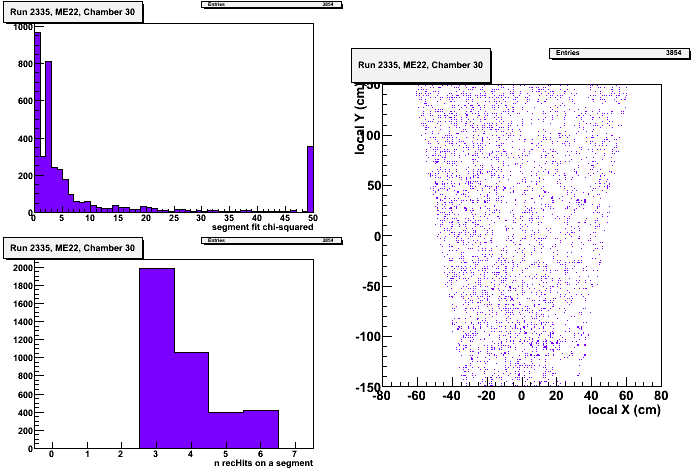

ME22 / 30	multiplicities   wire hits   strip hits   recHits   segments	one dead wire in layer 5

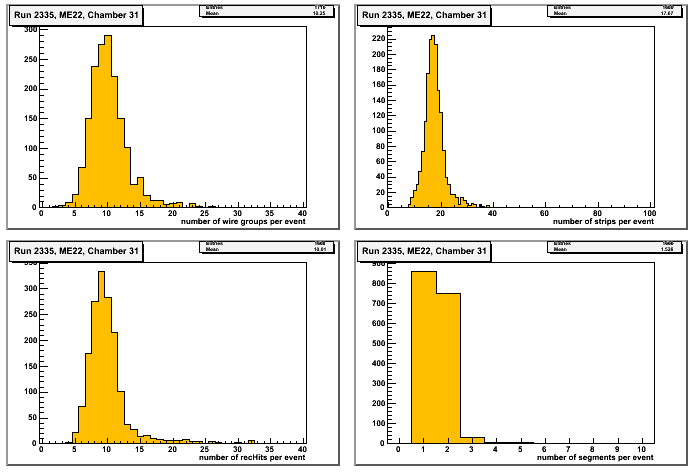

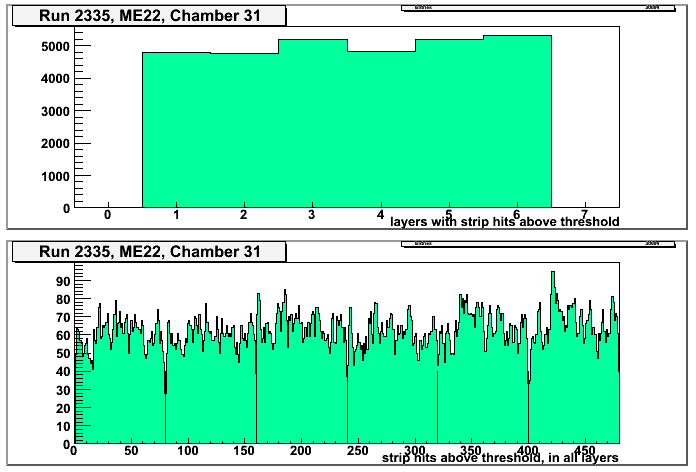

ME22 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

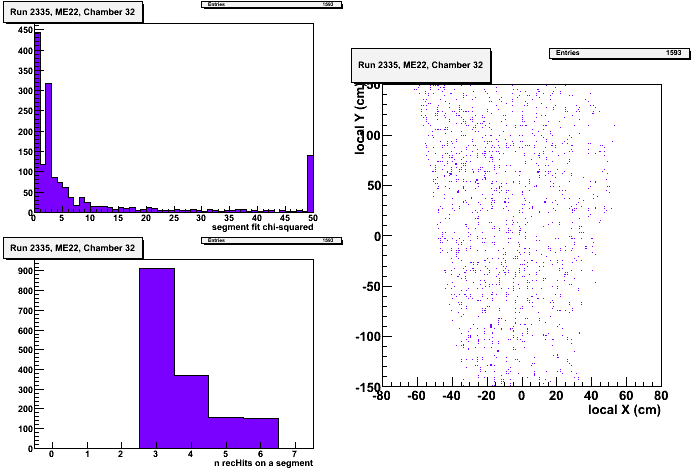

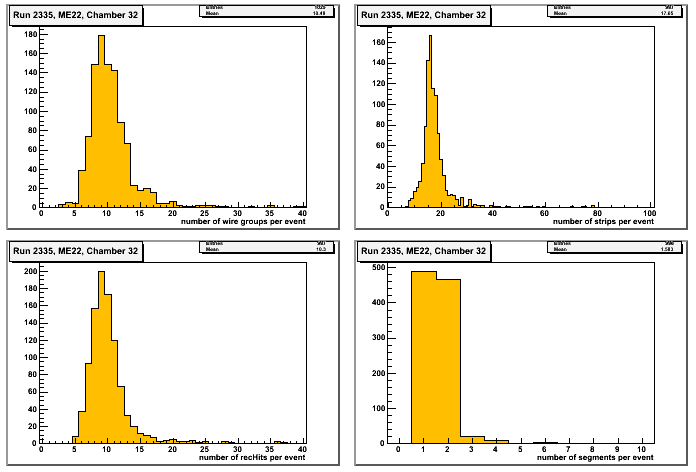

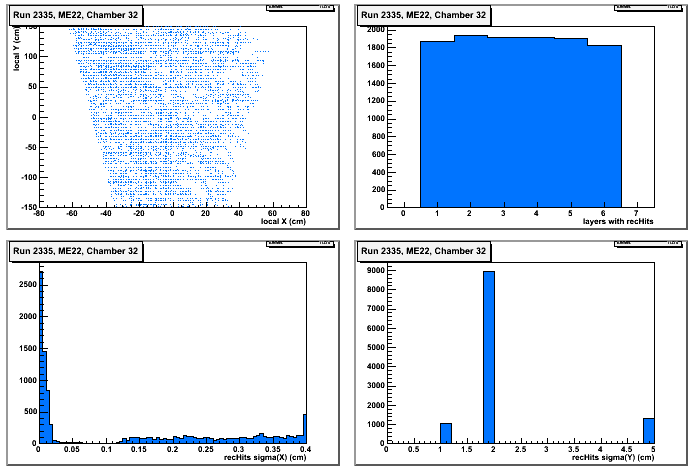

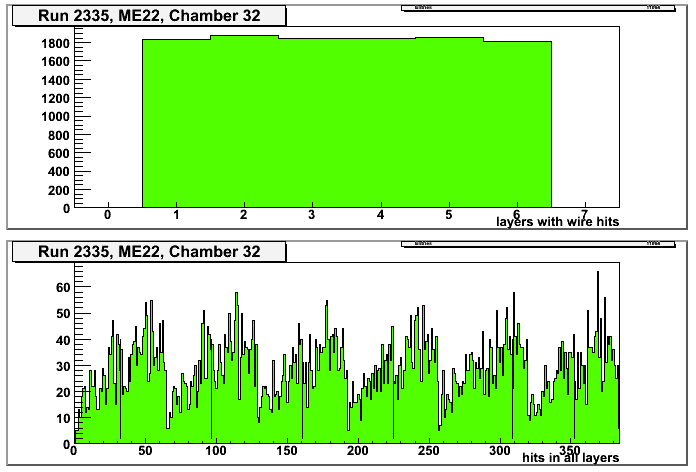

ME22 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

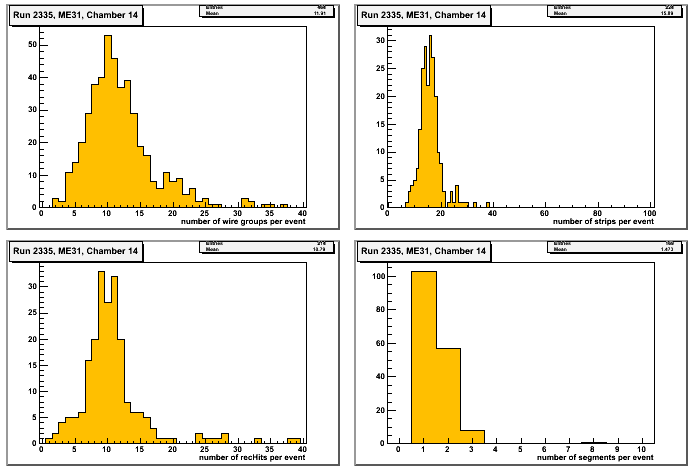

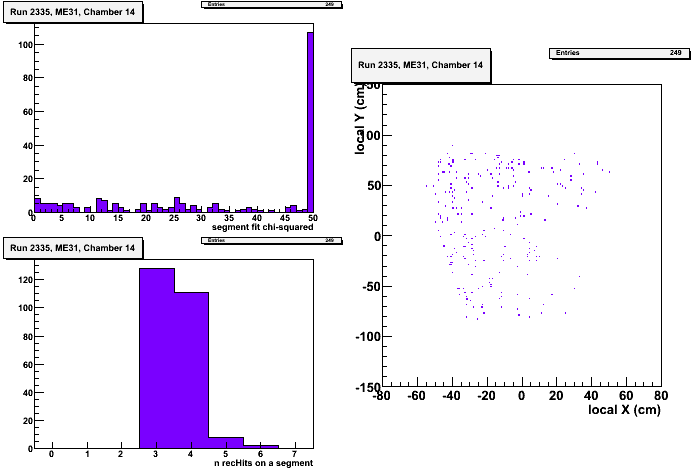

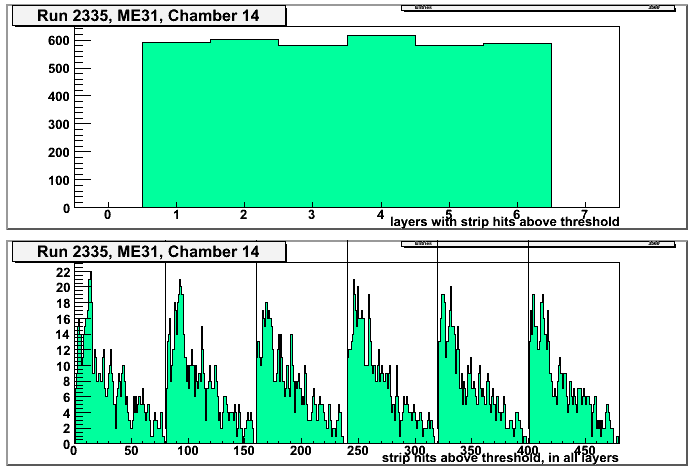

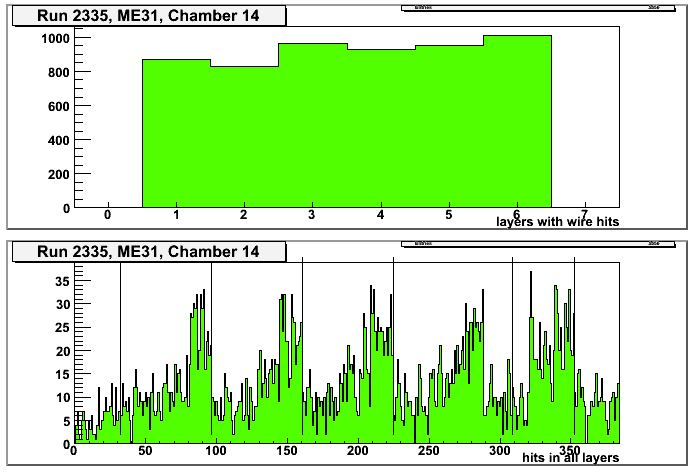

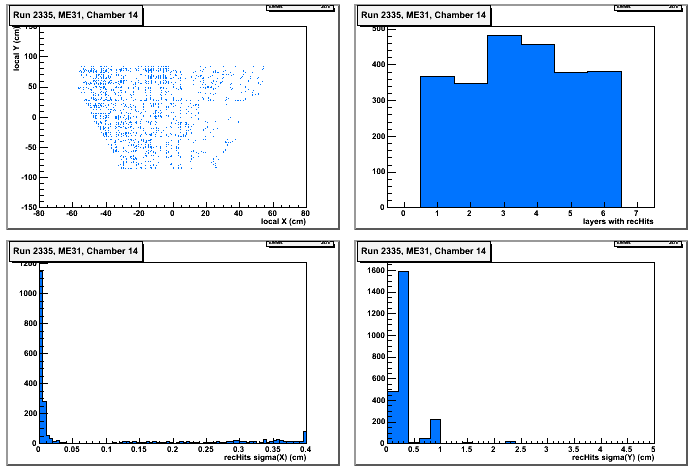

ME31 / 14	multiplicities   wire hits   strip hits   recHits   segments	Poor chi-squared for segments.

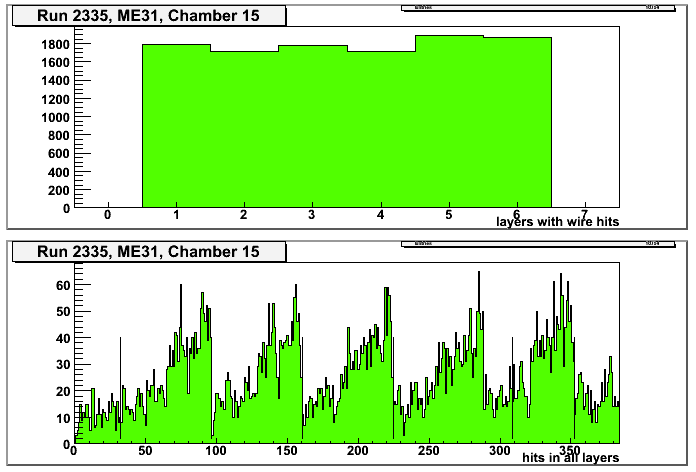

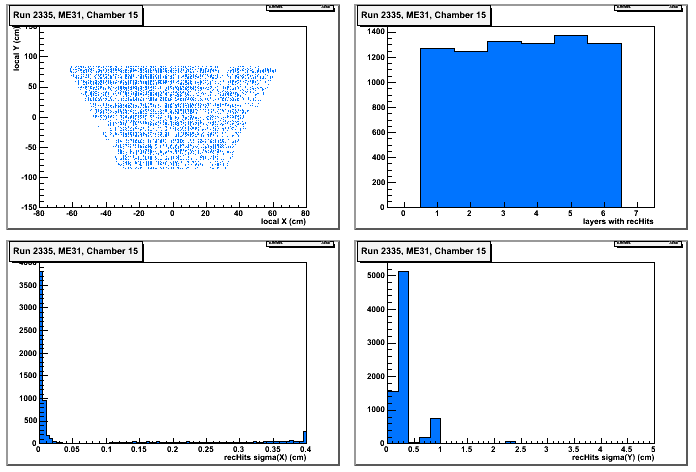

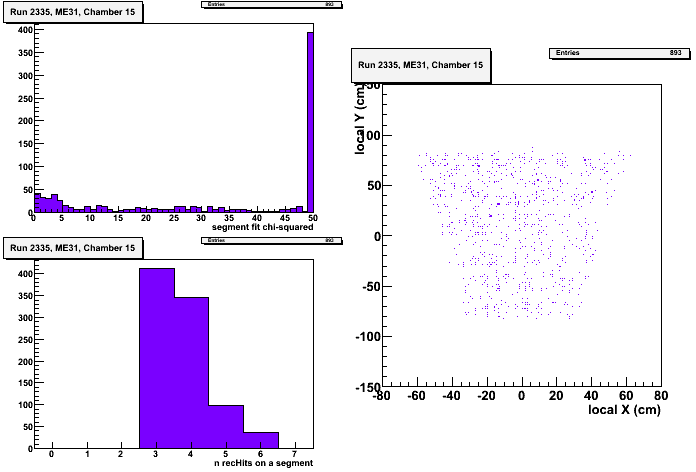

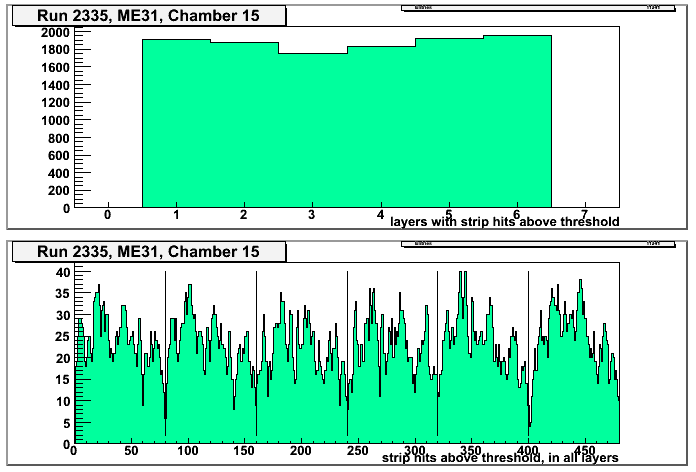

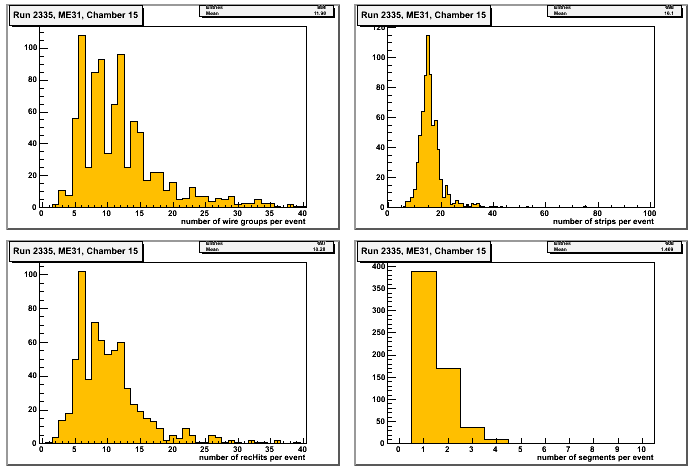

ME31 / 15	multiplicities   wire hits   strip hits   recHits   segments	Odd distribution for N wire groups. Cross-talk?? Poor chi-squared for segments.

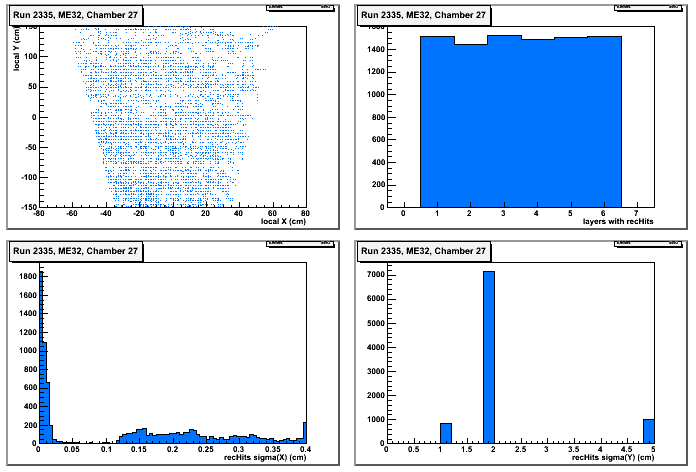

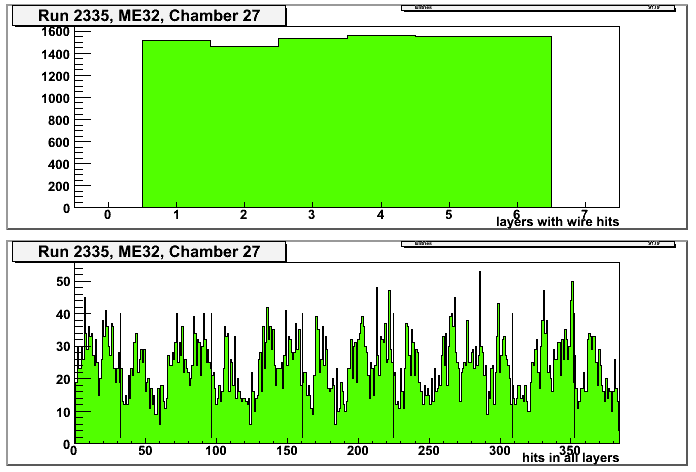

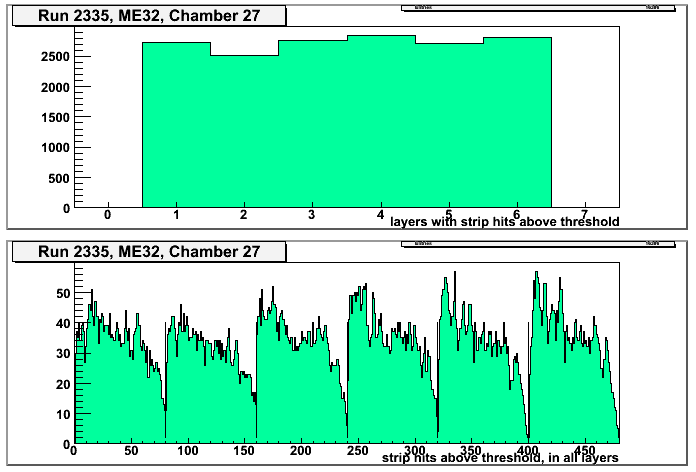

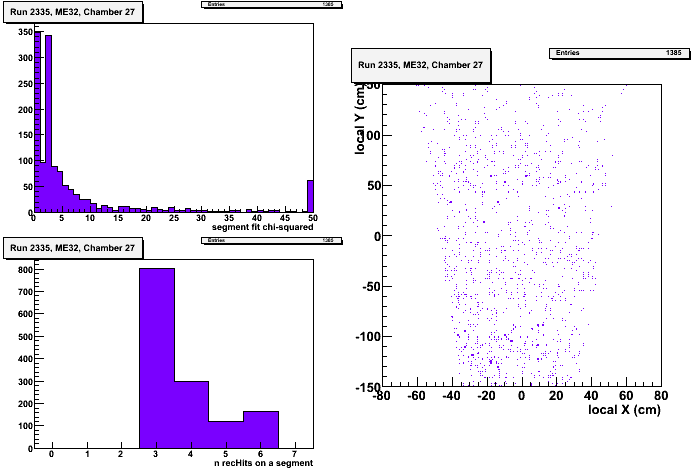

ME32 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

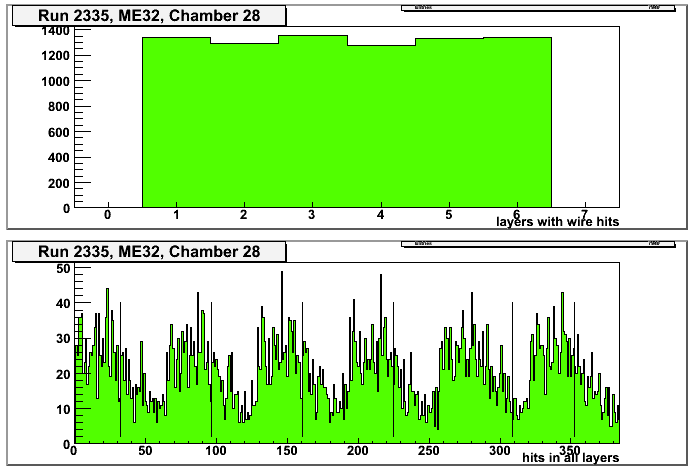

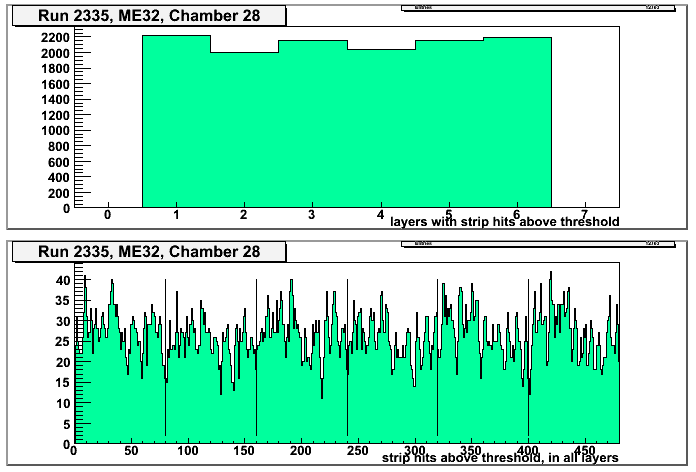

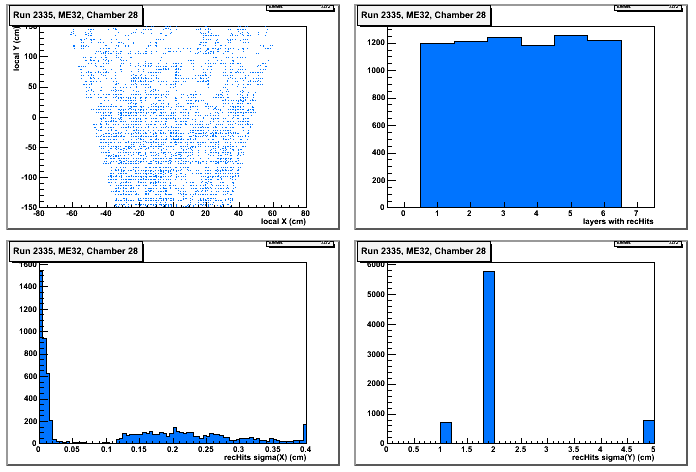

ME32 / 28	multiplicities   wire hits   strip hits   recHits   segments	OK

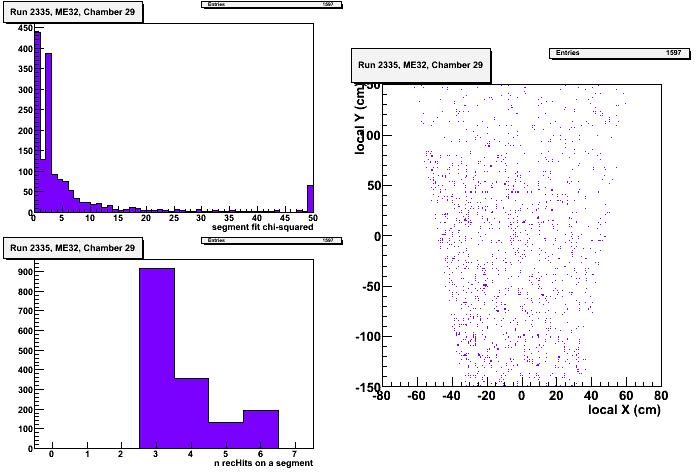

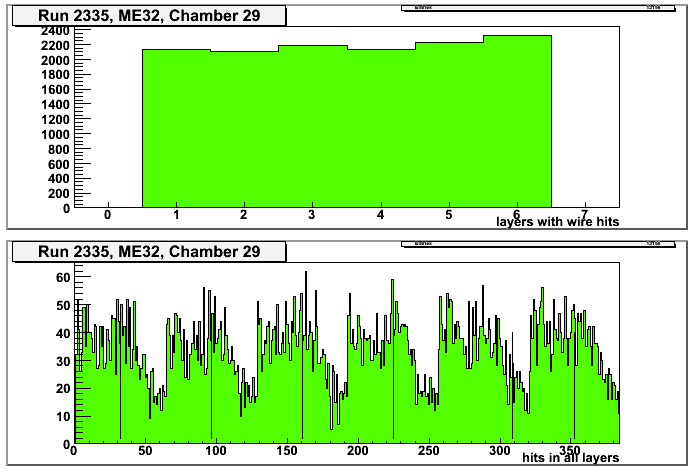

ME32 / 29	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

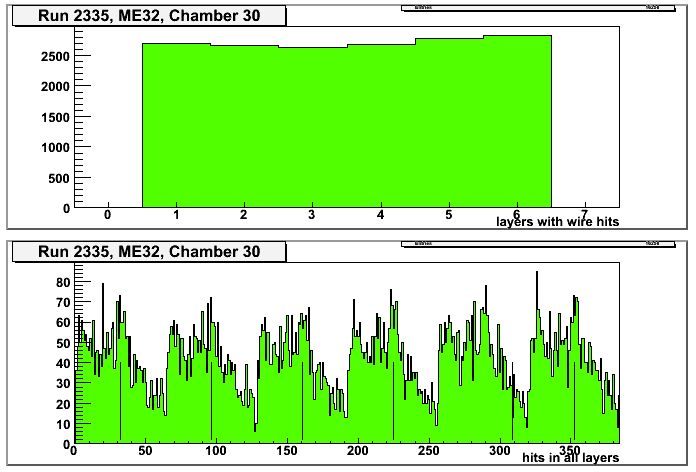

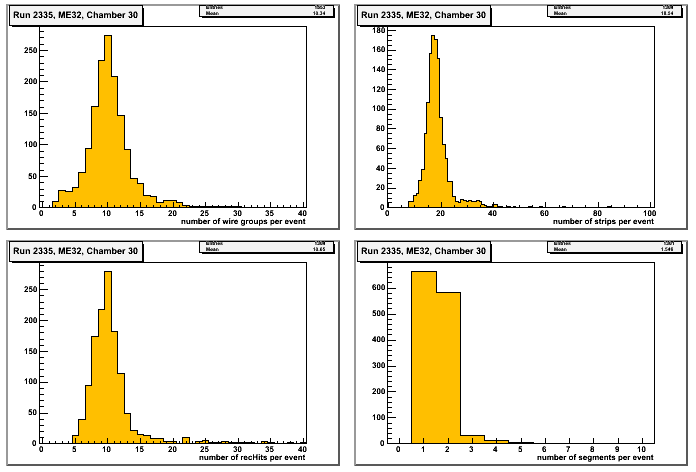

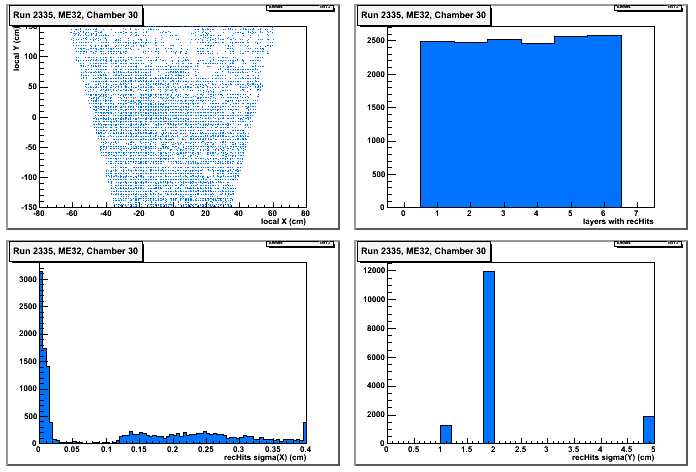

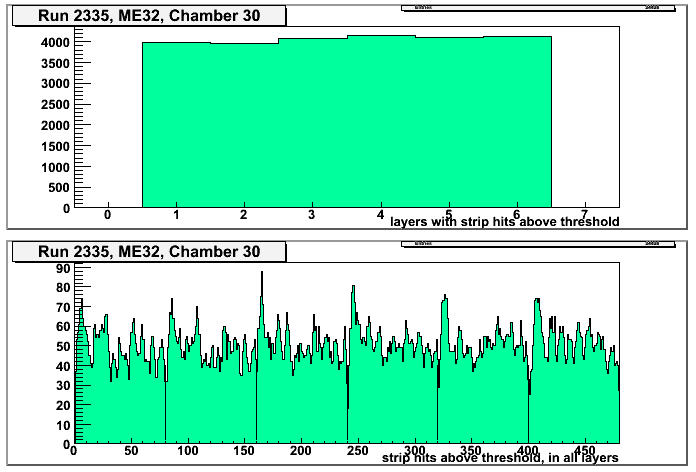

ME32 / 30	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

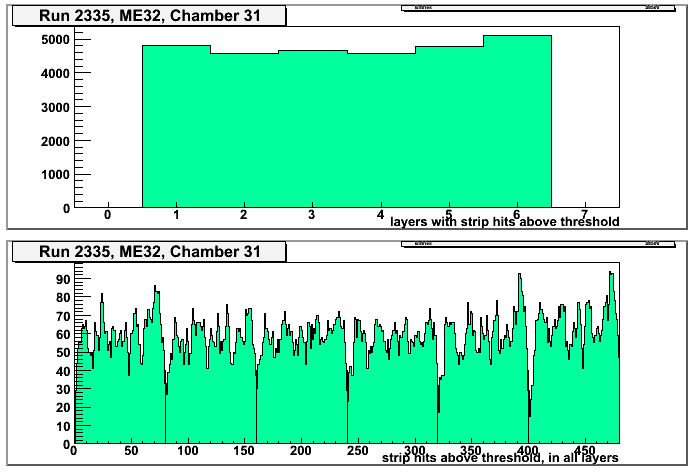

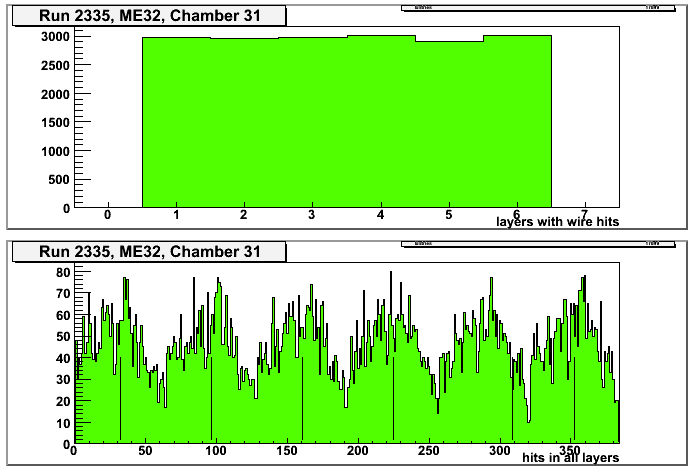

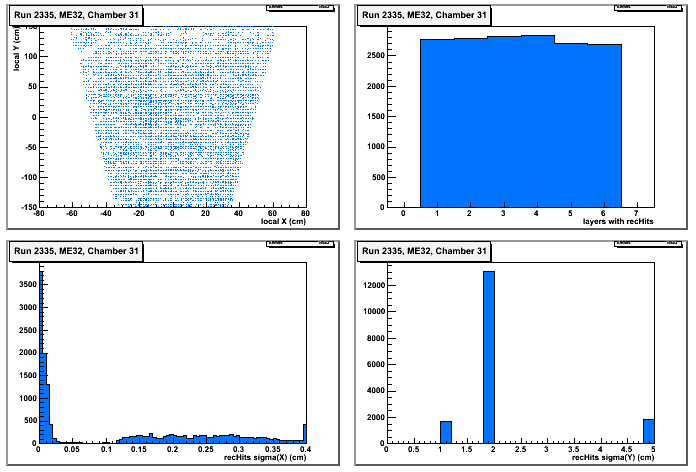

ME32 / 31	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"
