MTCC plots for Run 2304

	gif	The ESR code which shows overall occupancies. ME1 is empty.

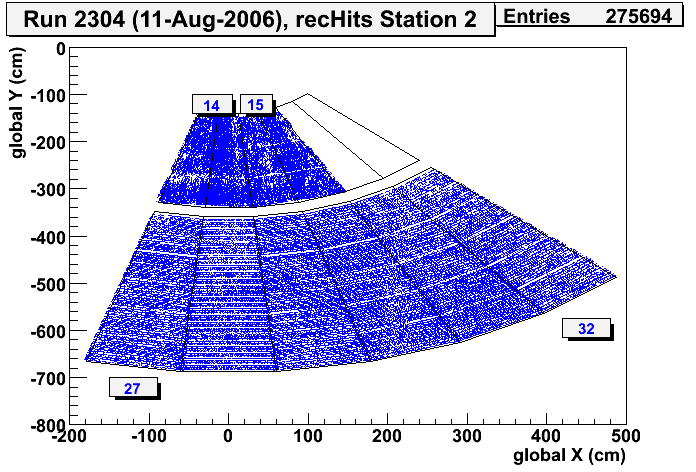

	gif	Station 2 recHits

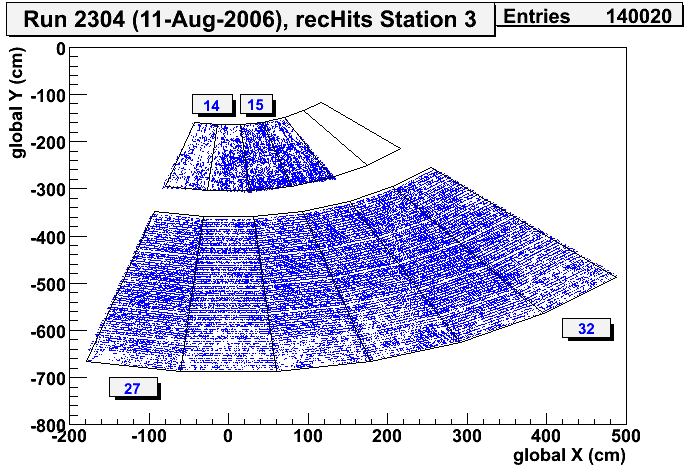

	gif	Station 3 recHits

station/ring	links to plots	comments

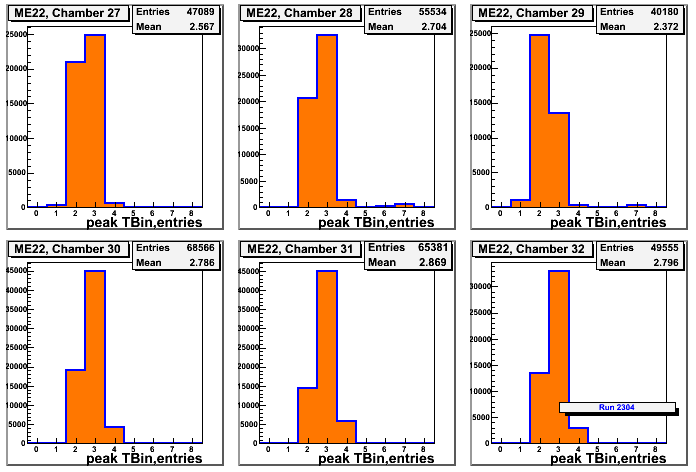

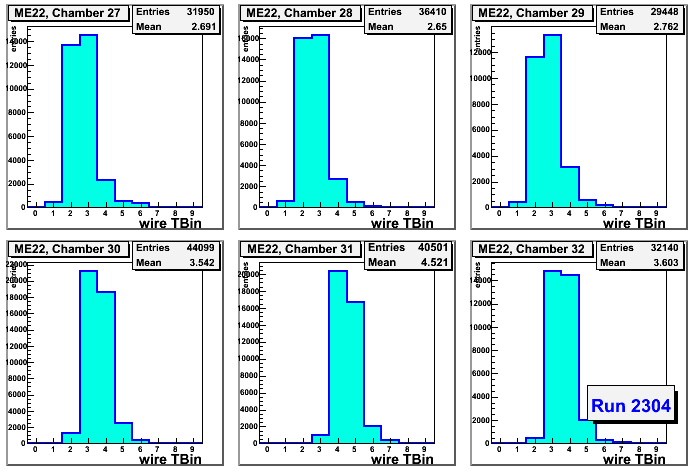

ME22	Wire Time Bins    strips peak Time	ME22/28 and ME22/29 have a significant number of events with a strip peak time in the 7th bin. Wires OK.

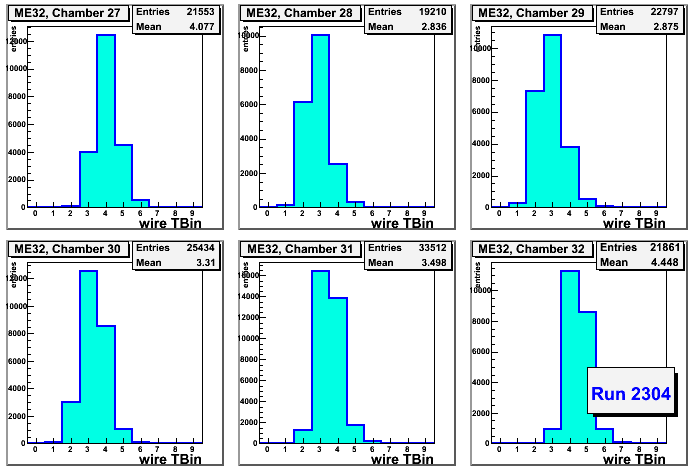

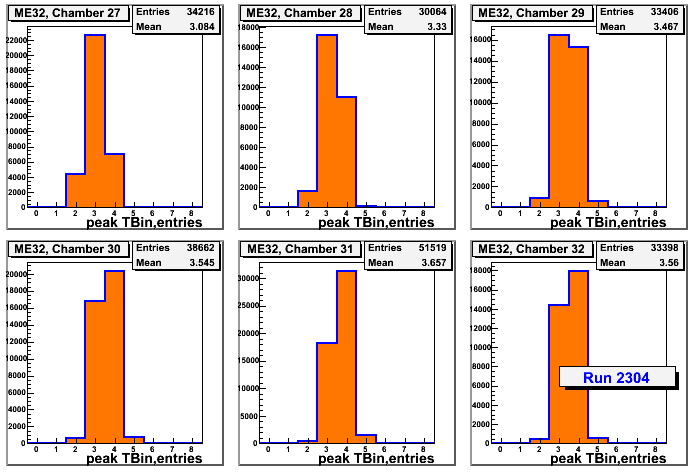

ME32	Wire Time Bins    strips peak Time	OK

chamber	links to plots	comments

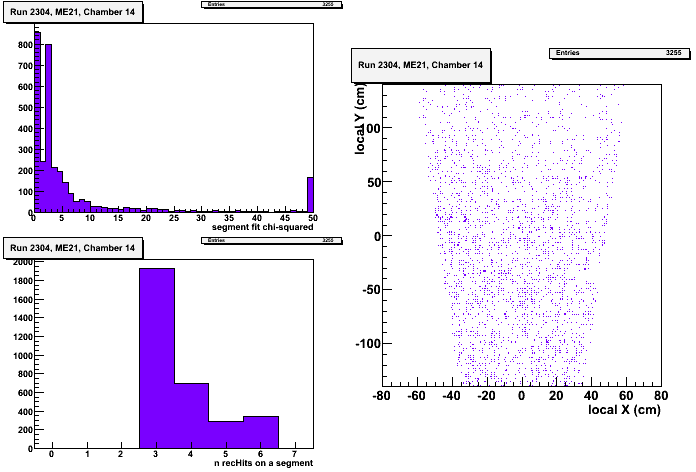

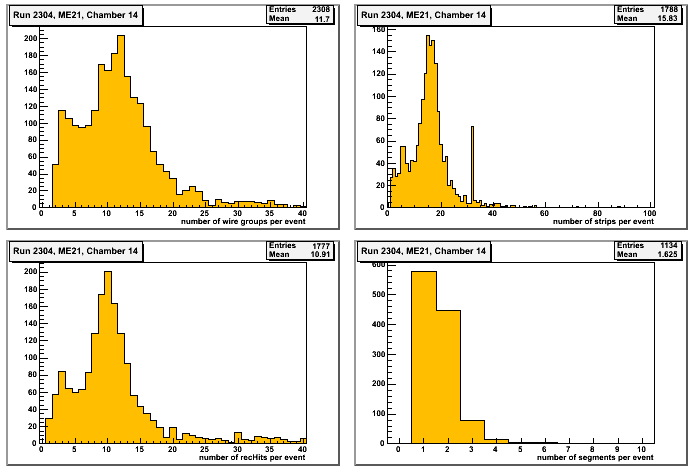

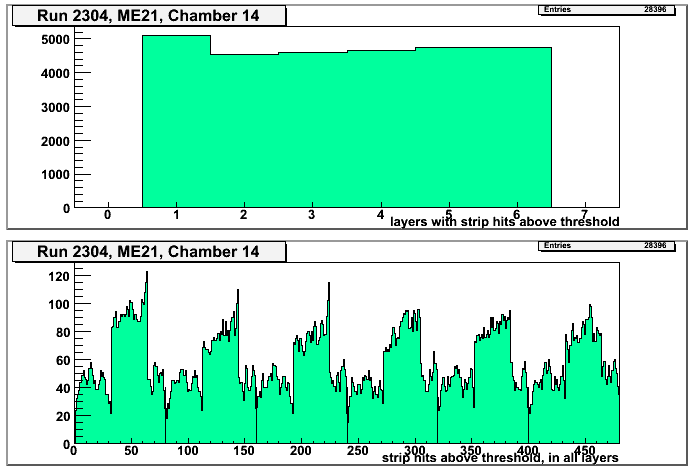

ME21 / 14	multiplicities   wire hits   strip hits   recHits   segments	Some events have low wire multiplicities, and strips have a peak at 32 strips fire. Strange pattern for wire hits - layer one is bad?

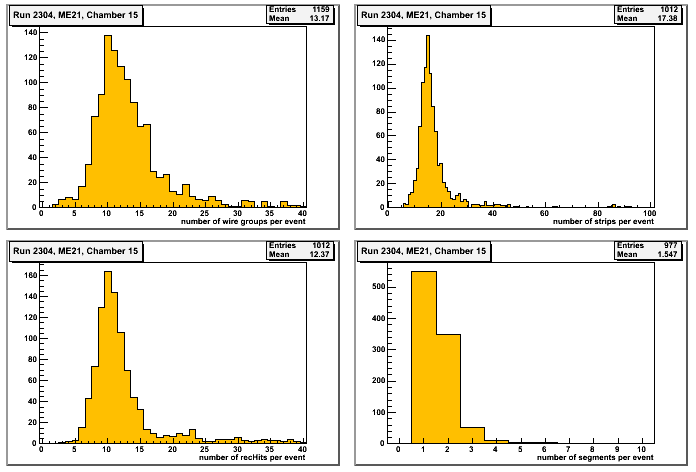

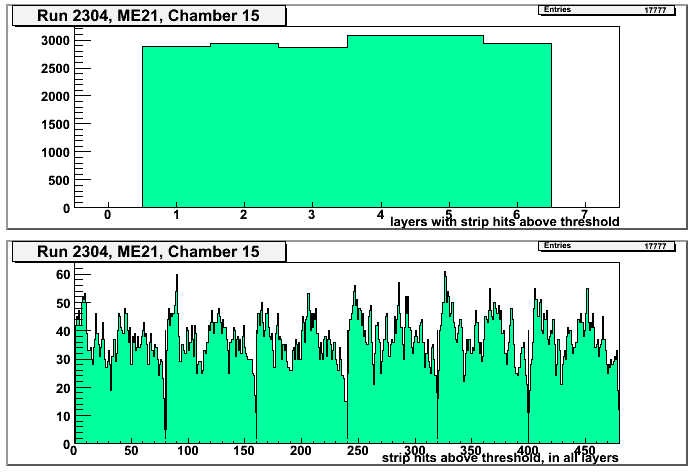

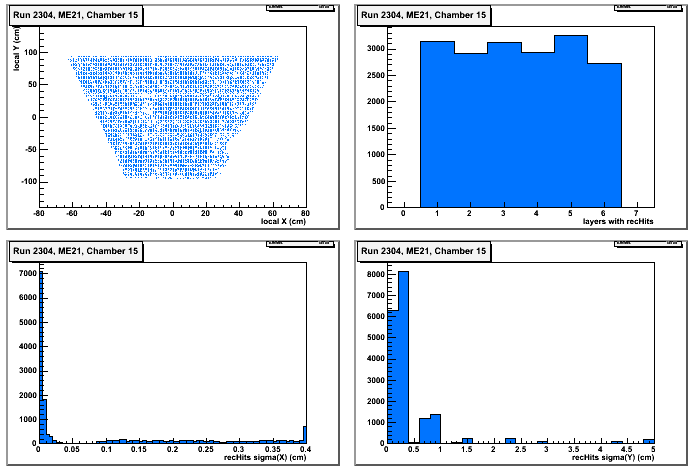

ME21 / 15	multiplicities   wire hits   strip hits   recHits   segments	Long tail in N rechits. Again, layer 1 suppressed?

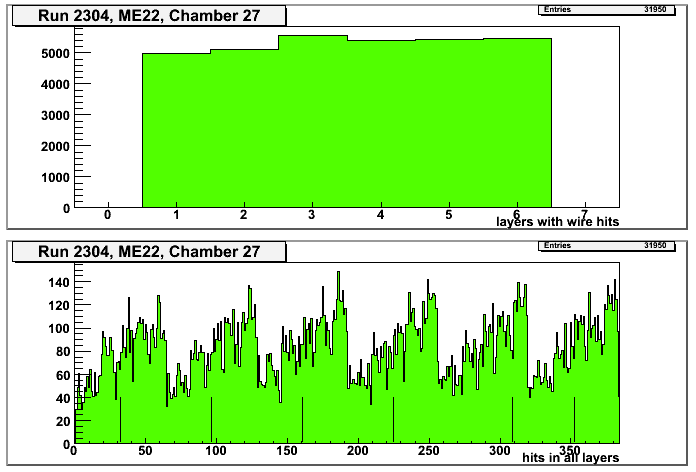

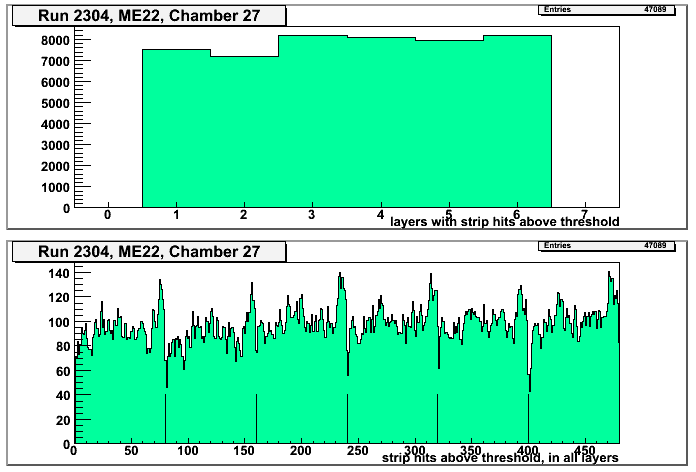

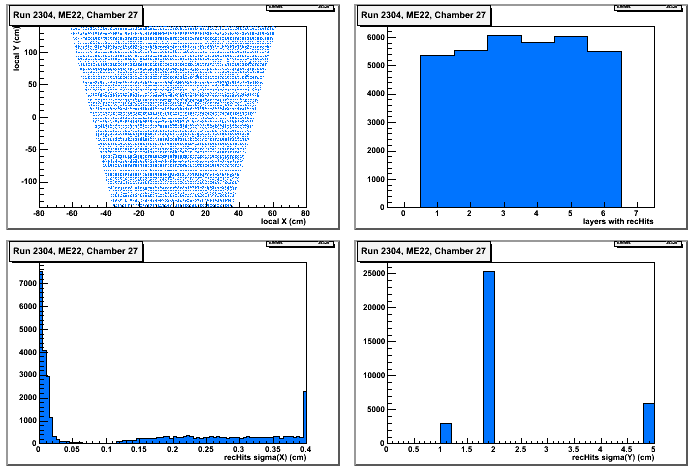

ME22 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

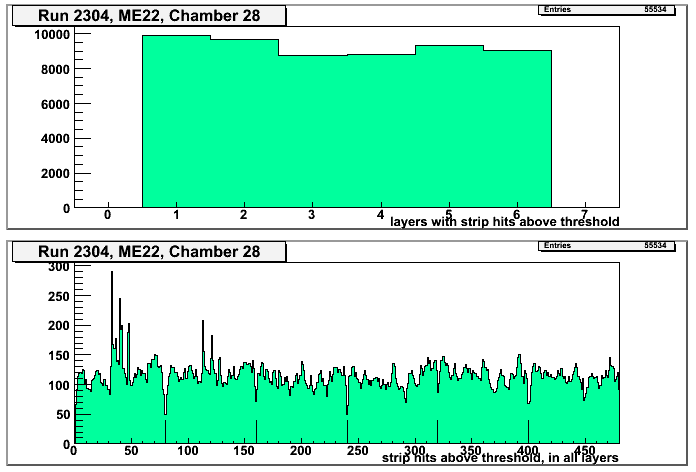

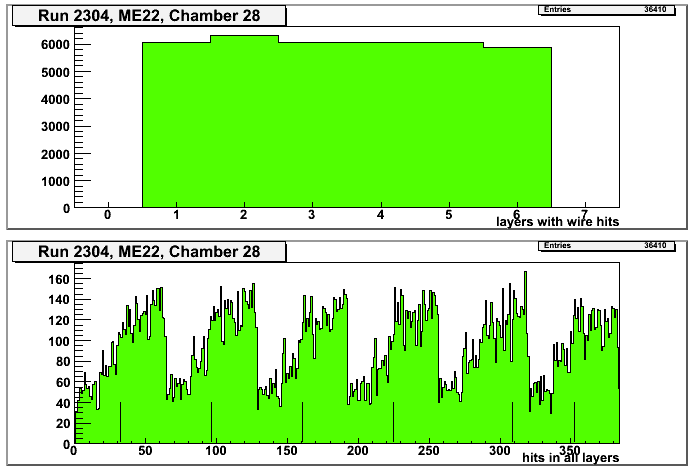

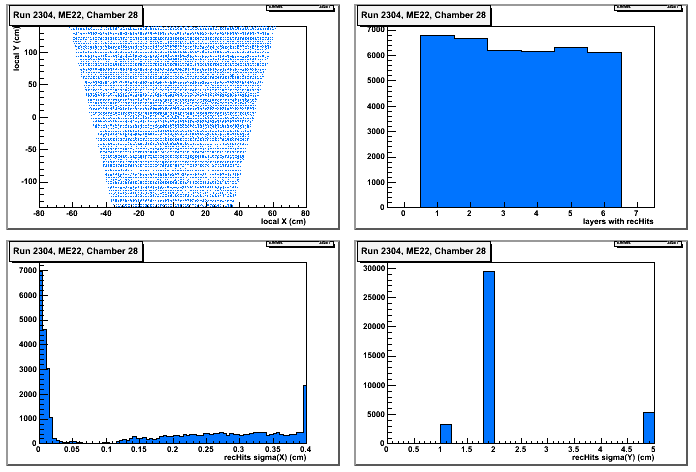

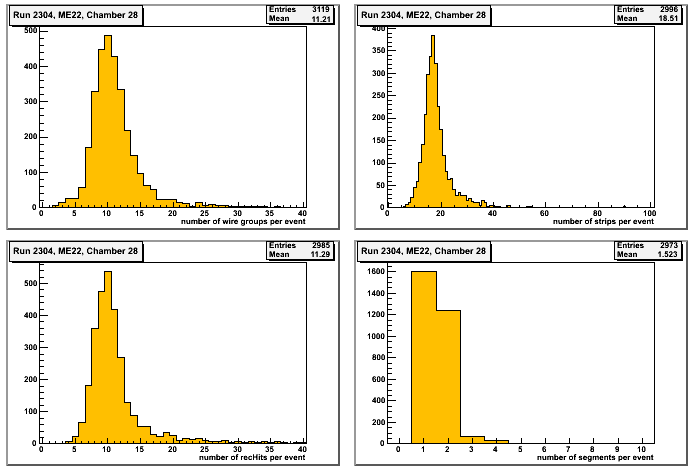

ME22 / 28	multiplicities   wire hits   strip hits   recHits   segments	some noisy strip channels in layers 1&2

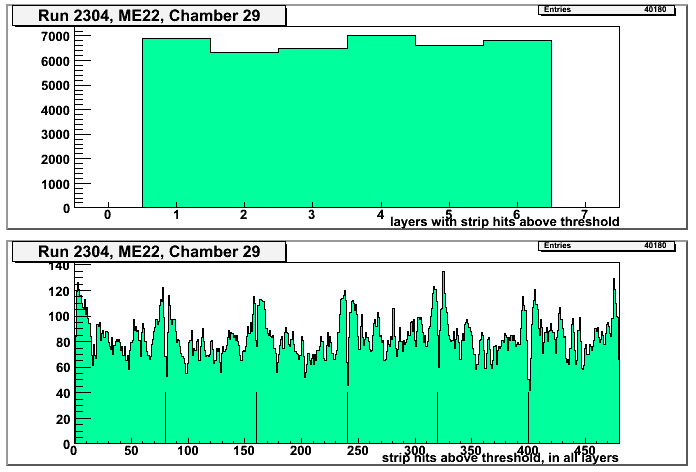

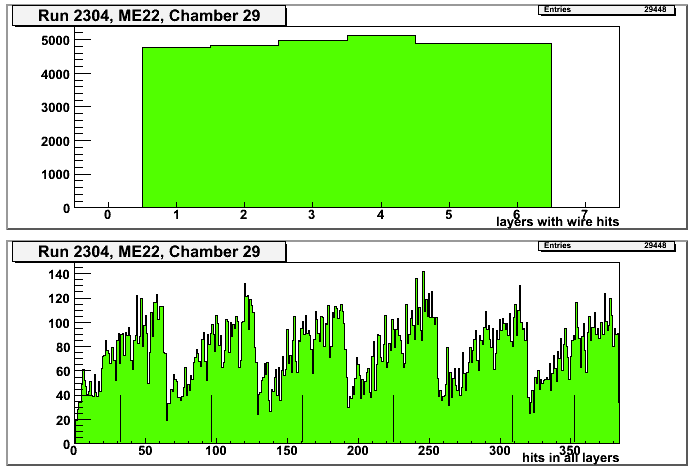

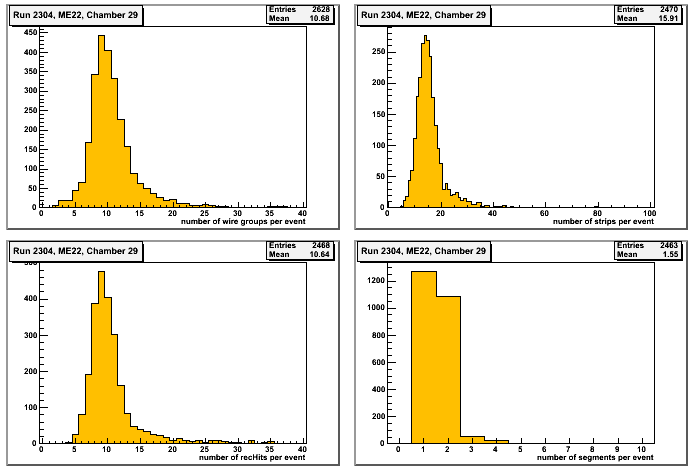

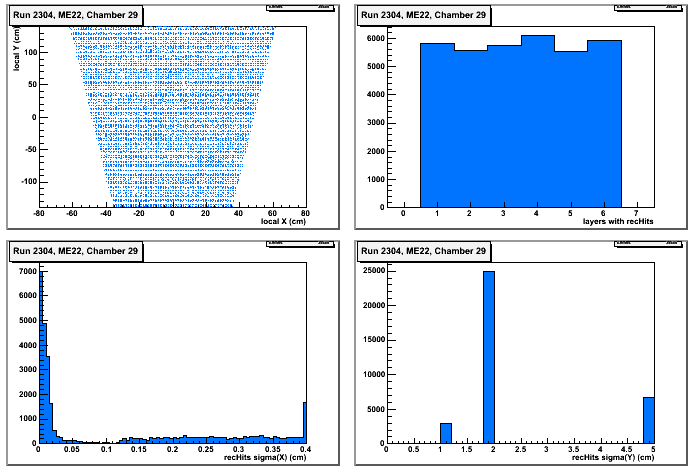

ME22 / 29	multiplicities   wire hits   strip hits   recHits   segments	OK

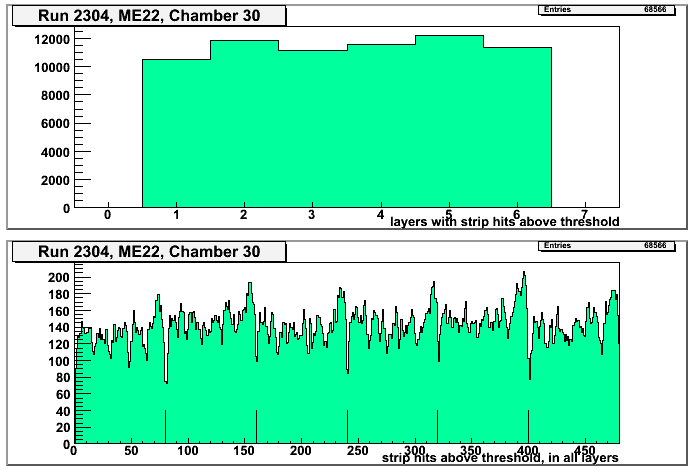

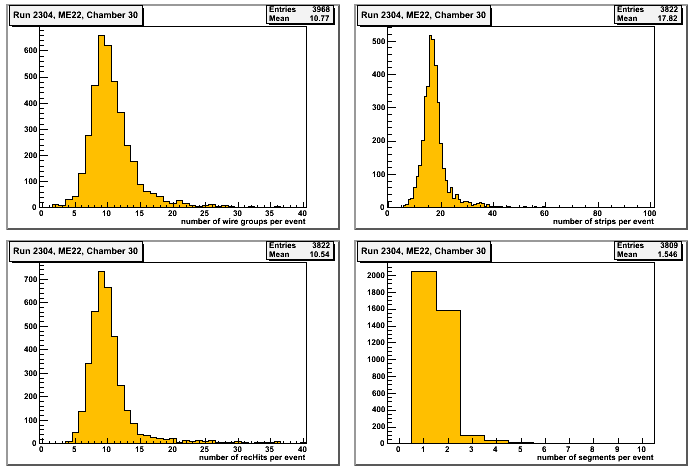

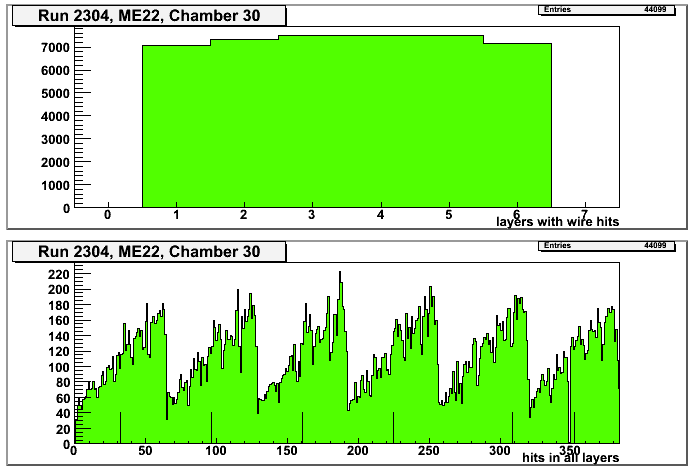

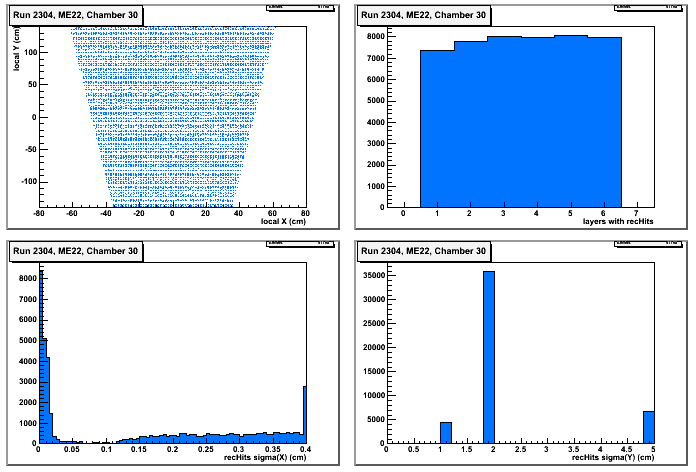

ME22 / 30	multiplicities   wire hits   strip hits   recHits   segments	one dead wire in layer 5 toothy distribution in strips

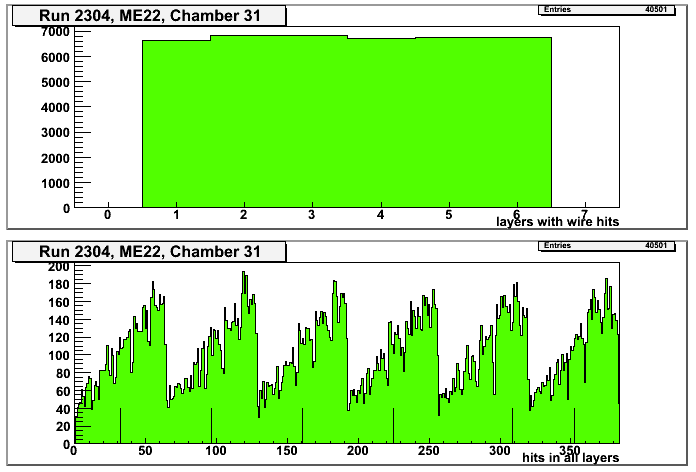

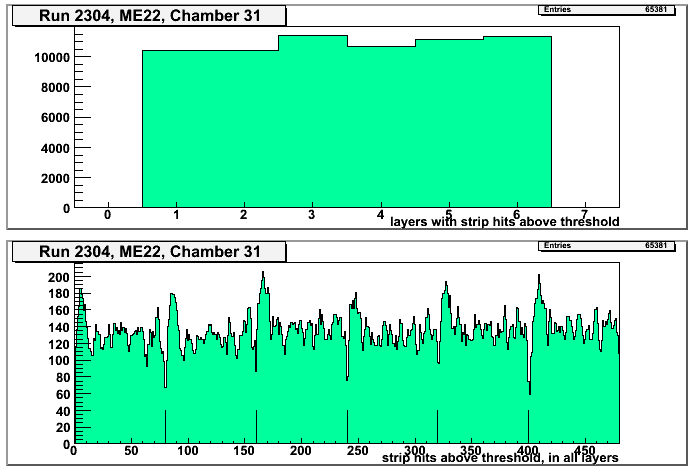

ME22 / 31	multiplicities   wire hits   strip hits   recHits   segments	OK

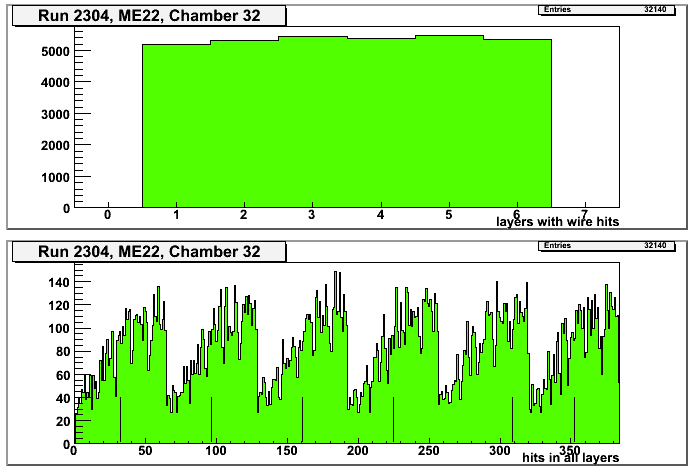

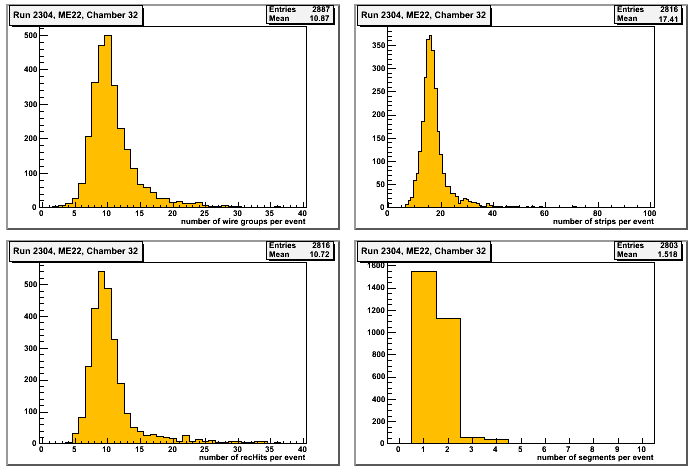

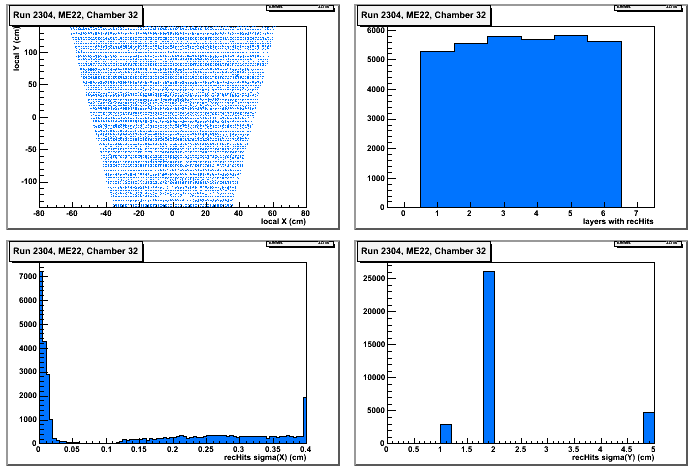

ME22 / 32	multiplicities   wire hits   strip hits   recHits   segments	OK

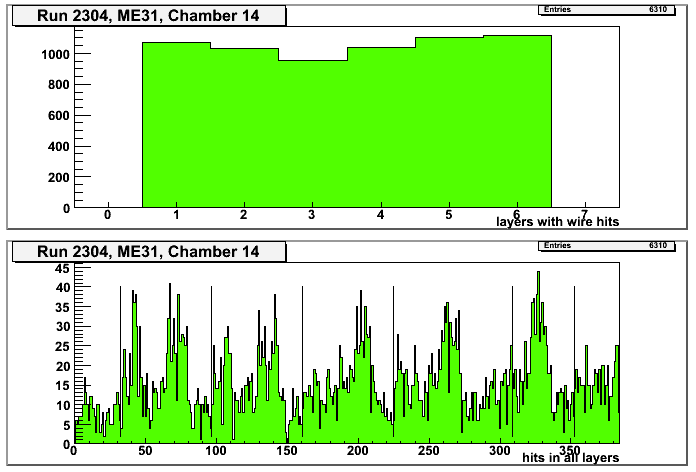

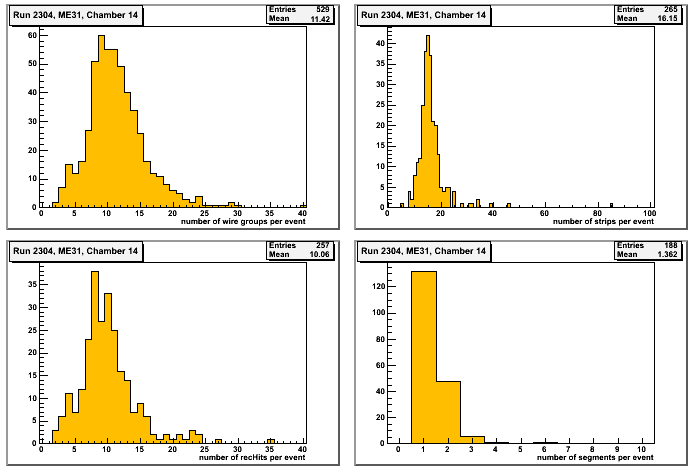

ME31 / 14	multiplicities   wire hits   strip hits   recHits   segments	"OK"

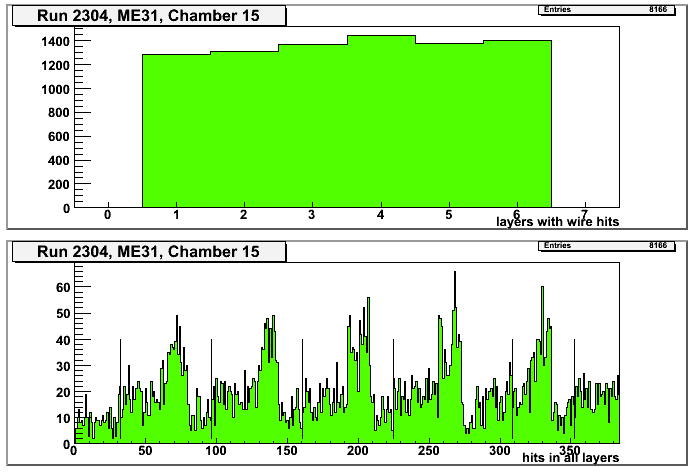

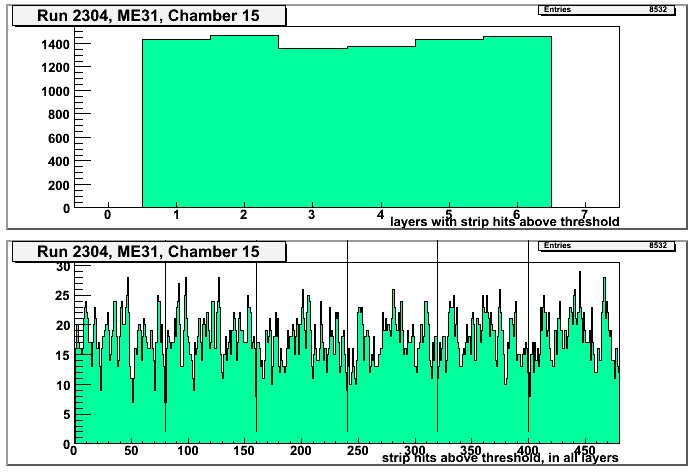

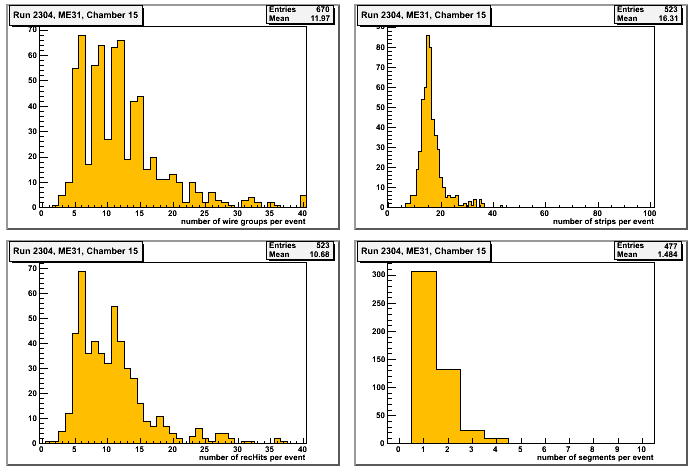

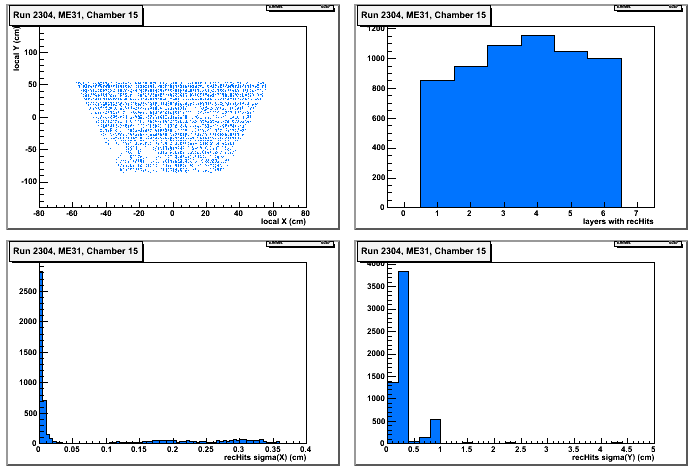

ME31 / 15	multiplicities   wire hits   strip hits   recHits   segments	Odd distribution for N wire groups. Cross-talk??

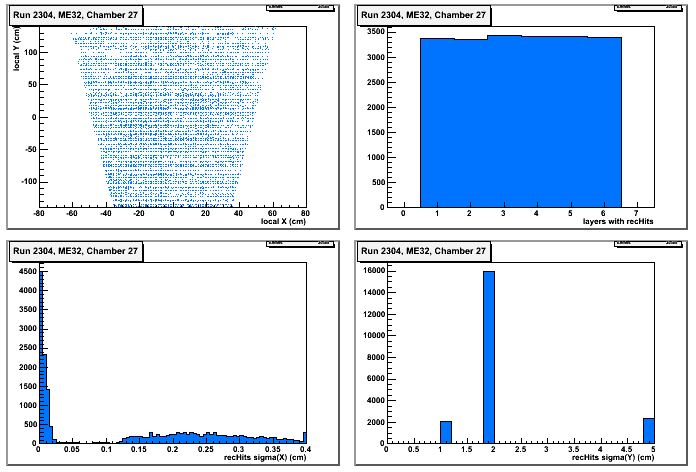

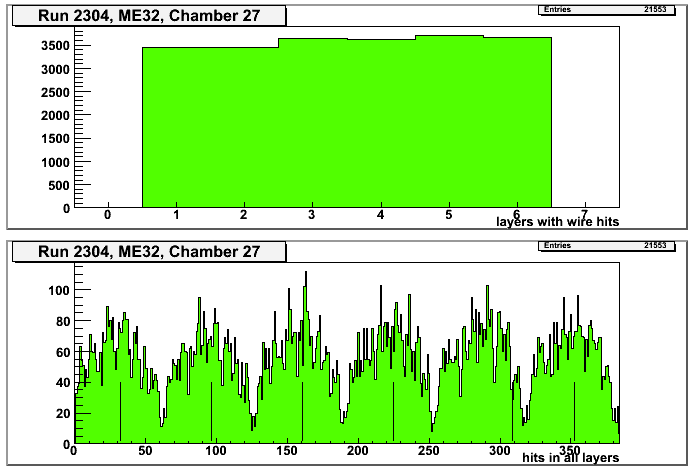

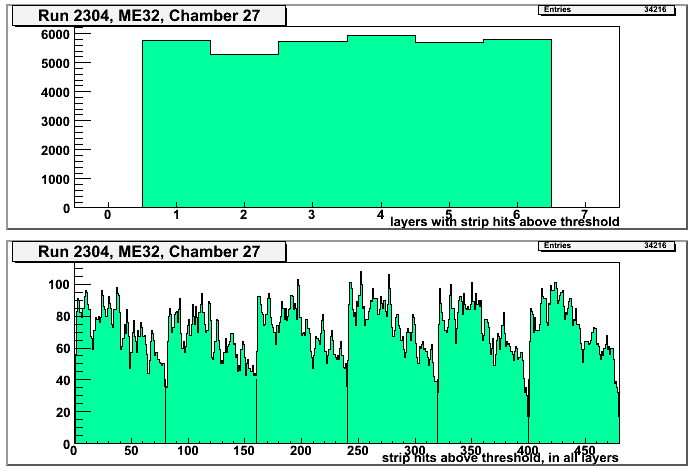

ME32 / 27	multiplicities   wire hits   strip hits   recHits   segments	OK

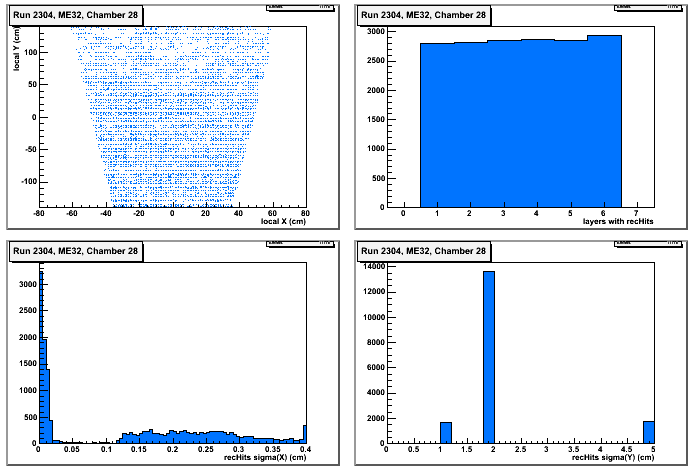

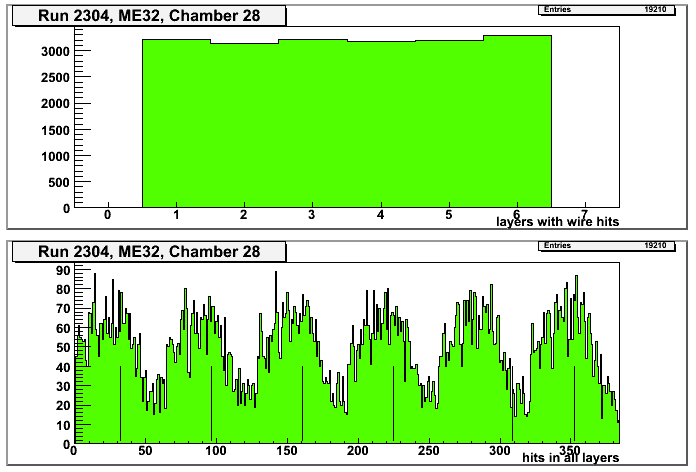

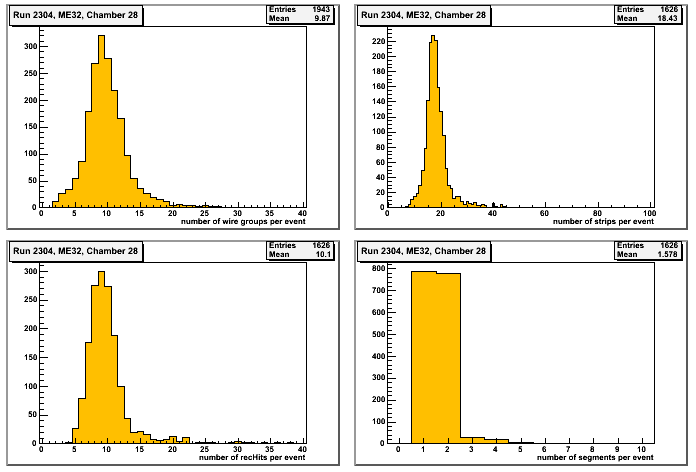

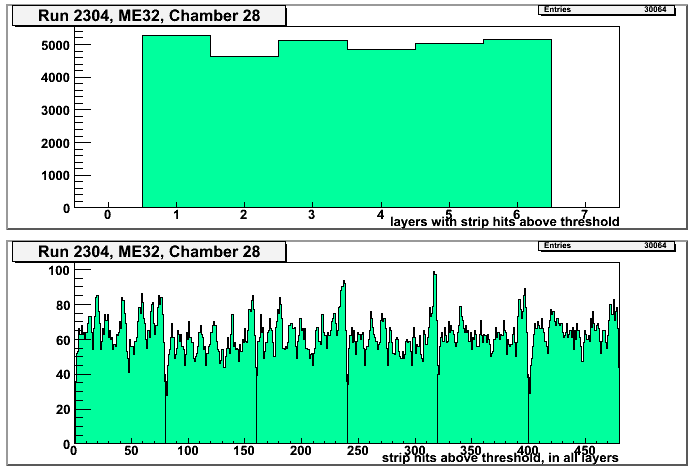

ME32 / 28	multiplicities   wire hits   strip hits   recHits   segments	strip hit distribution is toothy

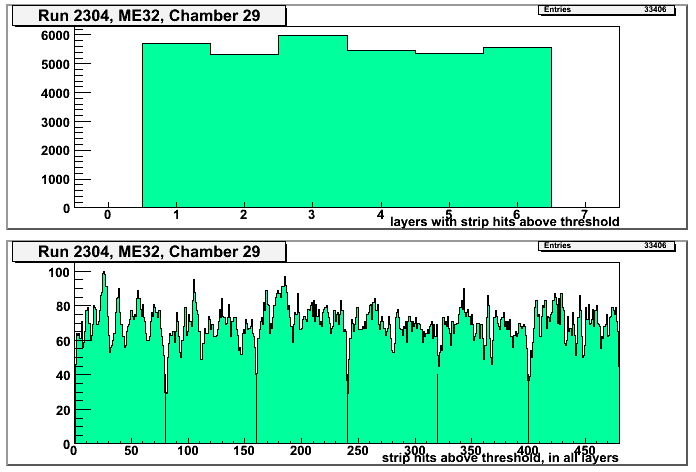

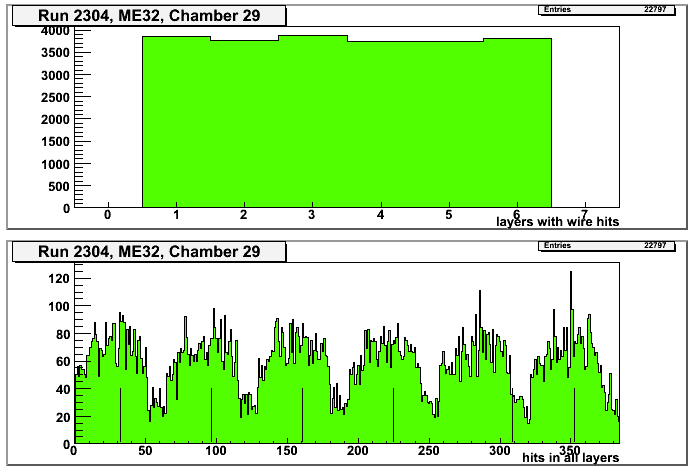

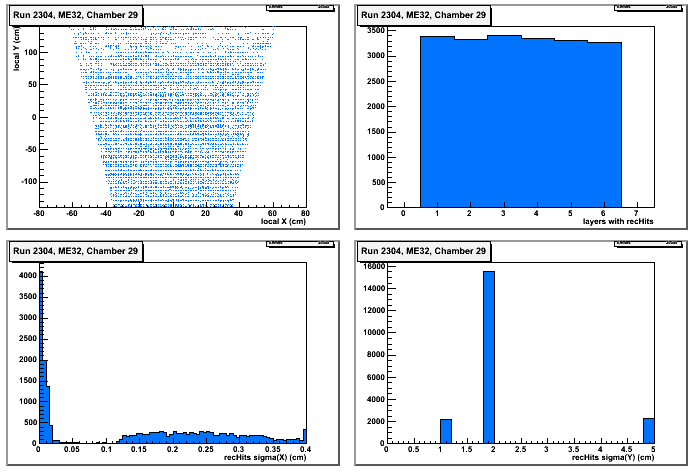

ME32 / 29	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

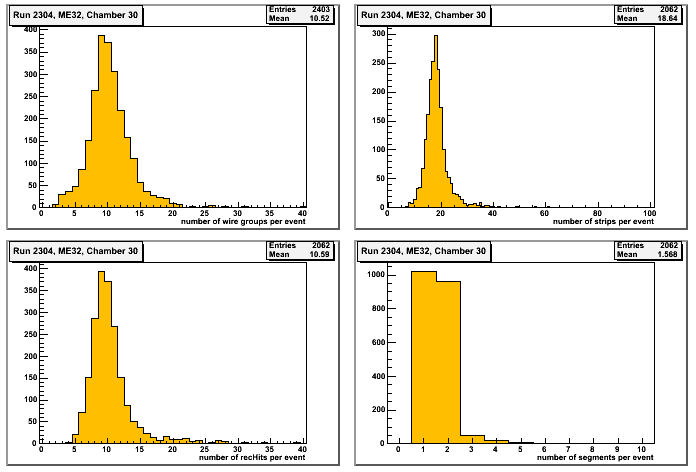

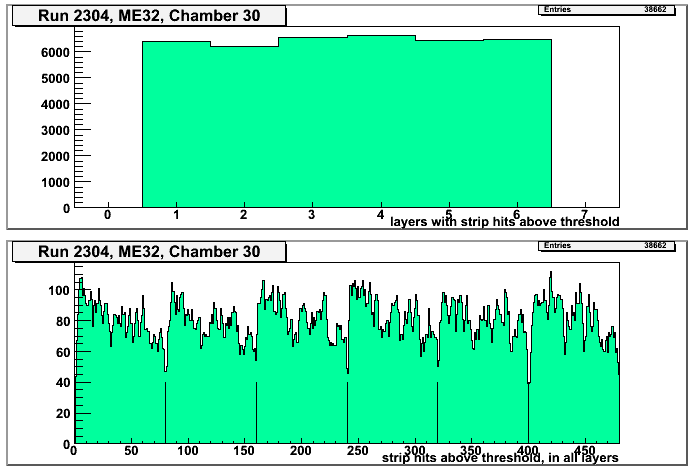

ME32 / 30	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"

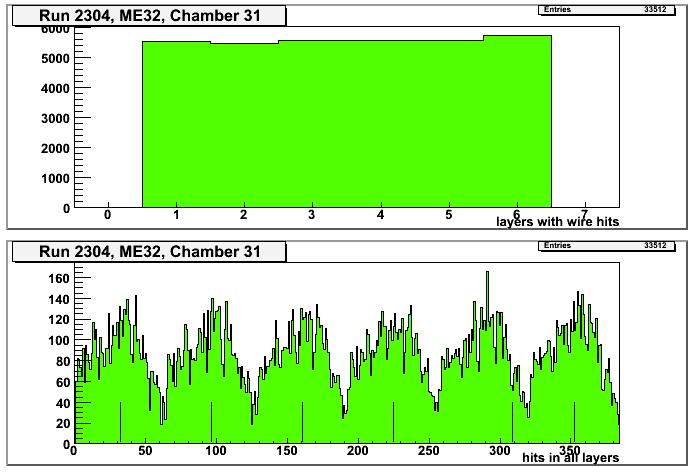

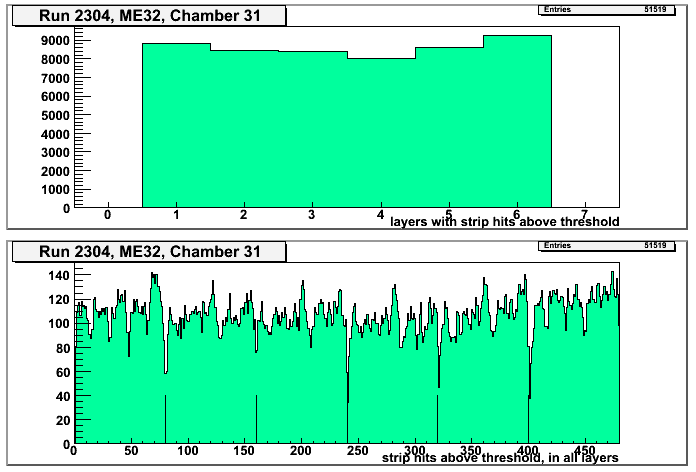

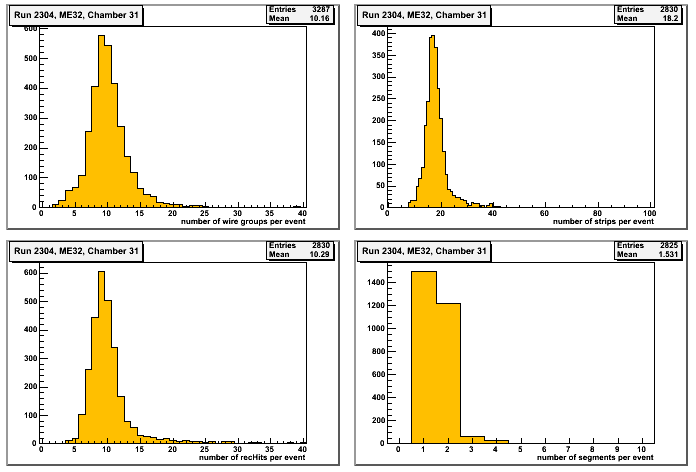

ME32 / 31	multiplicities   wire hits   strip hits   recHits   segments	strip hits distribution is "toothy"
