MTCC Monitoring Plots

Click on the run number to get the plots.

run number	date	comment
2596	`27-Aug, 15:42`	All three stations. B on.
2567	`26-Aug, 17:36`	All three stations. B on.
2426	`21-Aug, 10:50`	All three stations.
2335	`16-Aug, 19:46`	All three station. New firmware fixes important problem!
2304	`14-Aug, 20:21`	no station 1
2274	`11-Aug, 15:55`	no station 1
2255	`11-Aug, 8:28`	restricted range of chambers
2251	`10-Aug, 21:30`	restricted range of chambers

"Analysis" Plots from MTCC Data

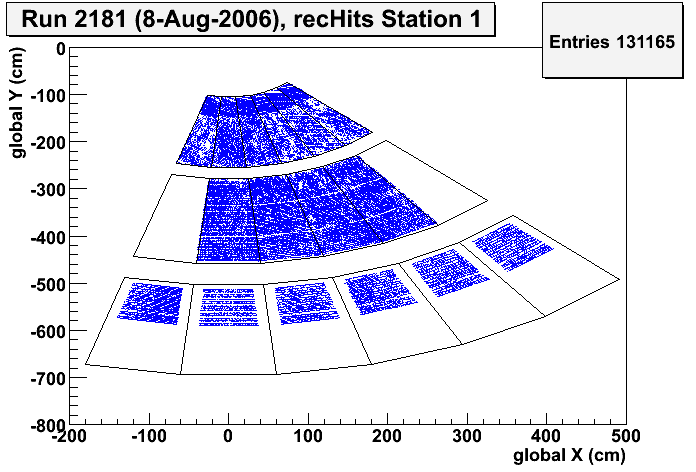

	gif ps	Run 2181 (8-Aug-2006), Station 1, after all fixes prepared for 0_9_0 were incorportated.
	gif	Run 2181 (8-Aug-2006) The `ESR` code which shows overall occupancies. The point is that we see some recHits and segments in stations 2 and 3, although the trigger included only station 1.
	gif	This plot compares the Time Bins registered for all wires in six chamber taken from runs 1503 (30-June) and 2181 (8-Aug). A clear shift is visible in every channel.
